ZyWALL USG Support Notes
79
All contents copyright (c) 2010 ZyXEL Communications Corporation.

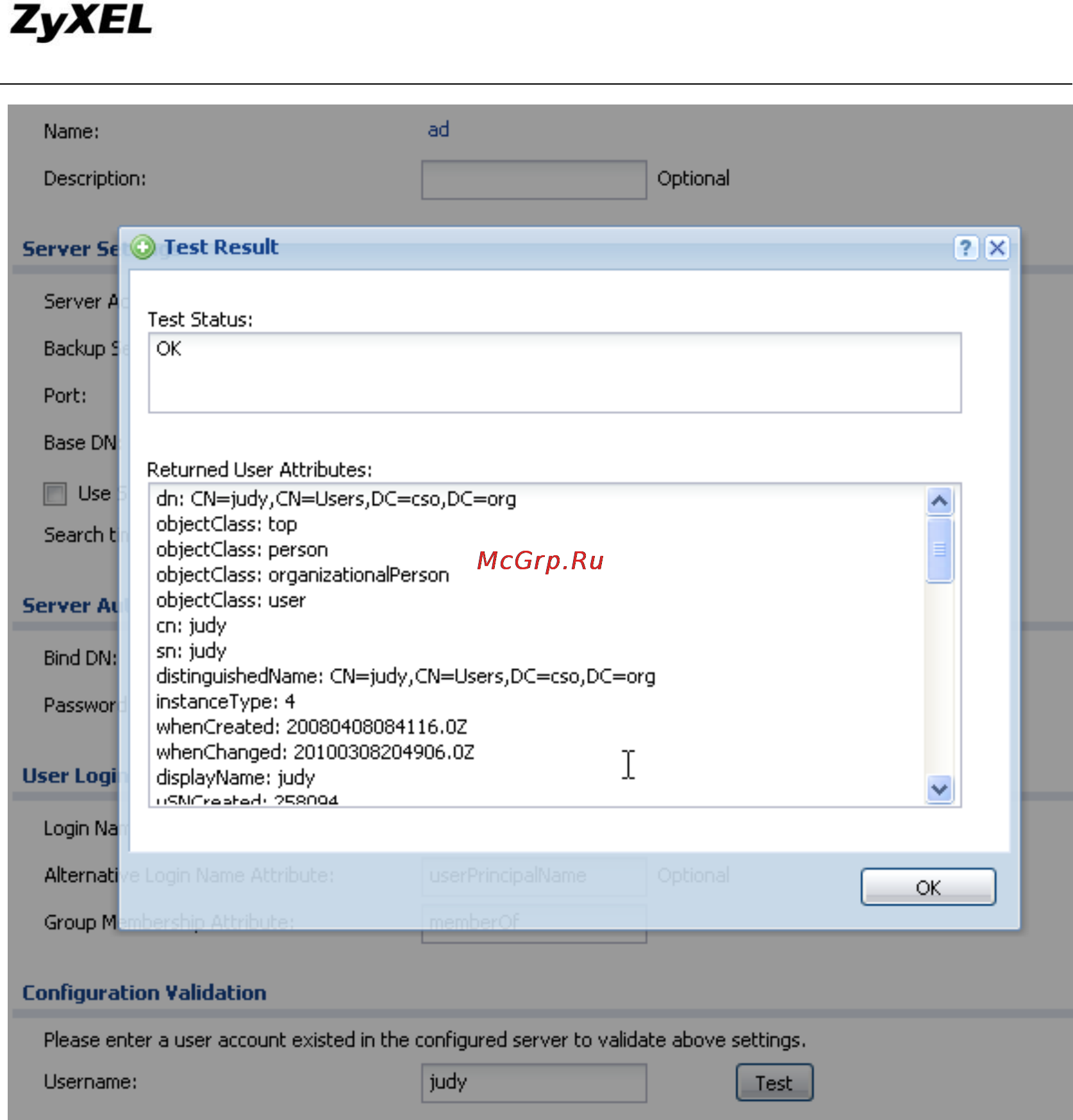

If you have entered the attribute “Alternative Login Name Attribute” as shown in the
picture below, you can also verify by user mail address.
