ZyWALL USG Support Notes
71
All contents copyright (c) 2010 ZyXEL Communications Corporation.

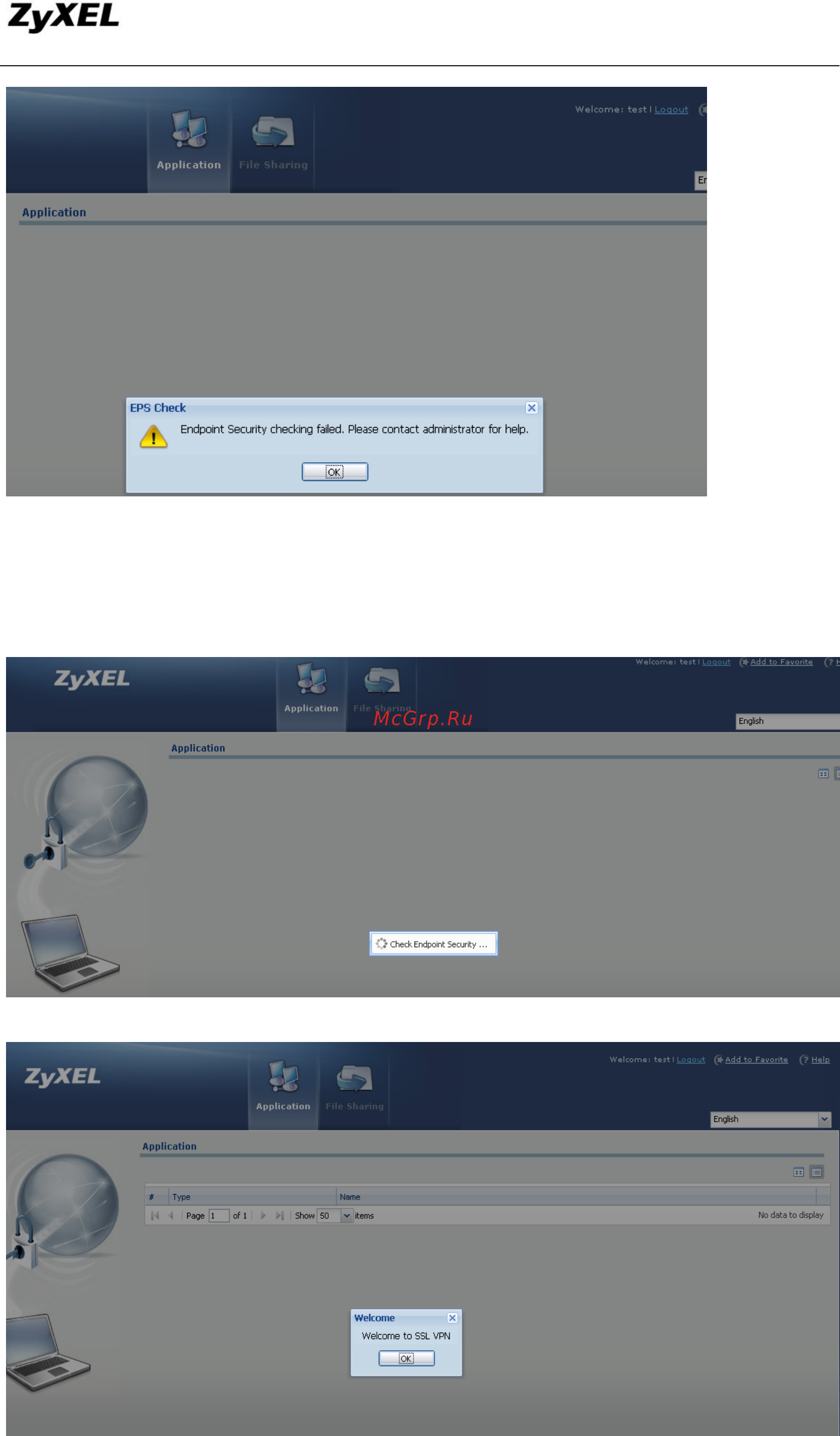

If the SSL VPN client complies with the EPS criterion, it will pass the EPS check and
SSL VPN tunnel will be established.
