1.5. Setting up Many One to One NAT
Many One to One NAT rule equals setting up the corresponding number of One to
One NAT rules.
The number of IP addresses in the original IP Subnet/Range should equal number of
IP addresses in the Mapped Subnet/Range. The first IP in the original range will be
mapped to the first IP in the mapped range, the second IP in the original range will be
mapped to the second IP in the mapped rang… and so on.
1.5.1. Application Scenario

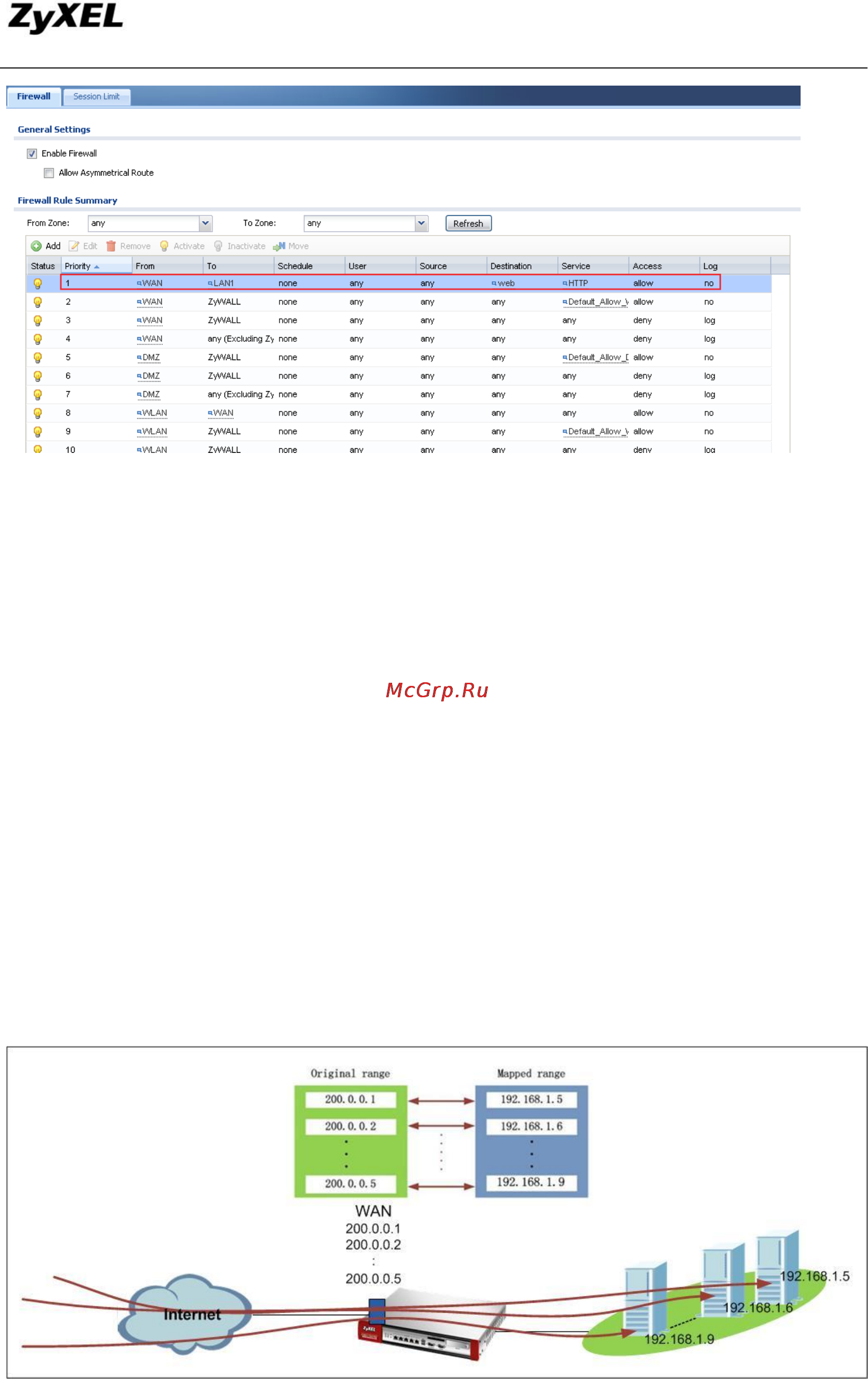

The scenario above requires that a range of global addresses are mapped to a range of
local addresses with the same number of addresses.
