ZyWALL USG Support Notes
122
All contents copyright (c) 2010 ZyXEL Communications Corporation.

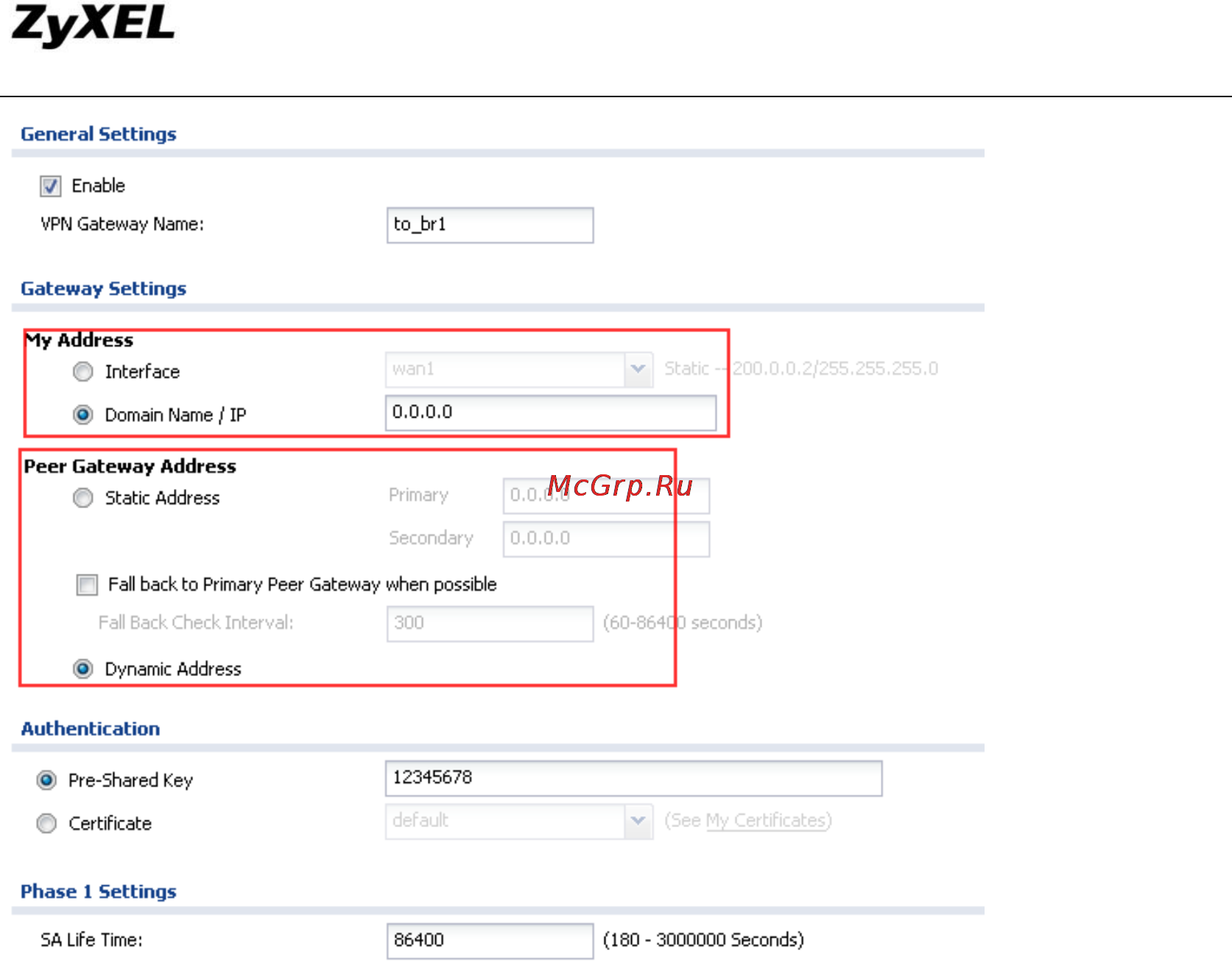

Step4. Go to Configuraiton > VPN > IPSec VPN > VPN Connnection, add phase2
rule.
Local policy: Local LAN1 subnet (192.168.1.0/24)
Remote policy: Br1 local subnet (192.168.4.0/24)
