ZyWALL USG Support Notes
85
All contents copyright (c) 2010 ZyXEL Communications Corporation.

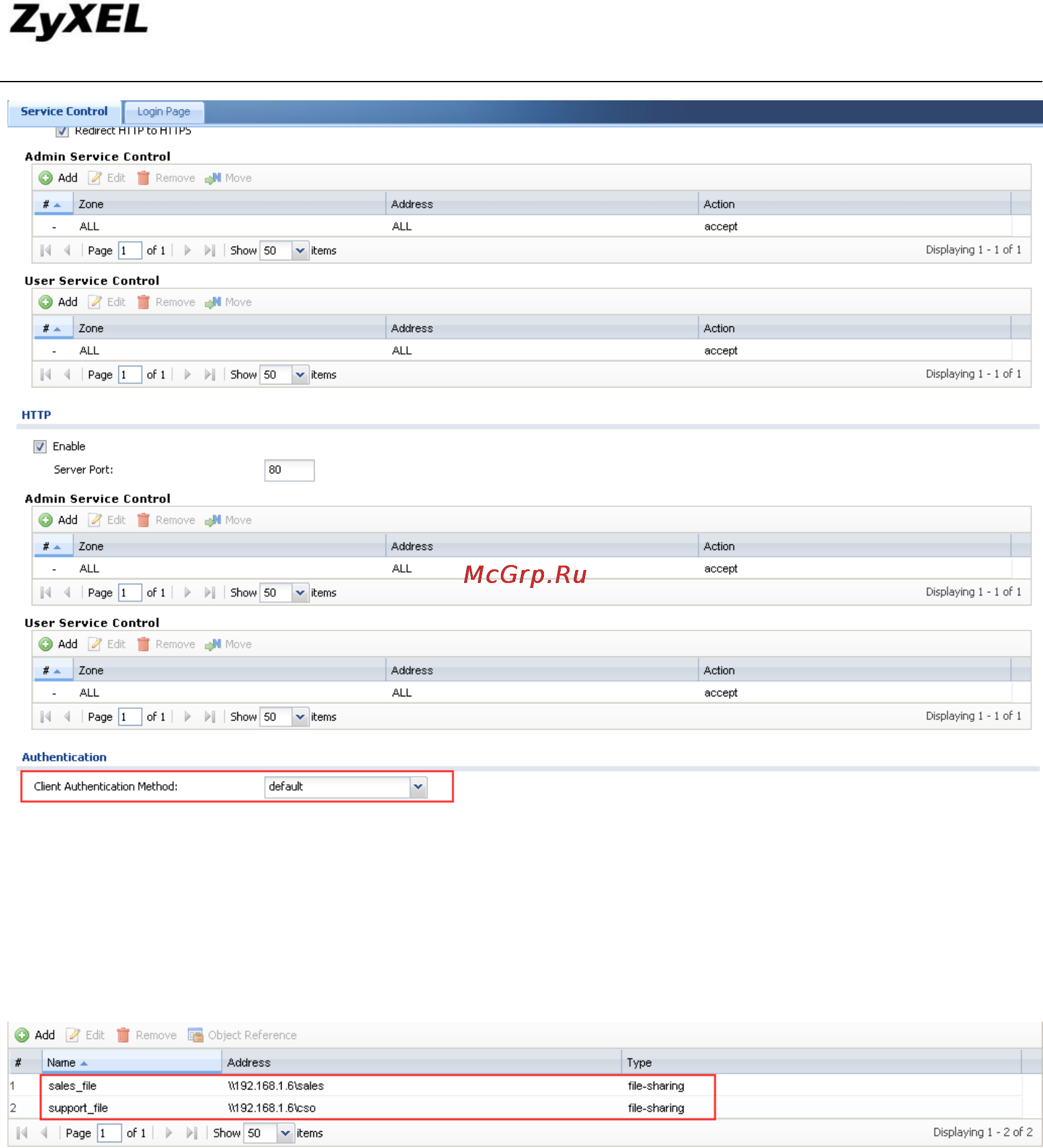

Step6. Go to Configuration > Object > SSL Application, add applications for the
support and sales group.
Step7. Go to Configuration > Object > Endpoint Security, add EPS policy for
checking the sales group.
