ZyWALL USG Support Notes
23
All contents copyright (c) 2010 ZyXEL Communications Corporation.
1.2.2.2. Default SNAT

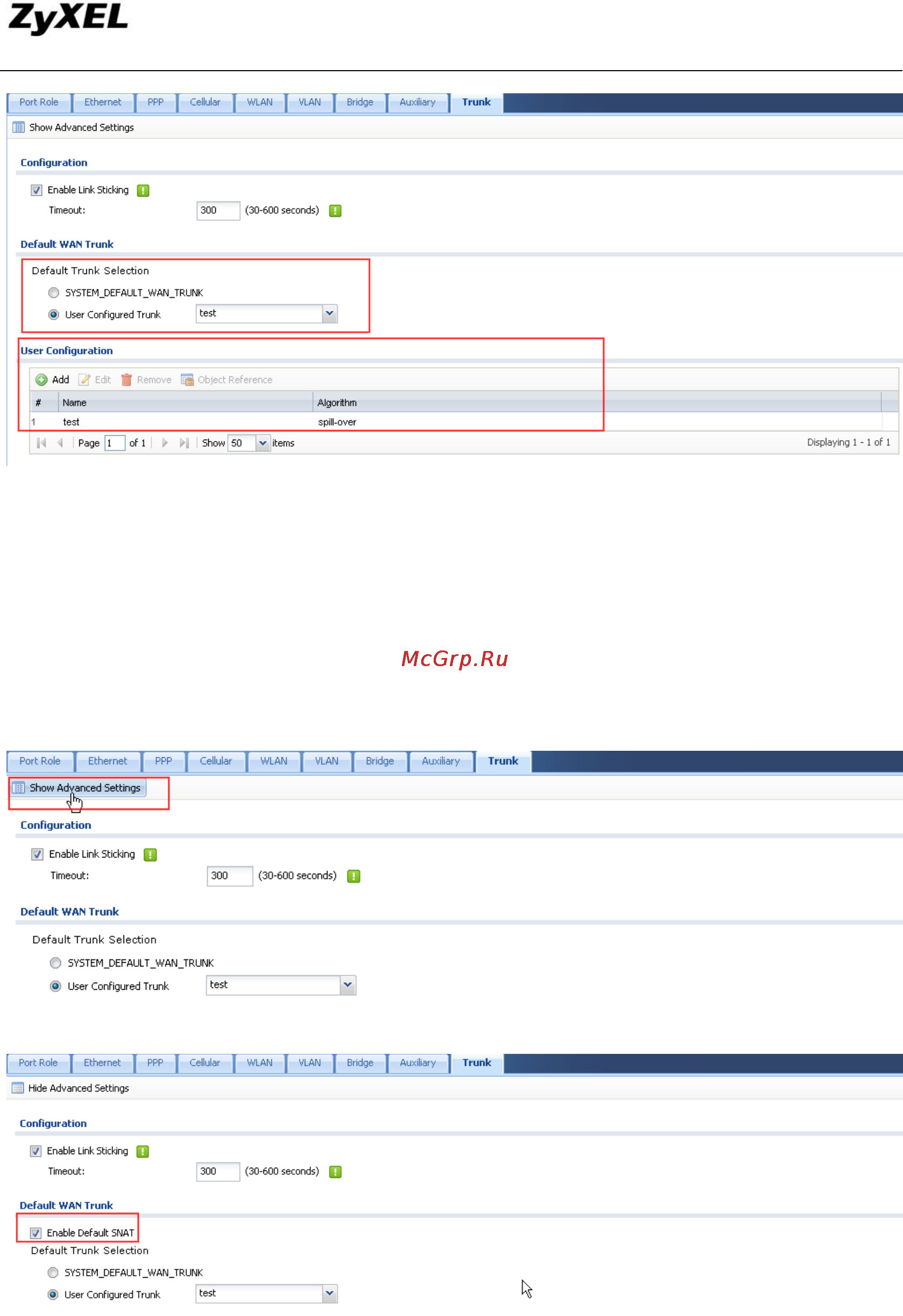

Default SNAT is enabled by default. Click Show Advanced Settings, the Default
SNAT setting will show. Default SNAT will map traffic‟s source address to the
outgoing interface address in the default WAN Trunk.
1.2.2.3. Using Default WAN Trunk and Default SNAT
When USG receives traffic from an internal interface, and there‟s no direct route,
policy route, one to one NAT route, static route or dynamic route applicable to this
traffic, USG will send it out from the Default WAN Trunk.
