ZyWALL USG Support Notes
42
All contents copyright (c) 2010 ZyXEL Communications Corporation.

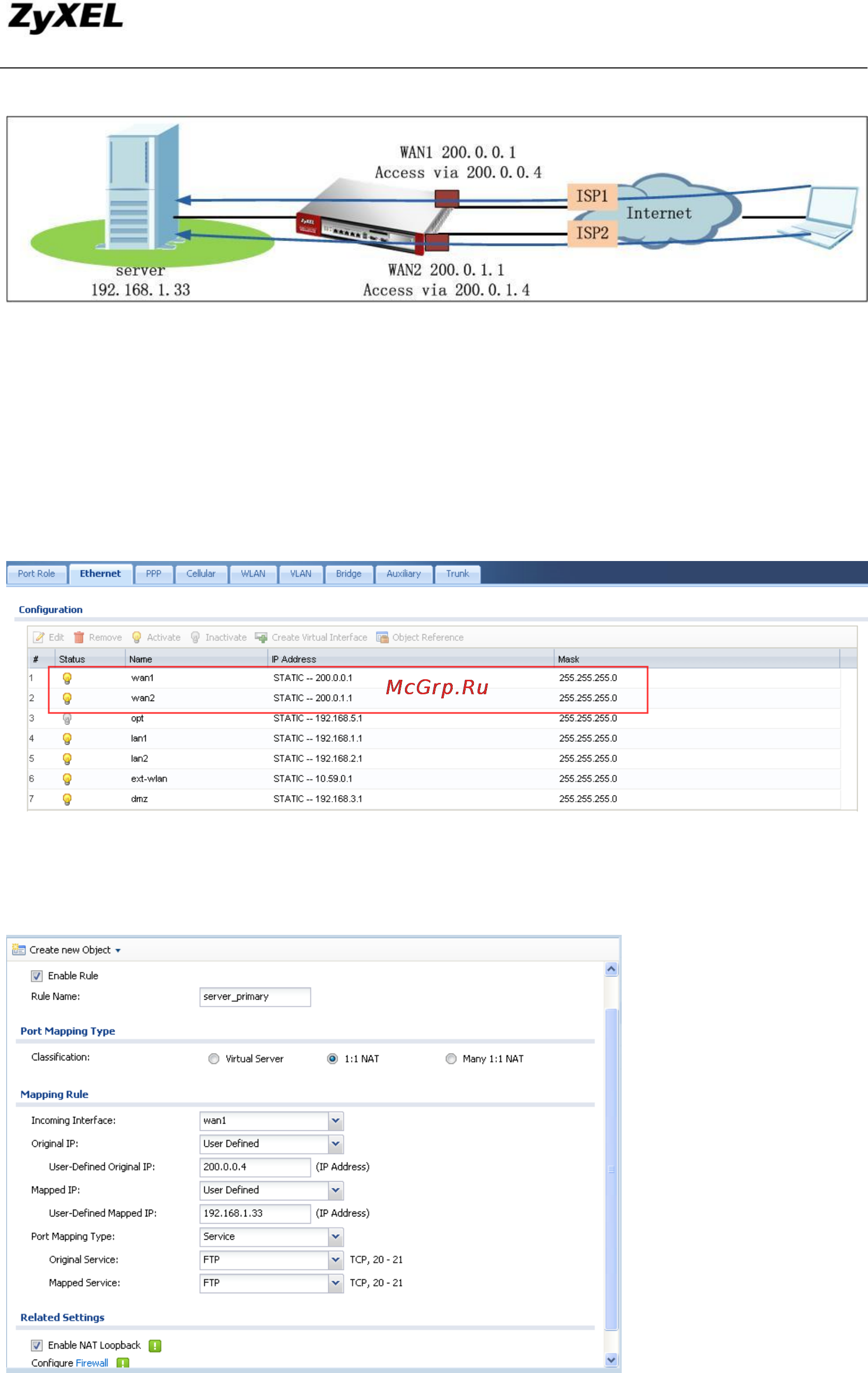

1.10.2. Configuration Steps
Step1. Configure WAN1 and WAN2 IP addresses from Configuration > Network >
Interface > Ethernet.
Step2. Go to Configuration > Network > NAT. Add two NAT 1:1 rules.
