ZyWALL USG Support Notes
120
All contents copyright (c) 2010 ZyXEL Communications Corporation.
directly to HQ again.
4.2.2. Configuration Steps

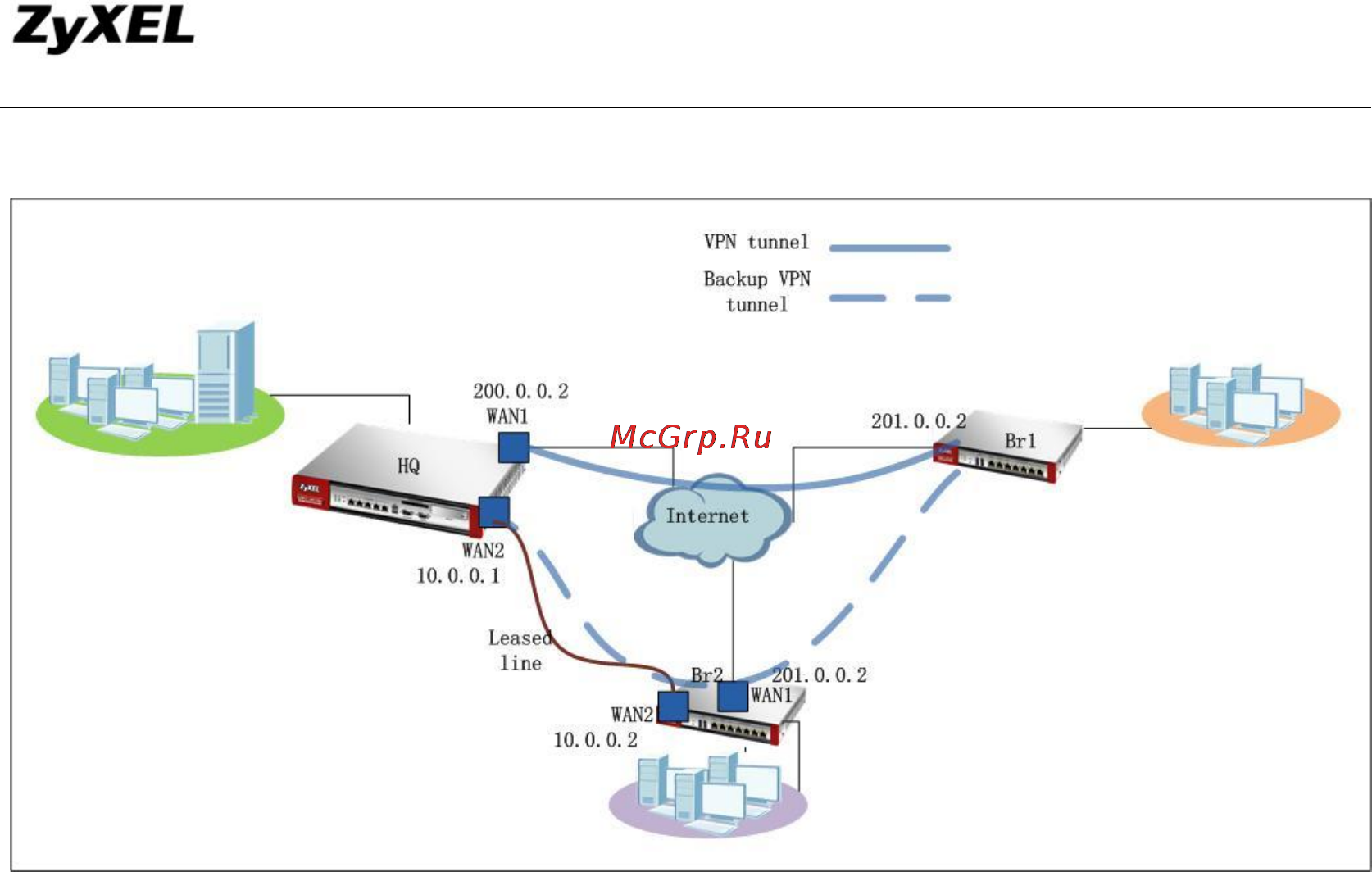

IP information of HQ and branch offices:
HQ USG:
WAN1 IP: 200.0.0.2
WAN2 IP: 10.0.0.1
Local subnet: 192.168.1.0/24
Br1 USG:
WAN IP: 201.0.0.2
Local subnet: 192.168.4.0/24
Br2 USG:
WAN1 IP: 201.0.0.2
WAN2 IP: 10.0.0.2
Local subnet: 192.168.5.0/24
On HQ USG:
Step1. Go to Monitor > System Status > Interface Status, check the IP address
information for later use in IPSec configuration.
