ZyWALL USG Support Notes
89
All contents copyright (c) 2010 ZyXEL Communications Corporation.
2.4.3. Scenario Verification

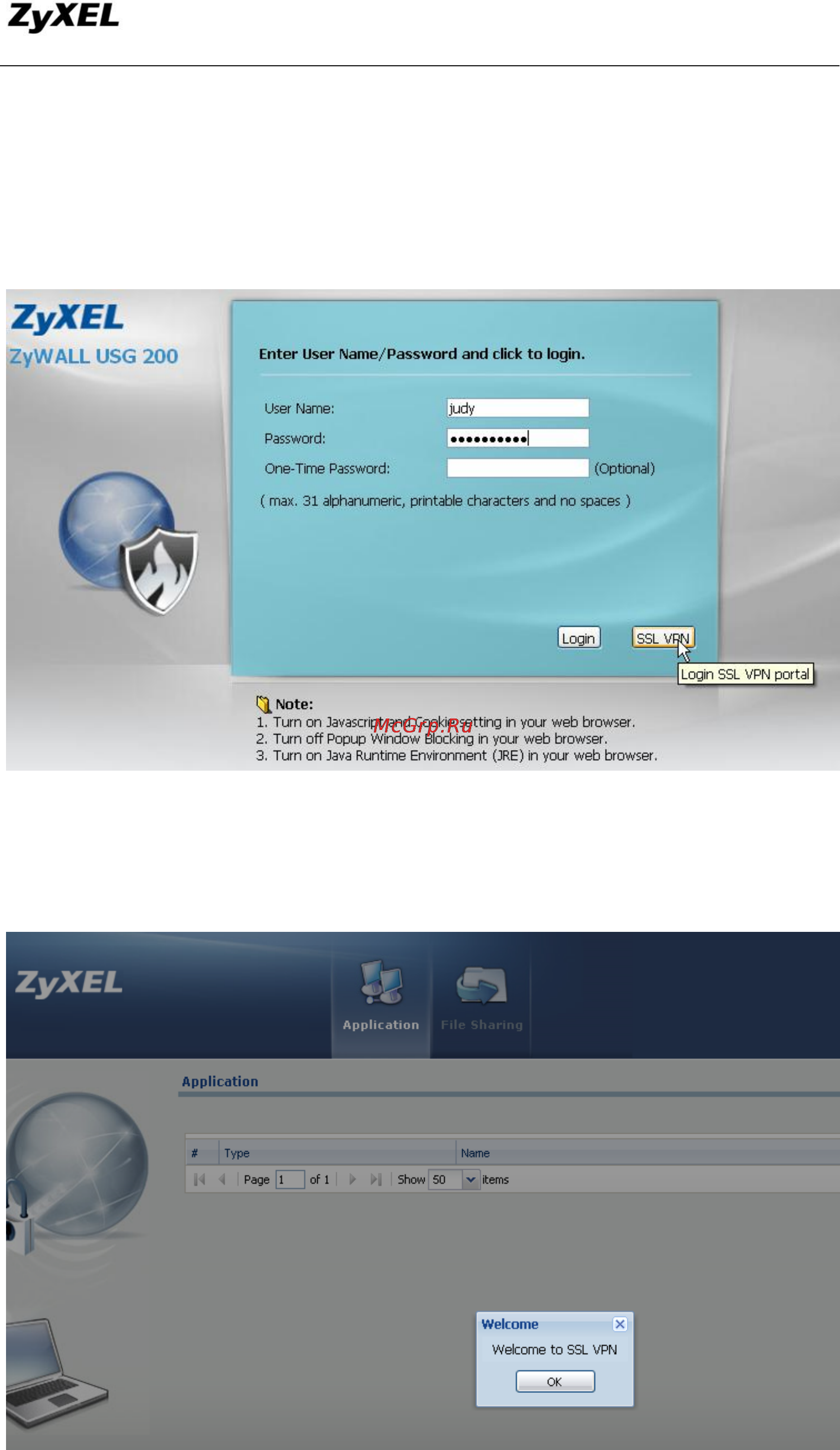

Open the USG login page. Make sure Java is installed and enabled on your browser.
Use a user “judy” in the group “cso” to login SSL VPN.
SSL VPN is established, and you can see the fileshare on the portal is for the group
AD user “cso”.
