ZyWALL USG Support Notes
107
All contents copyright (c) 2010 ZyXEL Communications Corporation.

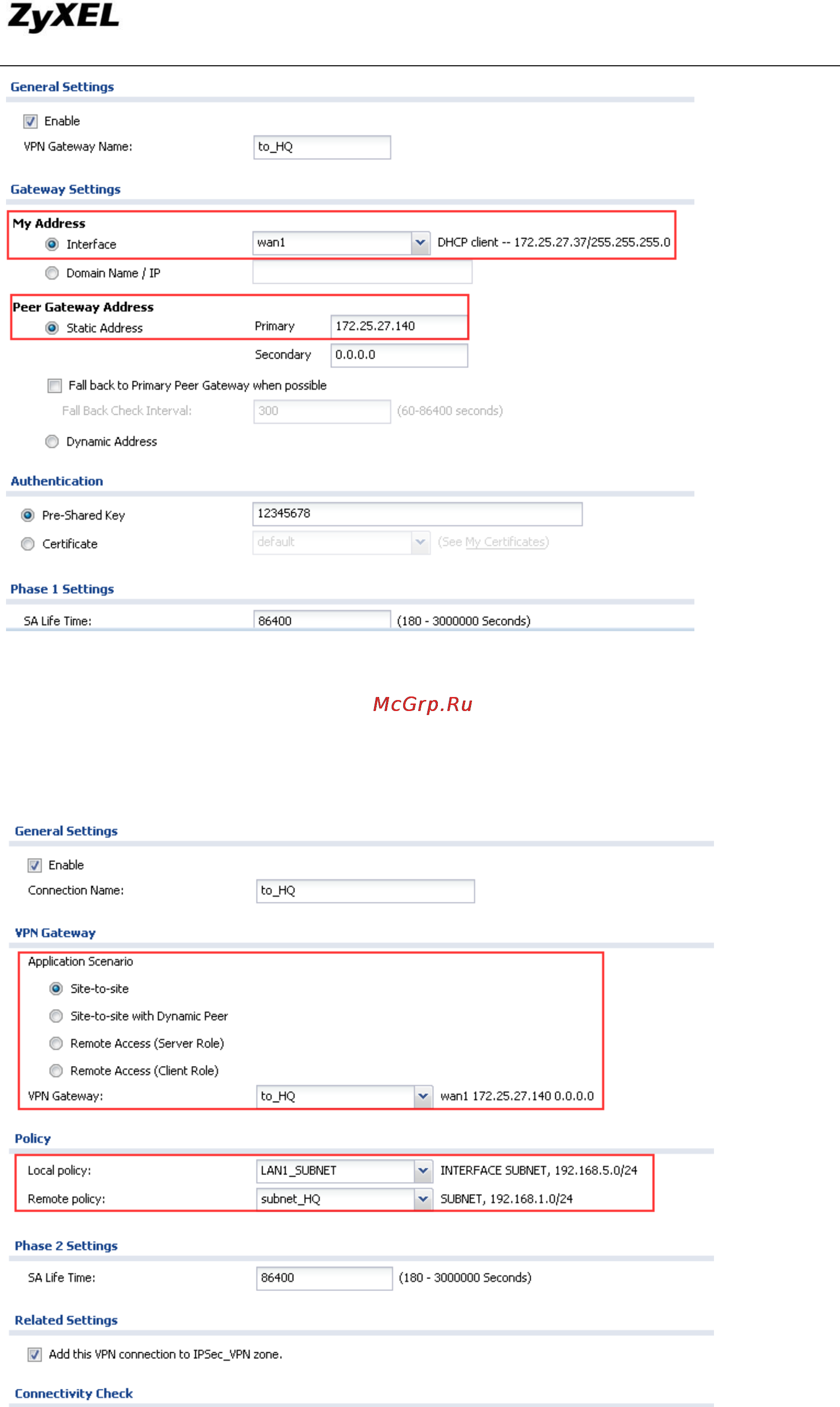

Step4. Go to Configuration > VPN > IPSec VPN > VPN Connection, add VPN
phase2 rule to build tunnel to HQ.
Local policy: local LAN1 subnet (192.168.5.0/24)
Remote policy: HQ local subnet (192.168.1.0/24)
