ZyWALL USG Support Notes
124
All contents copyright (c) 2010 ZyXEL Communications Corporation.

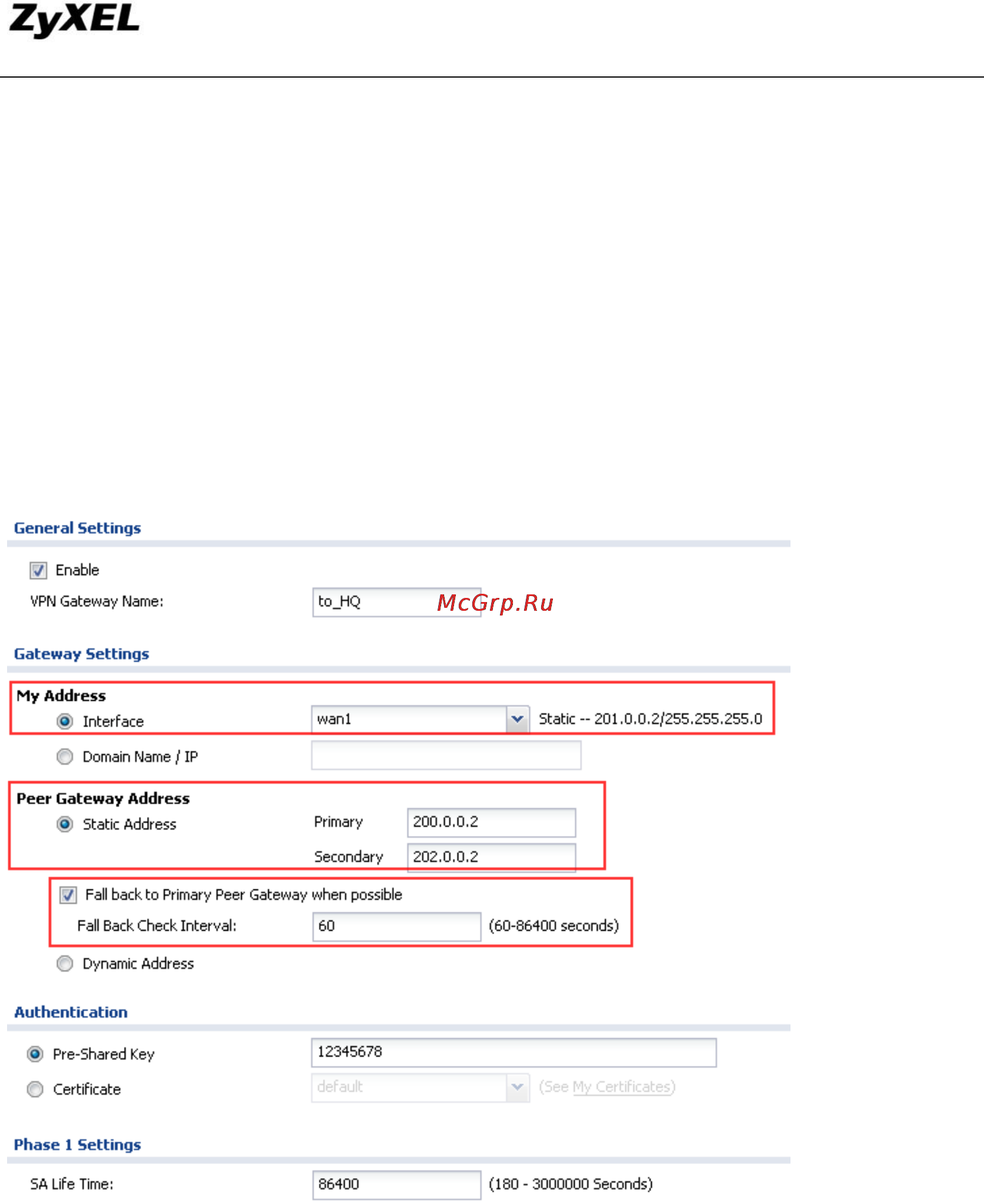

Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add phase 1 rule.
My Address: WAN IP (201.0.0.2)
Peer Gateway Address:
To deploy VPN HA, please choose Static Address.
Primary peer gateway: HQ WAN1 IP (200.0.0.2)
Secondary peer gateway: Br1 WAN1 IP (202.0.0.2)
Enable Fall Back to Primary Gateway when possible, and set a Fall Back check
interval in the range of 60s~86400s.
Step4. Go to Configuration > VPN >IPSec VPN > VPN Connection, add phase 2
VPN rule.
Local policy: Local LAN1 subnet (192.168.4.0/24)
Remote policy: HQ local subnet (192.168.1.0/24)
