ZyWALL USG Support Notes
128
All contents copyright (c) 2010 ZyXEL Communications Corporation.

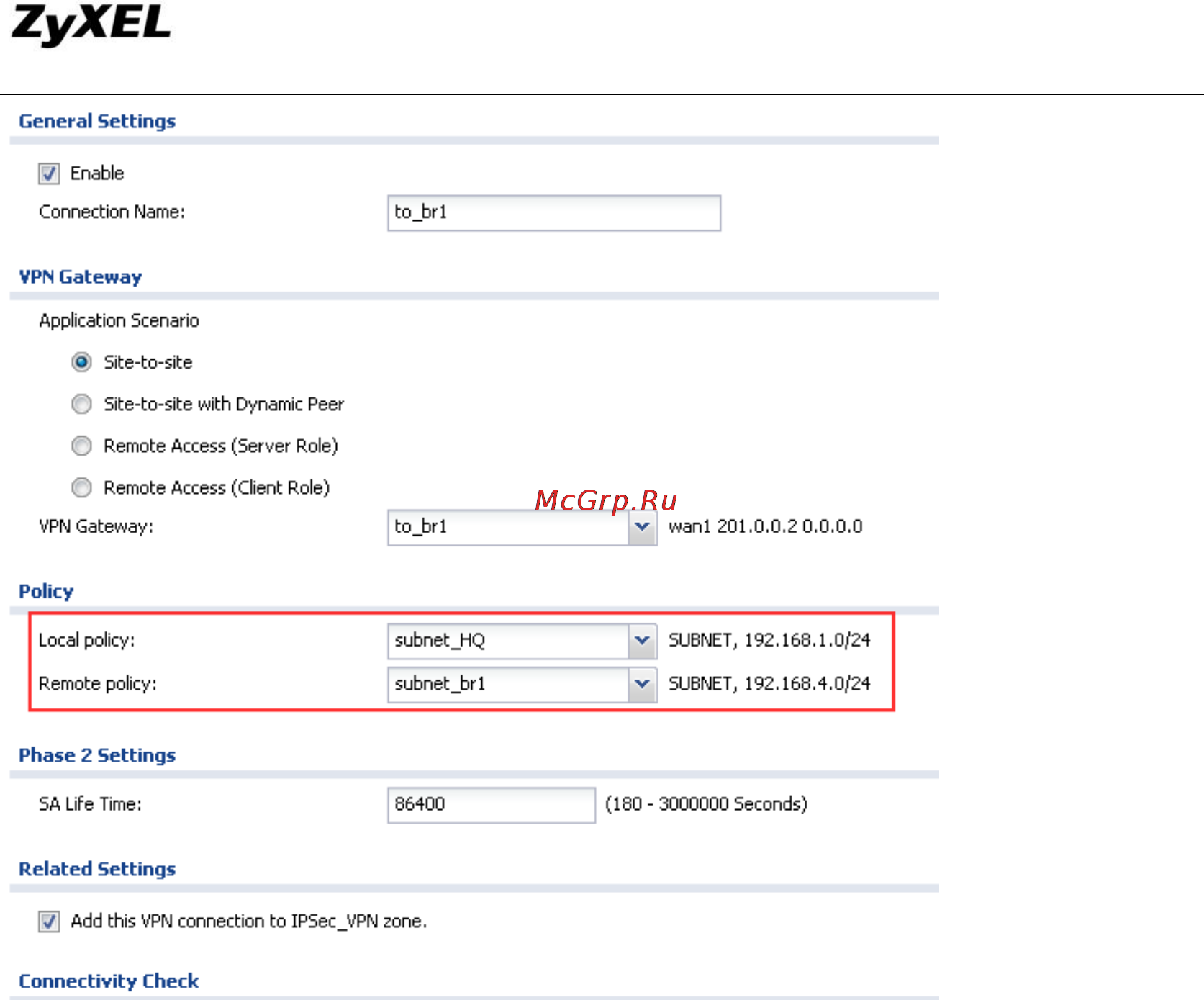

Tunnel to HQ phase2 rule:
Local policy: Br1 local subnet (192.168.4.0/24)
Remote policy: HQ local subnet (192.168.1.0/24)
