ZyWALL USG Support Notes
45
All contents copyright (c) 2010 ZyXEL Communications Corporation.

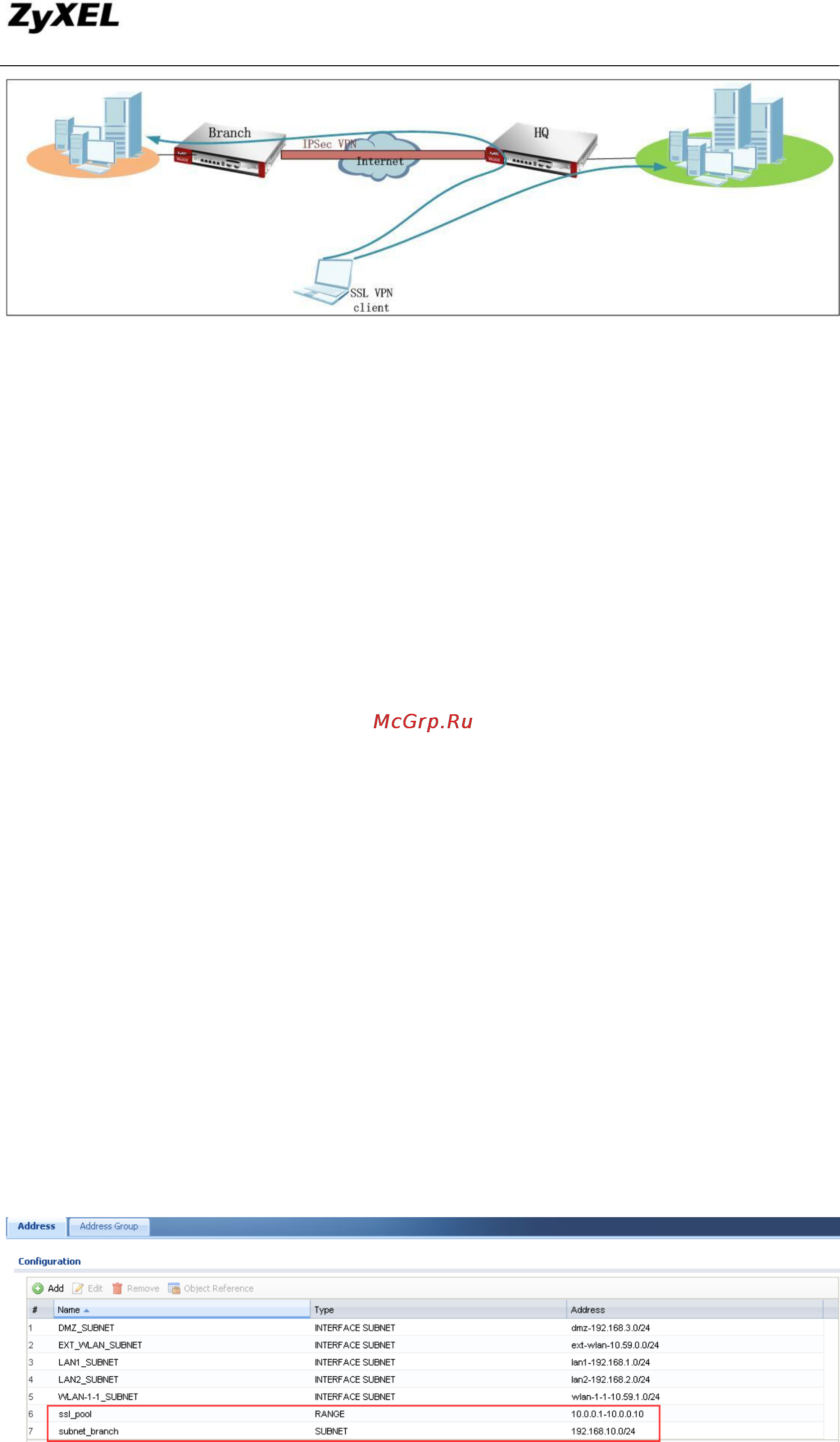

Let‟s assume the IP information is as below:
HQ office:
WAN: 172.25.27.126
LAN: 192.168.1.0/24
SSL VPN range: 10.0.0.1~10.0.0.10
Branch office:
WAN: 172.25.27.99
LAN: 192.168.10.0/24
1.11.2. Configuration Steps
Configuration varies when the branch security gateway is a USG ZyWALL and when
it‟s a ZyNOS ZyWALL (policy based). We will discuss the two situations below:
1.11.2.1. When Branch is a USG ZyWALL
On HQ USG:
Step1. Go to Configuration > Object > Address, add two address objects. One is
ssl_pool (range 10.0.0.1~10.0.0.10), the other is branch office subnet
subnet_branch(192.168.10.0/24)
