ZyWALL USG Support Notes
53
All contents copyright (c) 2010 ZyXEL Communications Corporation.

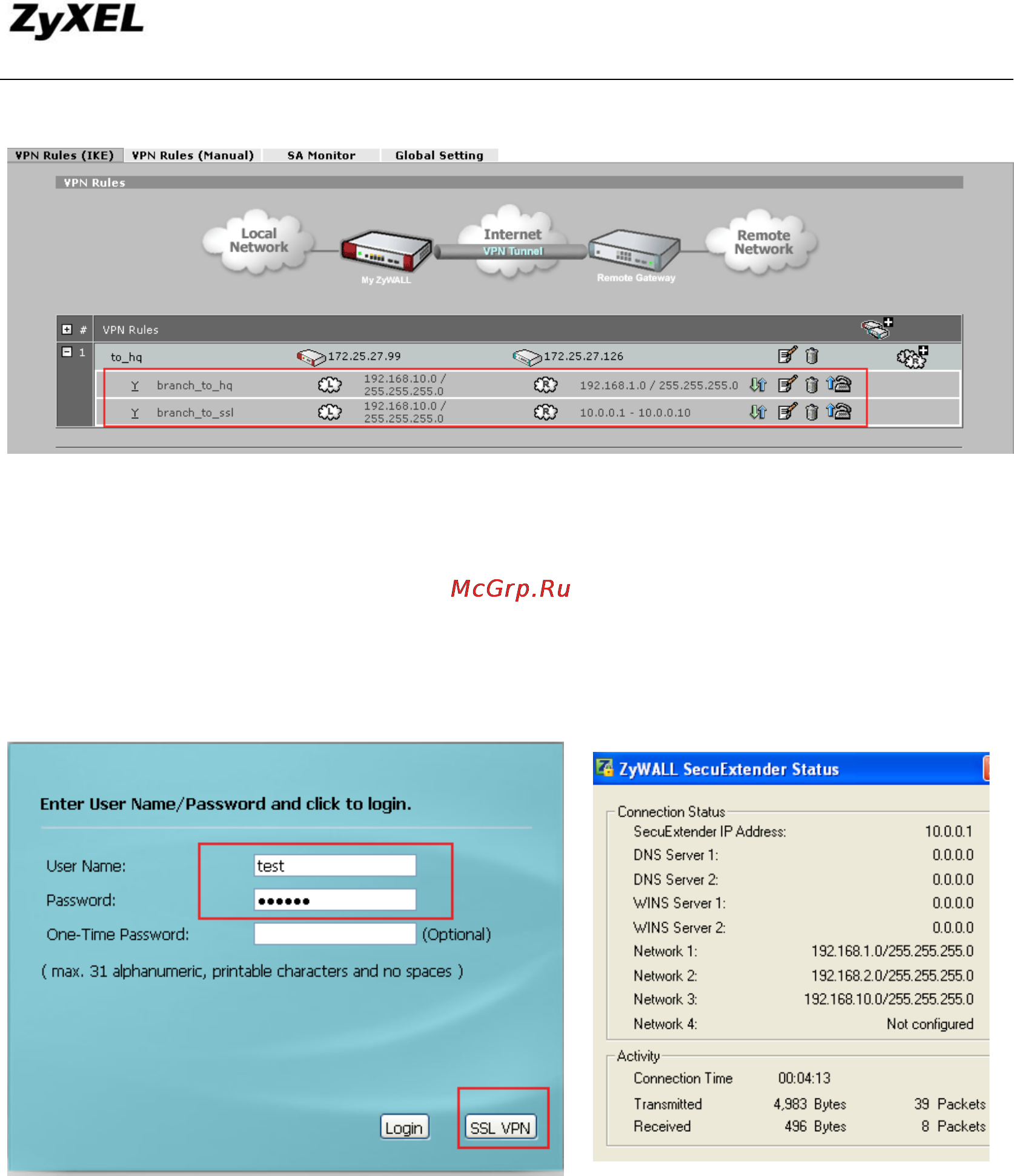

After the settings above are done on both HQ USG and branch ZyNOS ZyWALL, we
can verify whether the SSL VPN client can access the remote local resources.
SSL client builds a full tunnel to the HQ USG.
The SSL VPN client can access both the HQ USG local resources 192.168.1.0/24,
192.168.2.0/24, and the branch office USG local resources 192.168.10.0/24.
