ZyWALL USG Support Notes
49
All contents copyright (c) 2010 ZyXEL Communications Corporation.

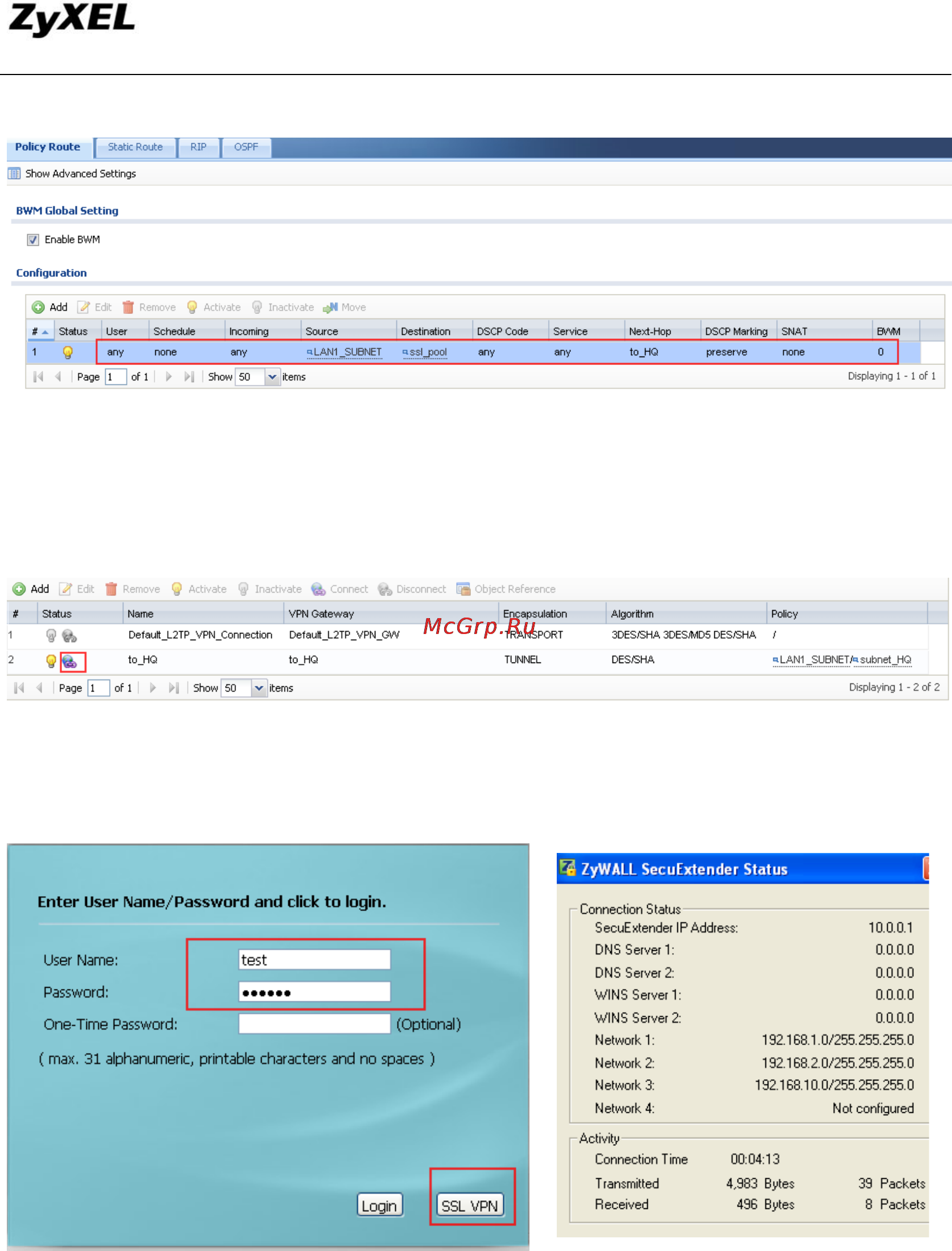

After all the settings on HQ and branch USG, user can verify the result.
Dial up the IPSec VPN tunnel.
SSL client builds a full tunnel to the HQ USG.
The SSL VPN client can access both the HQ USG local resources 192.168.1.0/24,
192.168.2.0/24, and the branch office USG local resources 192.168.10.0/24.
