ZyWALL USG Support Notes
52
All contents copyright (c) 2010 ZyXEL Communications Corporation.

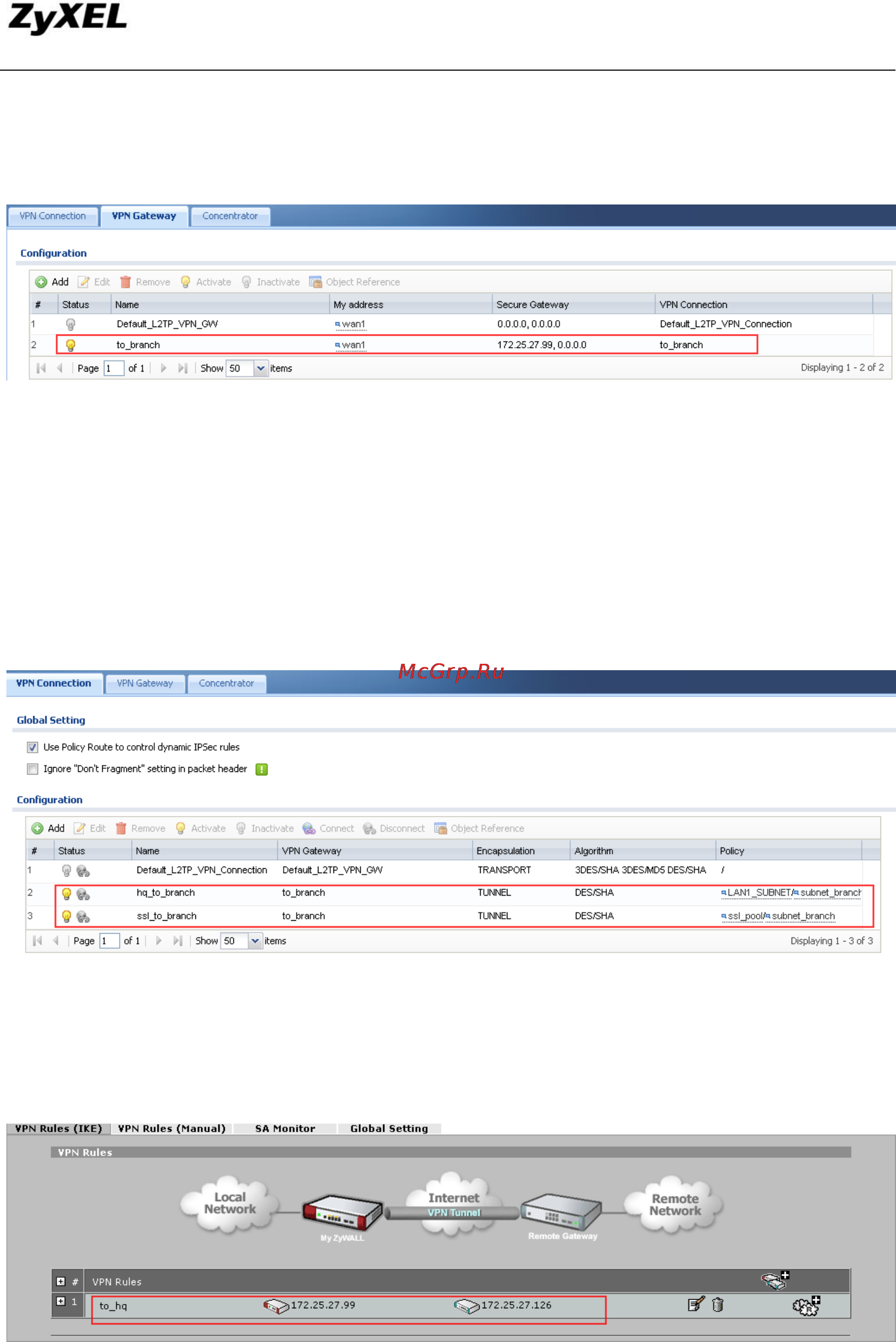

Step4. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add phase1 rule to
branch office.
Go to Configuration > VPN > IPSec VPN > VPN Connection, add two phase2 rules
to branch office.
First rule for HQ to branch, Local/Remote policy: 192.168.1.0/192.168.10.0
Second rule for ssl vpn client to branch, Local/Remote policy:
10.0.0.1~10.0.0.10/192.168.10.0
On branch office ZyNOS ZyWALL:
Go to Security > VPN > VPN rules(IKE), add phase 1 rule to HQ.
Add two phase2 rules.
One is for traffic from branch to HQ. Local/Remote policy: 192.168.10.0/192.168.1.0
The other is for traffic from branch to ssl vpn client. Local/Remote policy:
192.168.10.0/10.0.0.1~10.0.0.10.
