ZyWALL USG Support Notes
96
All contents copyright (c) 2010 ZyXEL Communications Corporation.
3.2.2.2. Configuration Steps

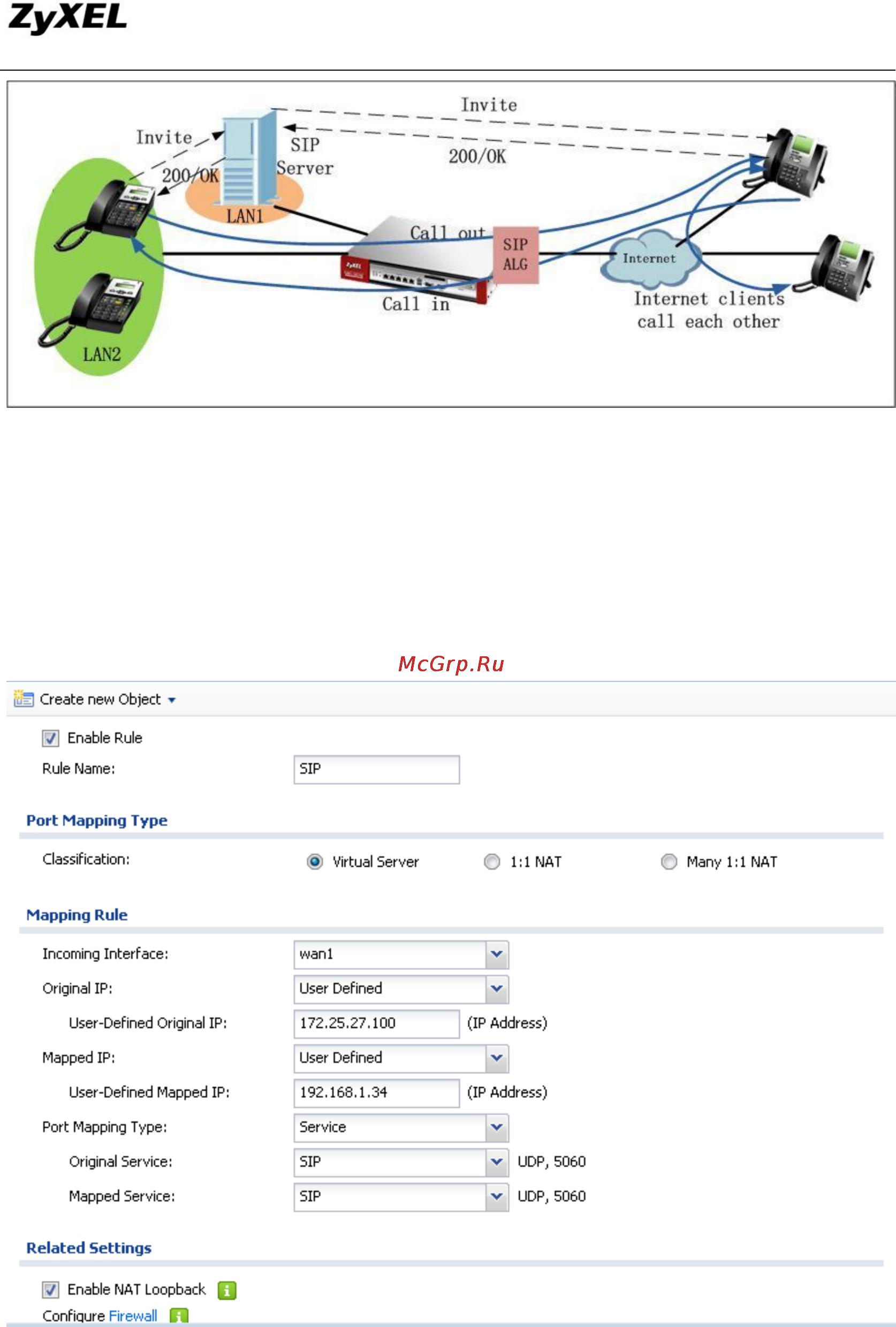

Step1. Go to Configuration > Network > NAT, add one NAT rule to map the SIP
traffic to the local SIP server.
Step2. Go to Configuration>Firewall, add one firewall rule to allow the SIP traffic
from WAN to the local SIP server.
