ZyWALL USG Support Notes
130
All contents copyright (c) 2010 ZyXEL Communications Corporation.
Source: HQ local subnet subnet_HQ
Destination: Br1 local subnet subnet_Br1
Next-Hop: VPN tunnel to_Br1.

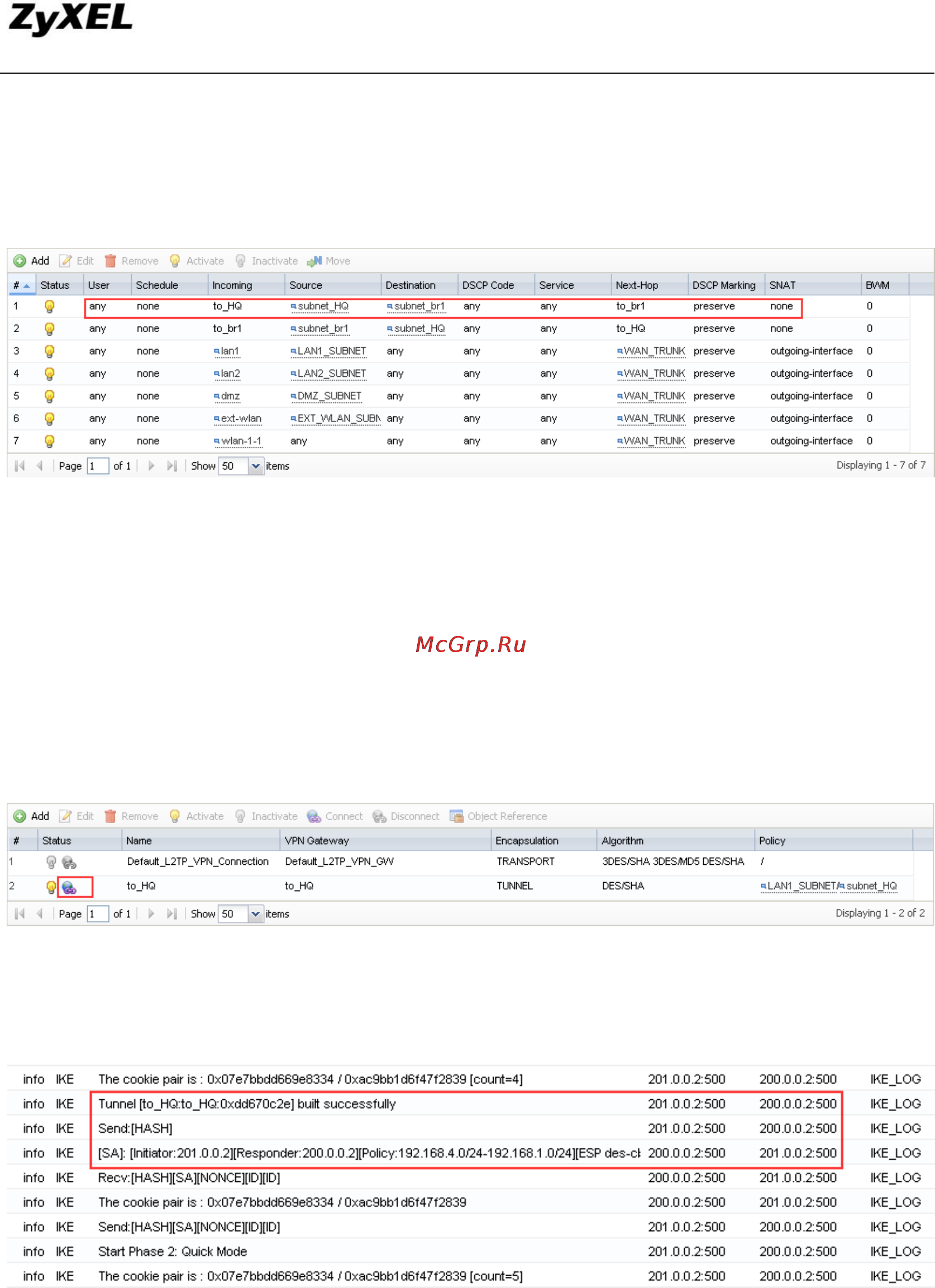

After all the steps above, the configuration for this application scenario is done.
4.2.3. Scenario Verification
On Br1, dial up the tunnel to HQ.
Go to Monitor > Log, check the IKE logs, the tunnel is built up to HQ WAN1.
On a PC behind branch office, initiate nonstop ping to a PC behind HQ.
