ZyWALL USG Support Notes
97
All contents copyright (c) 2010 ZyXEL Communications Corporation.

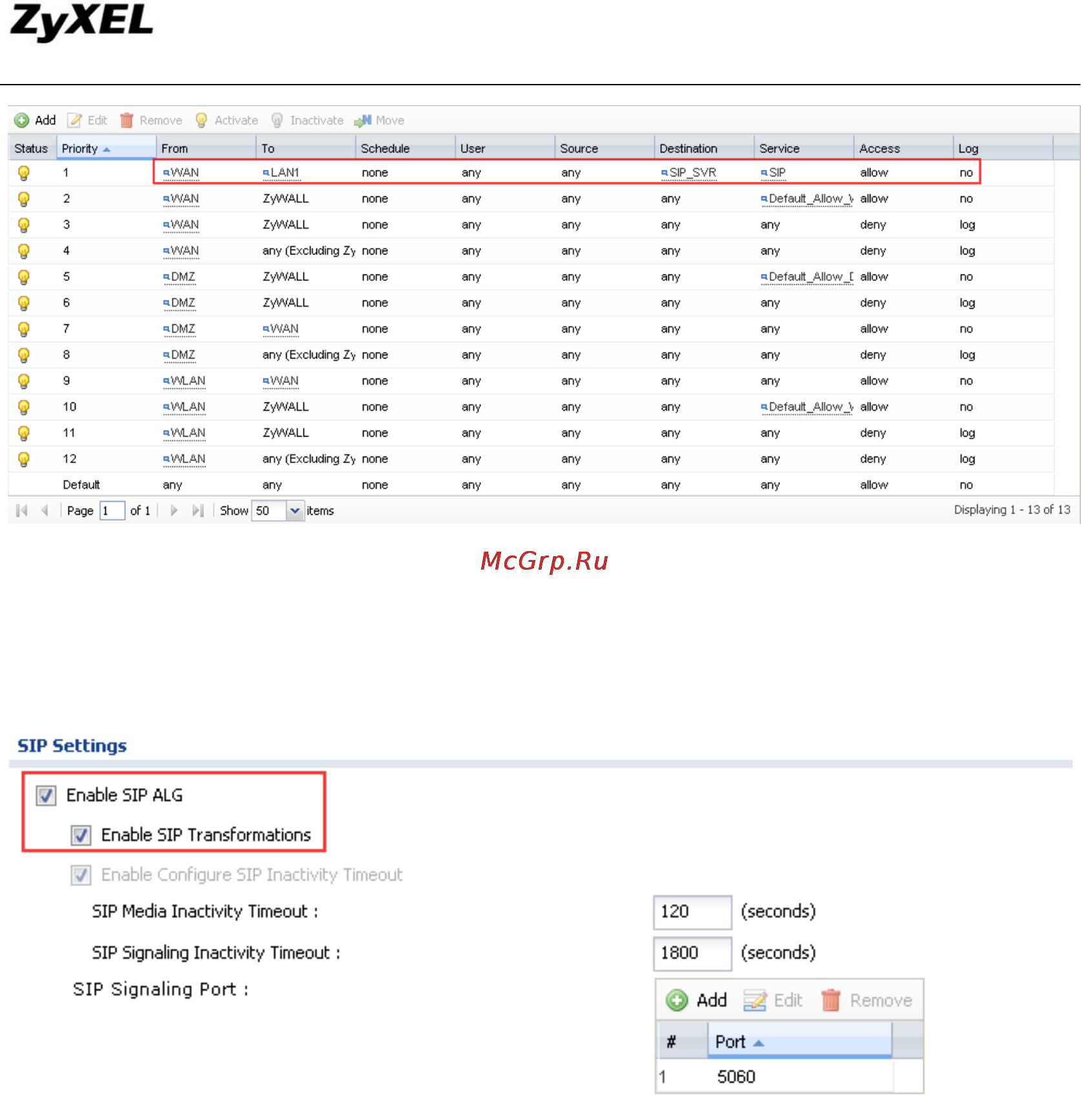

Step3. Go to Configuration > Network > ALG, enable SIP ALG, and also please make
sure to enable SIP Transformations.
After all these settings are done, all the clients can register to the local SIP server, and
all the clients can call each other, no matter they‟re in the local network, or in the
Internet.
3.3. VoIP in VPN Scenario
3.3.1. Application Scenario
In the scenario below, X6004 is placed in the local network of HQ. There‟re SIP
clients in HQ local network, as well as in the branch offices‟ local networks. SIP
clients want to register to the SIP server (X6004) securely through IPSec VPN tunnels.
They also want to make calls to each other securely through VPN tunnels. No matter
