ZyWALL USG Support Notes
27
All contents copyright (c) 2010 ZyXEL Communications Corporation.

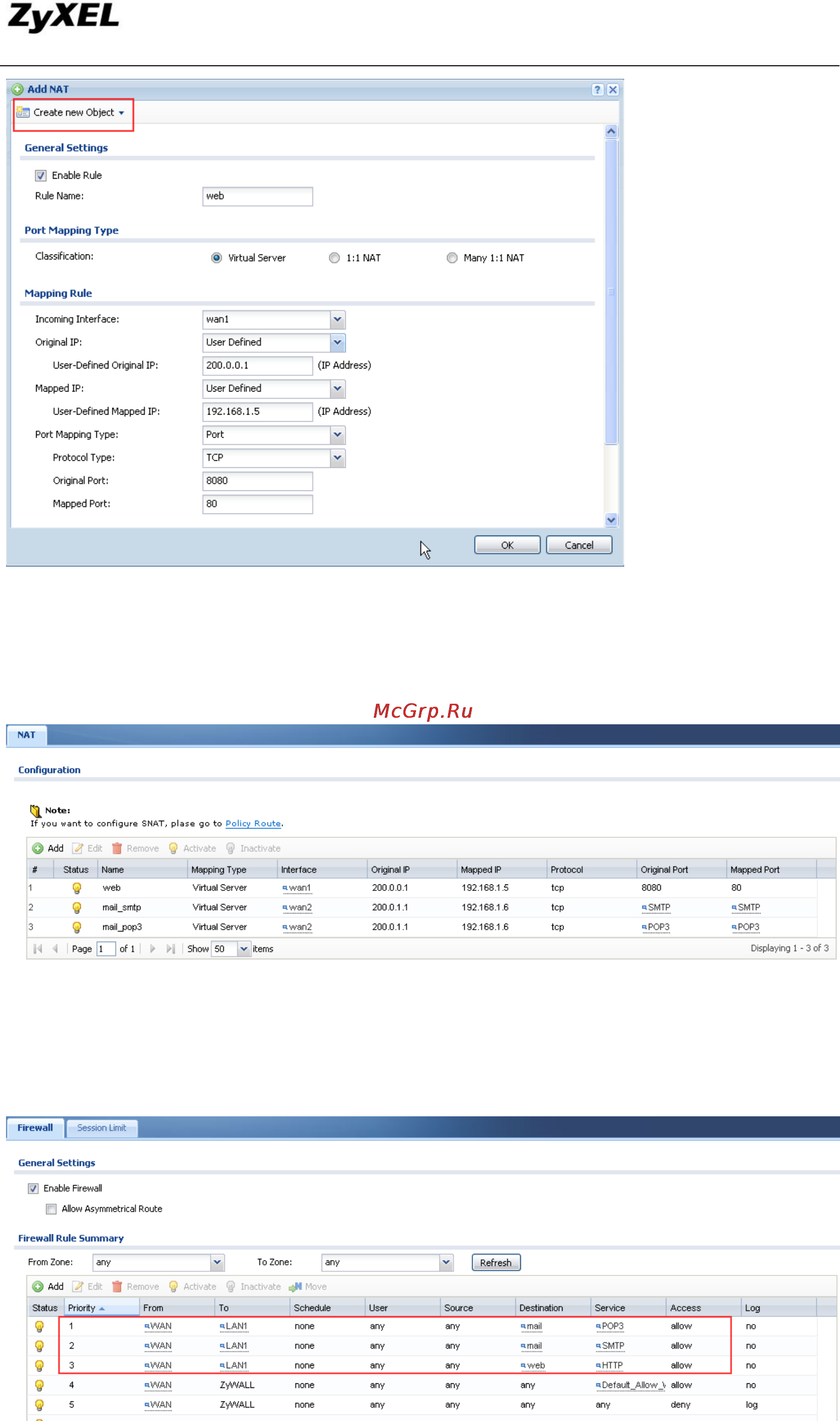

Following the steps above, add the virtual server rules for the mail server to forward
SMTP and POP3 from WAN2 to the server 192.168.1.6.
Don‟t forget to configure corresponding firewall rule to allow the http, smtp and pop3
traffic from WAN to the LAN servers.
