ZyWALL USG Support Notes
158
All contents copyright (c) 2010 ZyXEL Communications Corporation.
settings in the Application Patrol configuration page?
If the user selects “Auto”, the ZyWALL inspects packet by OSL layer 7(signature
pattern). By selecting “Service Ports”, the ZyWALL inspects the incoming packet
based on layer 4. By default, “Auto” will be selected once an AppPatrol rule is
enabled. Please refer to the following information in advance to use “Service Ports”
option:

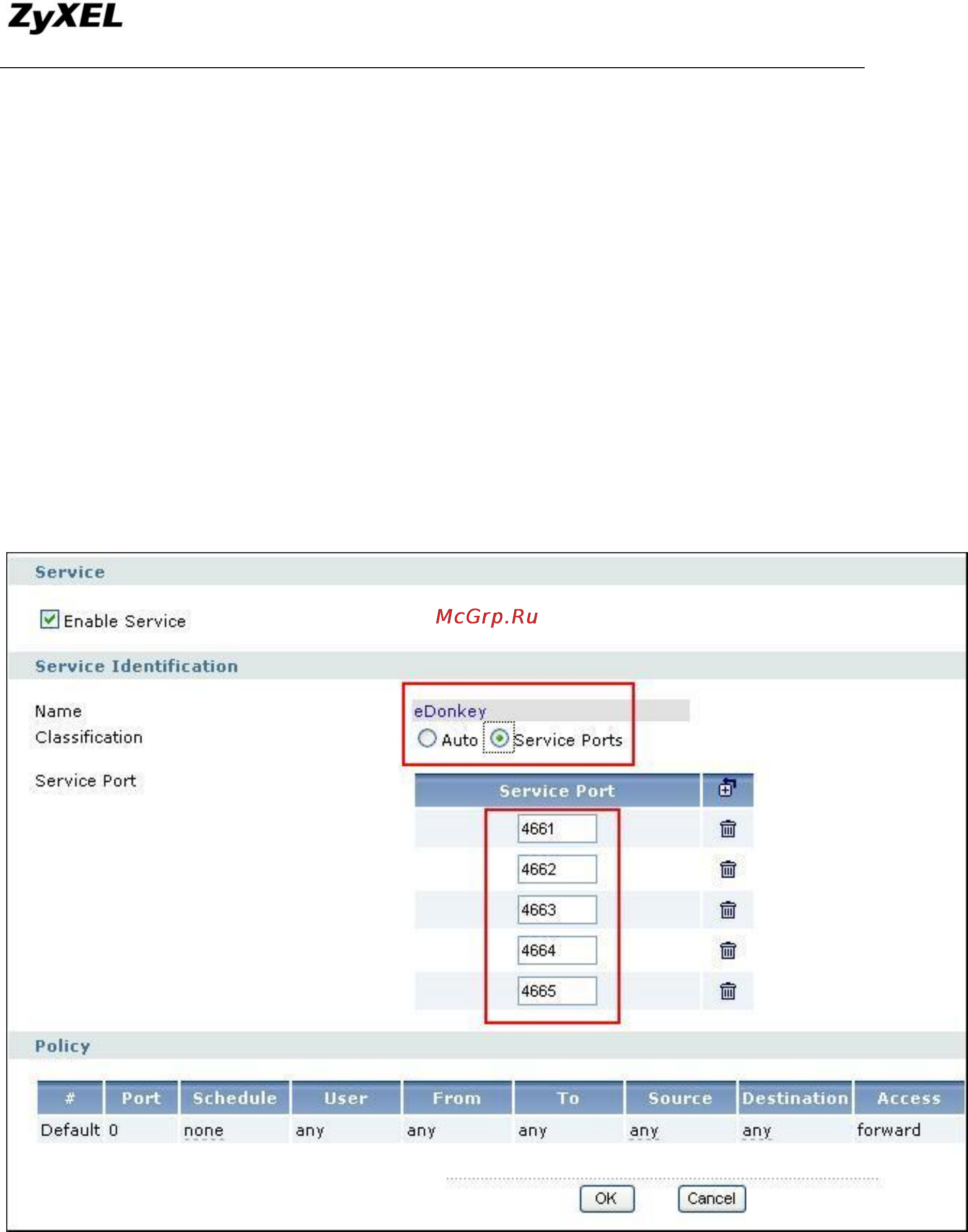

(1) Defines the port used in ZyWALL USG. For easy configuration purpose, the
ZyWLL has been pre-configured for the frequent use service port. For example:
eDonkey service is pre-defined to take action on port 4661 ~ 4665 as shown below.
(2) It could be used when user want to apply bandwidth control for certain allowed or
rejected application (which is in Application Patrol support list).
(3) Since the “Service Port” performs up to OSI layer 4 inspections, so the system
performance would be better than the “Auto” inspection (layer 7). Therefore, if the
user concerns about system performance or user‟s network environment is simple, the
