ZyWALL USG Support Notes
64
All contents copyright (c) 2010 ZyXEL Communications Corporation.

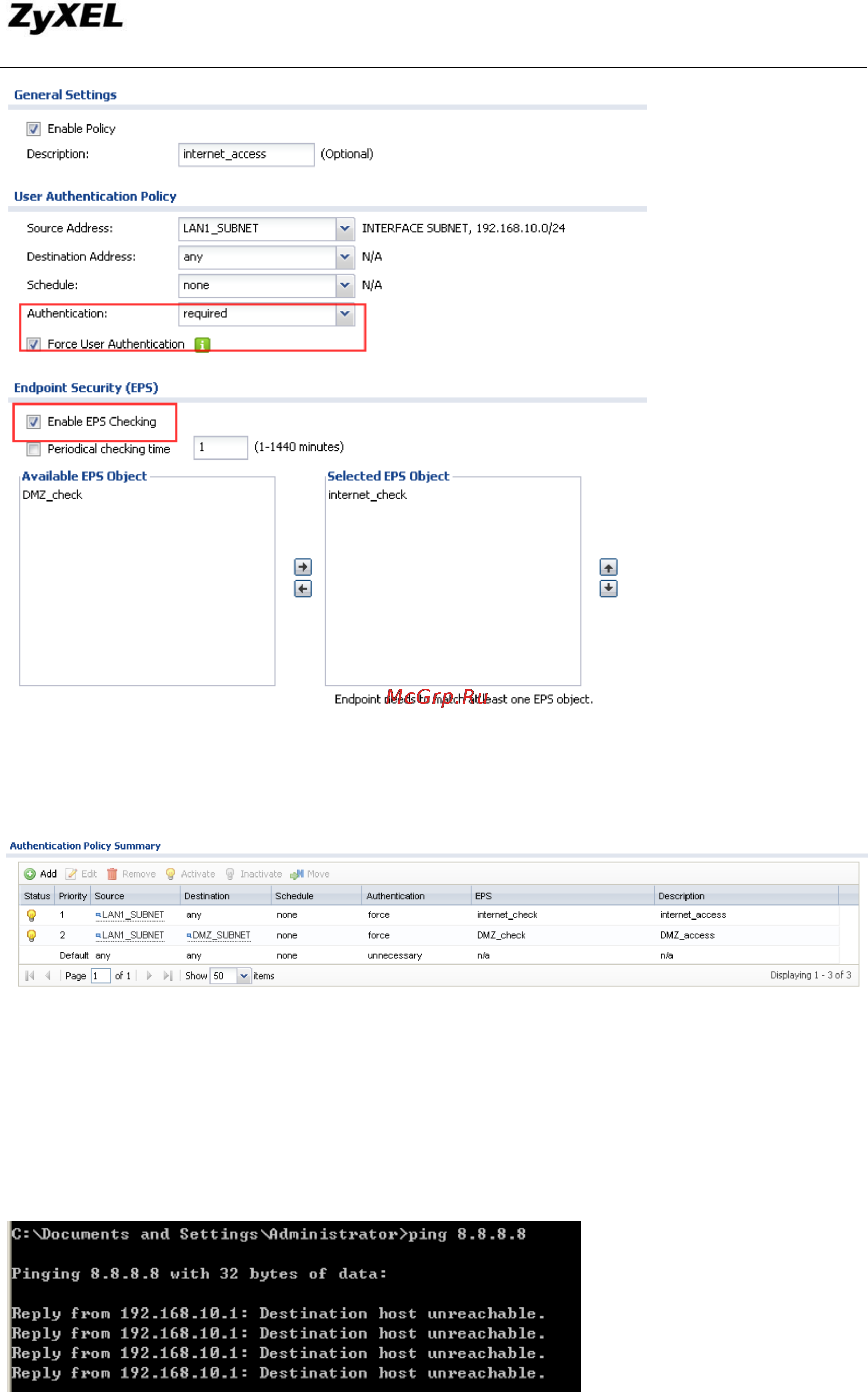

Below is the Authentication Policy summary.
2.2.3. Scenario Verification
Before LAN clients pass authentication, they cannot access internet.
Access the USG login page, and enter username and password to go through the USG
checking.
