ZyWALL USG Support Notes
78
All contents copyright (c) 2010 ZyXEL Communications Corporation.
Please leave the “Login Name Attribute” and “Group Membership Attribute” as
system default.

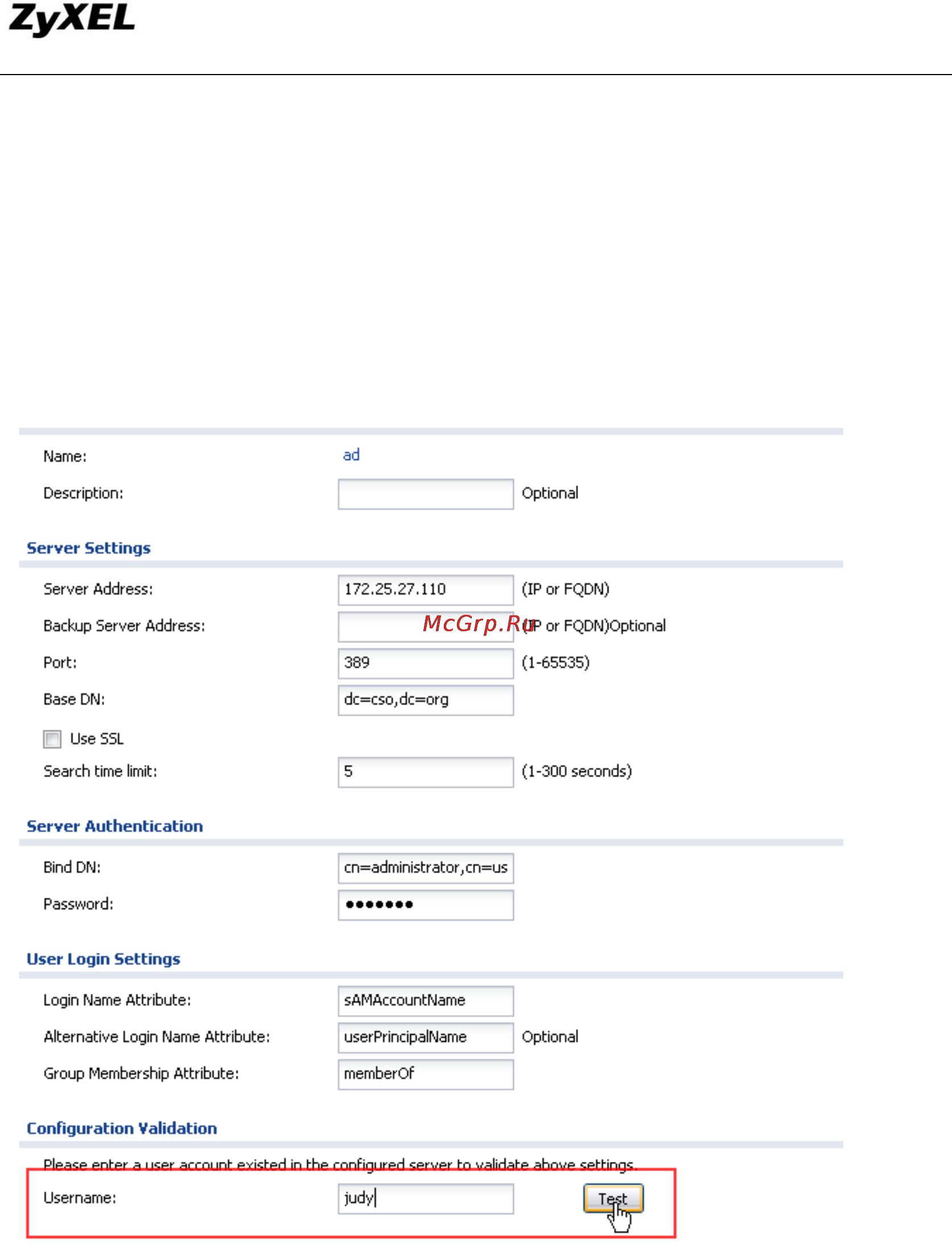

Alternative Login Name Attribute is optional. You can fill in “userPrincipalName”
here. Then users can login the USG by email address as well as by user name.
After the configuration of AD is done, you can verify whether the configuration is ok,
and the communication between AD and USG is ok.
