Carte mère MS-7576
Fr-22
Slot PCI (Peripheral Component Interconnect) Express
Le slot PCI Express supporte la carte d’extension d’interface du PCI Express.
Le slot PCI Express x16 supporte un taux de transfert jusqu’à 4.0 GB/s.
Le slot PCI Express x8 supporte un taux de transfert jusqu’à 2.0 GB/s.
Le slot PCI Express x1 supporte un taux de transfert jusqu’à 250 MB/s.

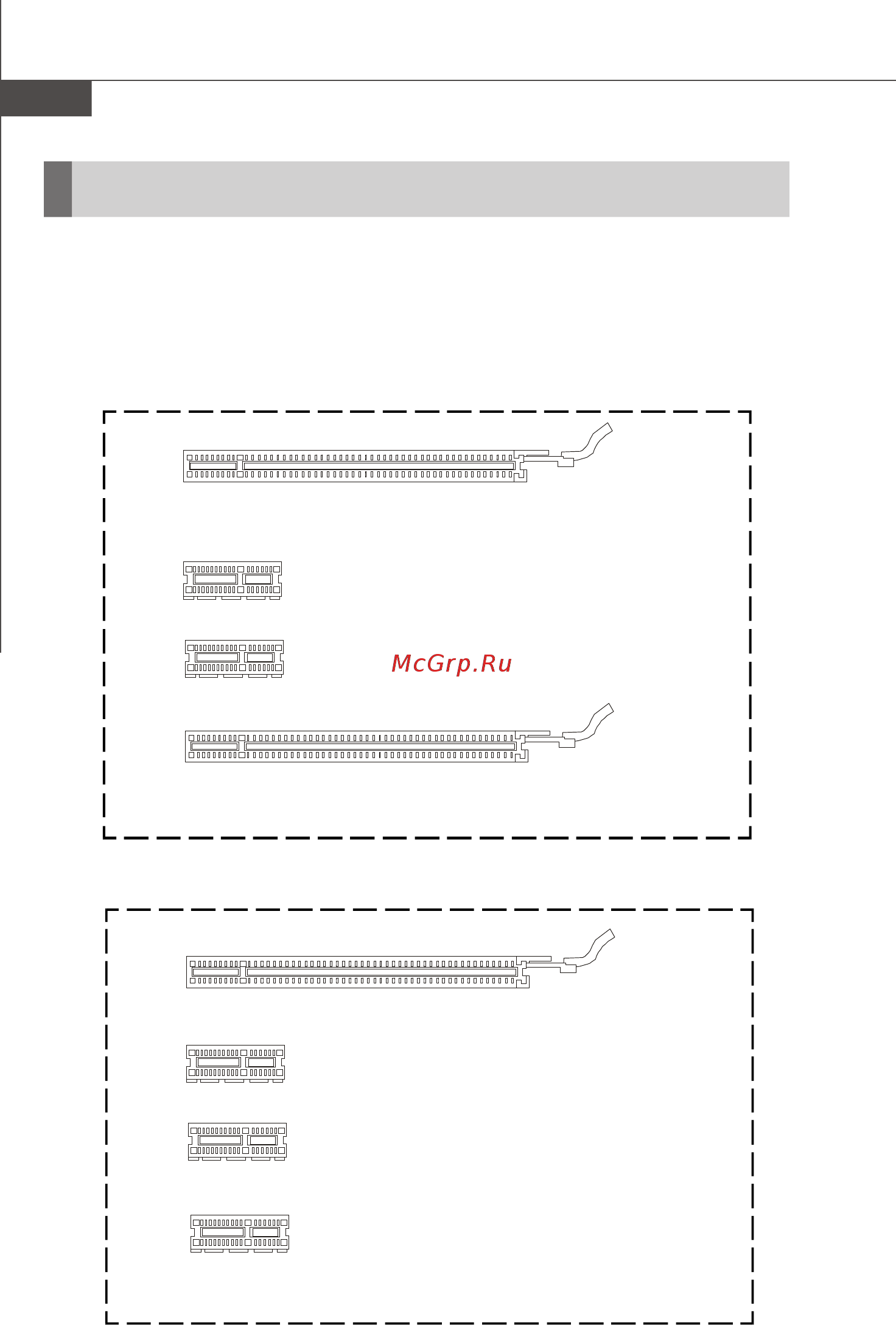

Slots
PCI_E1 supporte jusqu’à la vitesse du PCI Express x16.
Lorsque les doubles cartes graphiques sont activées, il se réglage
à la vitesse x8.
PCI_E4 supporte jusqu’à la vitesse du PCI Express x8.
PCI_E2 supporte jusqu’à la vitesse du PCI Express x1.
PCI_E3 supporte jusqu’à la vitesse du PCI Express x1.
PCI_E1 supporte jusqu’à la vitesse du PCI Express x16.
PCI_E4 supporte jusqu’à la vitesse du PCI Express x1.
PCI_E2 supporte jusqu’à la vitesse du PCI Express x1.
PCI_E3 supporte jusqu’à la vitesse du PCI Express x1.
Répartition du slot PCIE pour chipset 790GX
Répartition du slot PCIE pour chipset 780G
