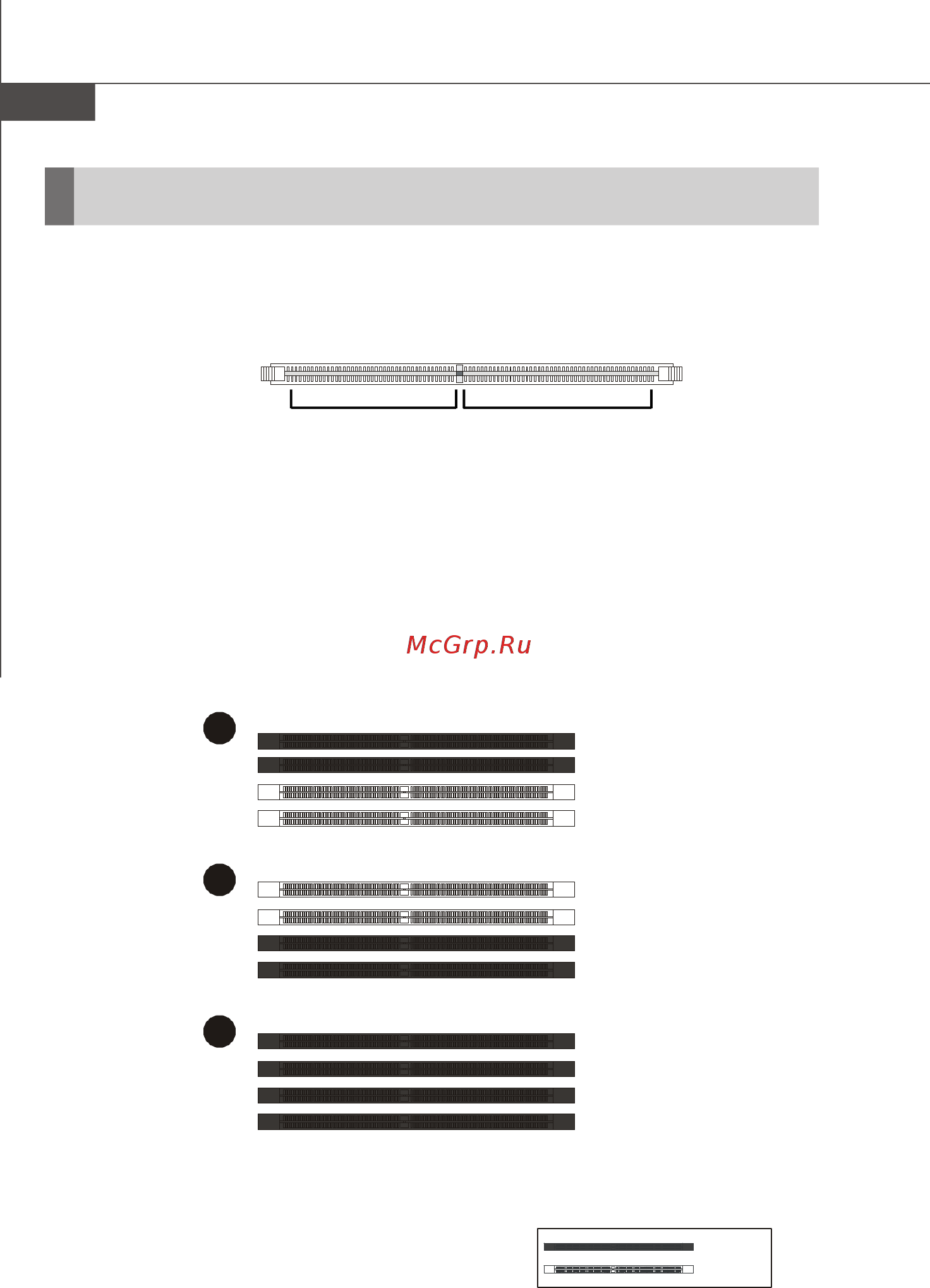

Carte mère MS-7576
Fr-8
Mémoire
1
DIMM1
DIMM2
DIMM3
DIMM4
2
DIMM1
DIMM2
DIMM3
DIMM4
3
DIMM1
DIMM2
DIMM3
DIMM4
Règles de population des mémoire à canaux-doules
En mode de Canal double, les modules de mémoire peuvent transmettre et recevoir
les données avec simultanément deux lignes omnibus de données. L’activation du
mode de Canal double peut améliorer les performances du système. Veuillez vous
reporter aux illustrations suivantes pour connaître les règles de population en mode
de Canaux-doubles.
Ces slots DIMM servent à installer les modules de mémoire.
Pour plus d’informations sur les composants compatibles, veuillez visiter http://global.
msi.com.tw/index.php?func=testreport
Empty
Installed
72x2=144 pin
DDR3
240-pin, 1.5V
Double-canaux : Canal A est en BLEU CIEL ; Canal B est en ROSE
48x2=96 pin
Installé
Vide
