Ru-31
Русский
В общем случае, находясь в режиме настройки BIOS, рекомендуется выполнить
следующие действия.

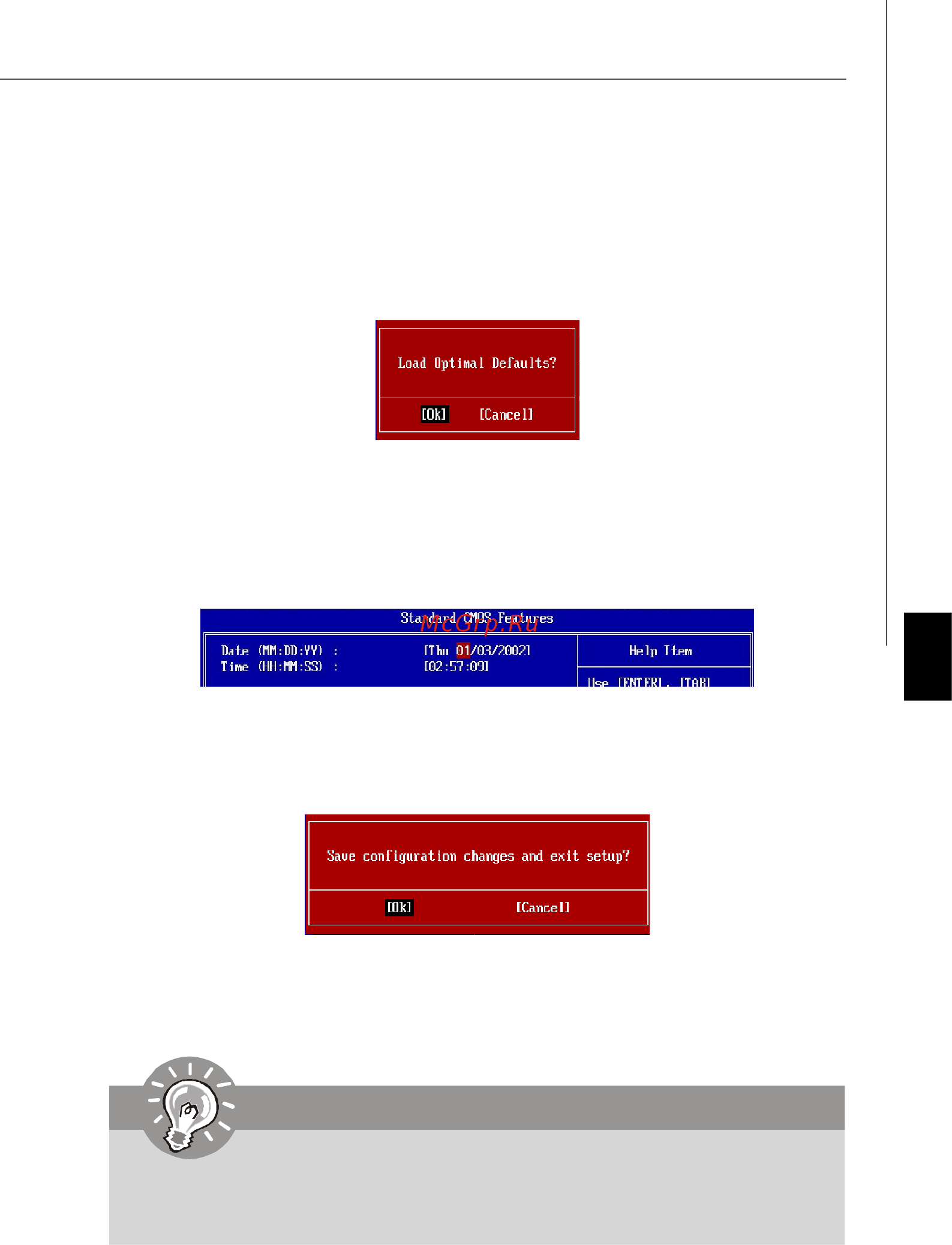

1. Load Optimized Defaults : Клавишами управления (↑↓) выберите пункт
Load Optimized Defaults и нажмите <Enter>, появится следующее
сообщение:
Нажмите [Ok], чтобы загрузить настройки по умолчанию для оптимальной
производительности системы.
2. Setup Date/ Time : Выберьте Standard CMOS Features и нажмите <Enter>
для входа в меню. Установите дату и время в соответствующих полях.
3. Save & Exit Setup : Клавишами управления (↑↓) выберьте пункт Save & Exit
Setup и нажмите <Enter>, появится следующее сообщение:
Нажмите [Ok], чтобы сохранить конфигурацию и выйти из BIOS Setup.
Внимание
Приведенная выше конфигурация подходит для общего применения.
Если же вам требуются более тонкие настройки BIOS, обратитесь к
английской версии руководства на веб-сайте MSI.
