En-25
English
Hybrid CrossFireX
TM
Technology (for 780G)
Hybrid CrossFireX
TM
technology brings multi-GPU performance capabilities by en-
abling an AMD 780 integrated graphics processor and a discrete graphics processor
to operate simultaneously with combined output to a single display for blisteringly-
fast frame rates. Unleash the graphics performance.
System Request
1. Hybrid CrossFireX
TM
is only supported with the Vista operating system.
2. Graphic card based on an ATI Radeon
TM
HD 2400 Series, ATI Radeon
TM
HD 3400
Series or ATI Mobility Radeon
TM
HD 3400 Series graphics processor.
3. Mainboard based on an AMD 780 integrated chipset.
Enabling Hybrid CrossFireX
TM
Technology

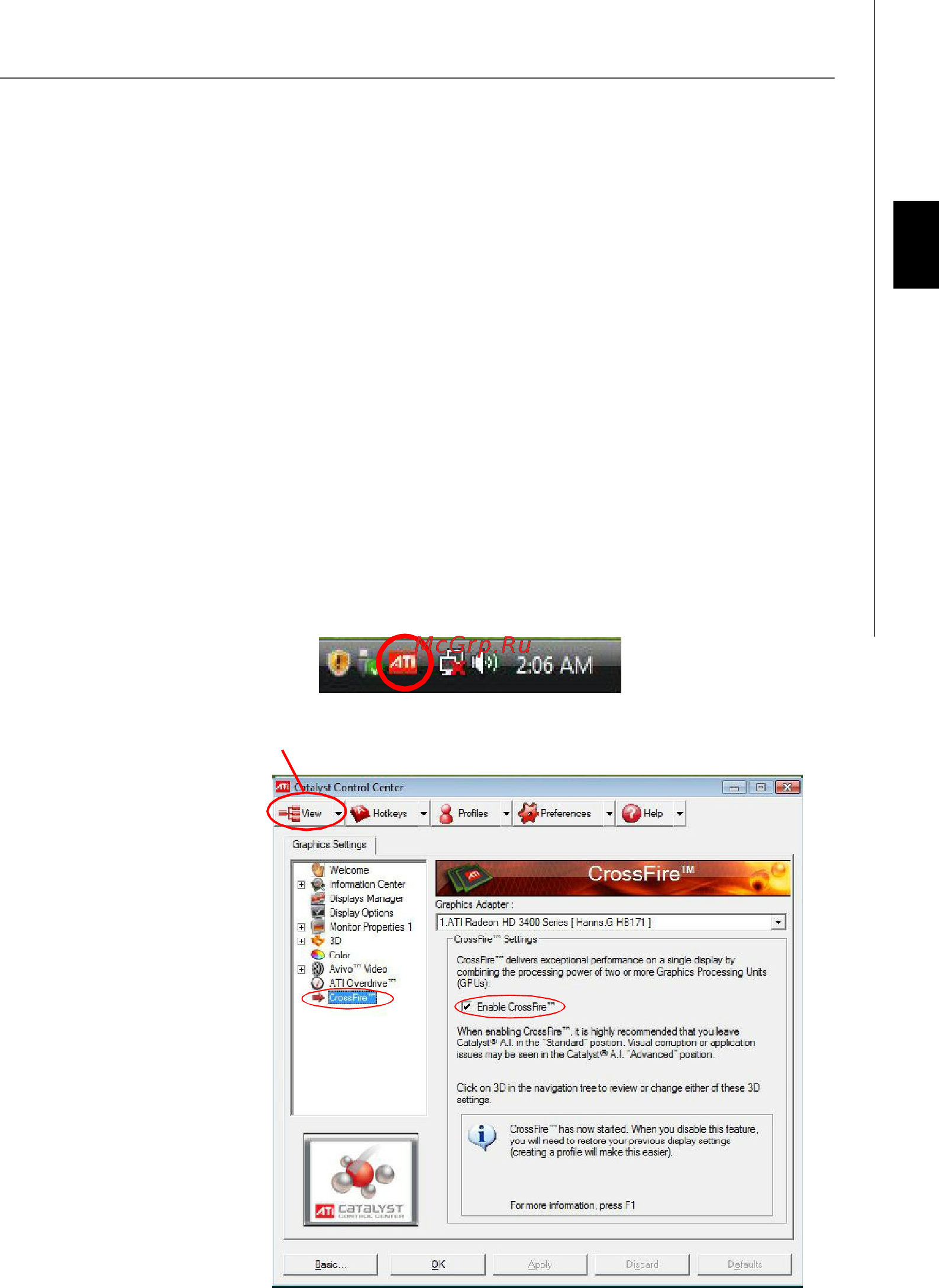

Power off the system and install the ATI graphic card that supports Hybrid CrossFireX
technology. After then, power on the system and install the driver that Hybrid
CrossFireX technology. Restart the system and wait for the ATI Icon to show in the
System Tray. Click the icon and then the following aspect appears in Catalyst™
Control Center:
1. Select the Advanced View from the
view drop menu.
PDF created with pdfFactory trial version www.pdffactory.com
