Fr-15
Français

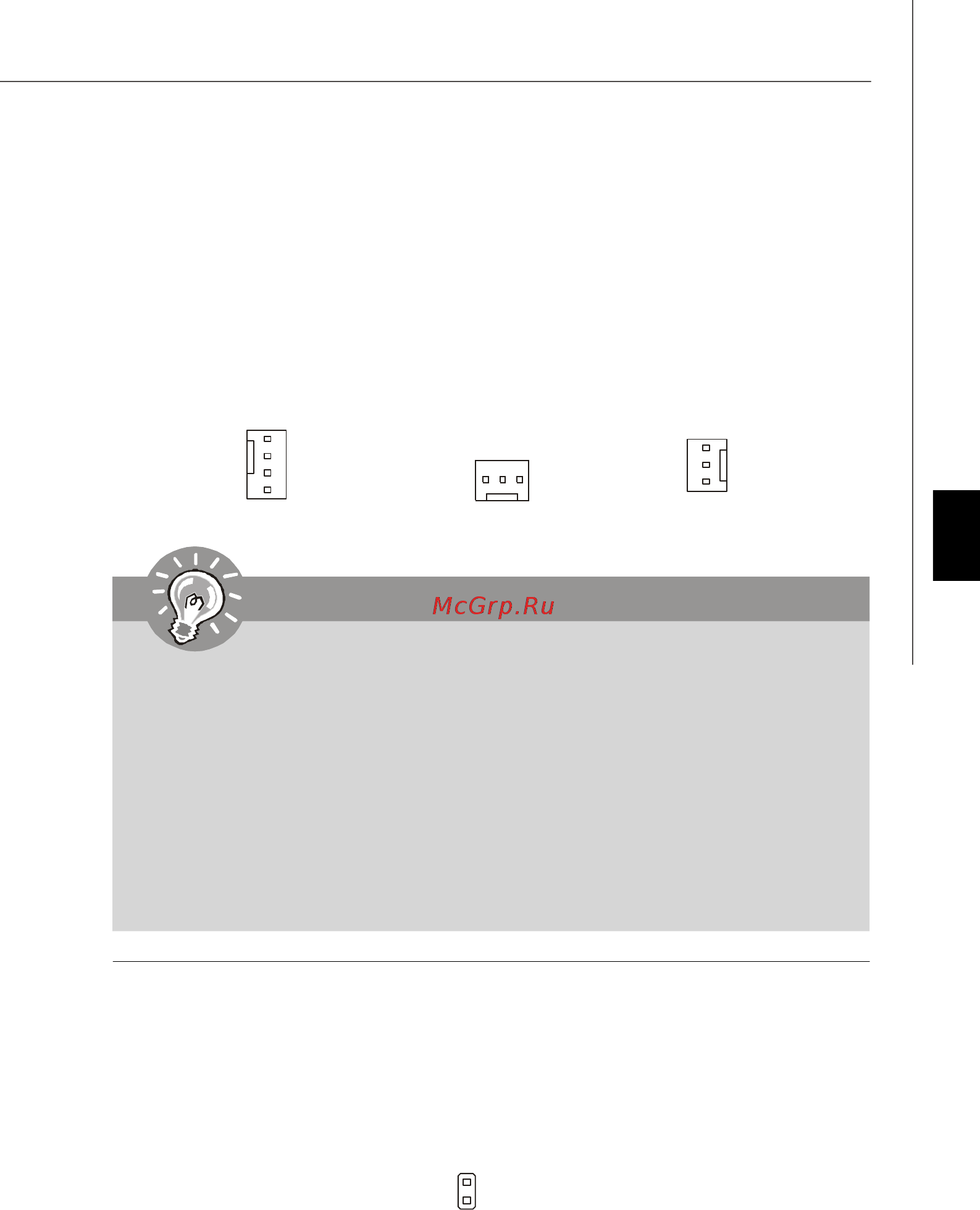

Connecteur d’alimentation du ventilateur : CPUFAN1, SYSFAN1~3
Les connecteurs de courant du ventilateur supportent le ventilateur de refroidissement
du système avec +12V. Lors du branchement des fils aux connecteurs, faites toujours
en sorte que le fil rouge soit le fil positif devant être relié au connecteur +12V; et que le
fil noir soit le fil de mise à la terre devant être relié au connecteur de mise à la terre GND.
Si la carte mère est équipée d’un jeu de puces intégré pour moniteur de matériel de
système, vous devrez utiliser un ventilateur spécial pourvu d’un capteur de vitesse
afin de contrôler le ventilateur de l’unité centrale.
JCI1
1
CINTRU
GND
2
SYSFAN3
CPUFAN1
NC
+12V
GND
SENSOR
+12V
GND
Control
SYSFAN1/2
SENSOR
+12V
GND
Important
1.Veuillez consulter les ventilateurs d’unité centrale recommandés sur les
sites officiels des fabricants de processeurs ou bien consultez votre
revendeur pour obtenir des informations sur le ventilateur de
refroidissement adapté à votre unité centrale.
2.CPUFAN1 supporte le contrôle du ventilateur. Vous pouvez installer l’unité
Overclocking Center qui contrôlera automatiquement la vitesse du
ventilateur du CPU selon sa température actuelle.
3. Le connecteur d’alimentation du ventilateur du CPU avec 3 ou 4 pins sont
tous disponibles pour CPUFAN1.
4. SYSFAN1/2 supportent aussi le contrôle du ventilateur. Vous pouvez choisir
combien de pourcentage de vitesse pour le SYS FAN1/2 dans le BIOS.
Connecteur Châssis Intrusion : JCI1
Ce connecteur est connecté à un câble châssis intrusion switch. Si le châssis est
ouvert, le switch en informera le système, qui enregistera ce statut et affichera un
écran d’alerte. Pour effacer ce message d’alerte, vous devez entrer dans le BIOS et
désactiver l’alerte.
