MS-7576 Mainboard
De-8
Speicher
1
DIMM1
DIMM2
DIMM3
DIMM4
2
DIMM1
DIMM2
DIMM3
DIMM4
3
DIMM1
DIMM2
DIMM3
DIMM4

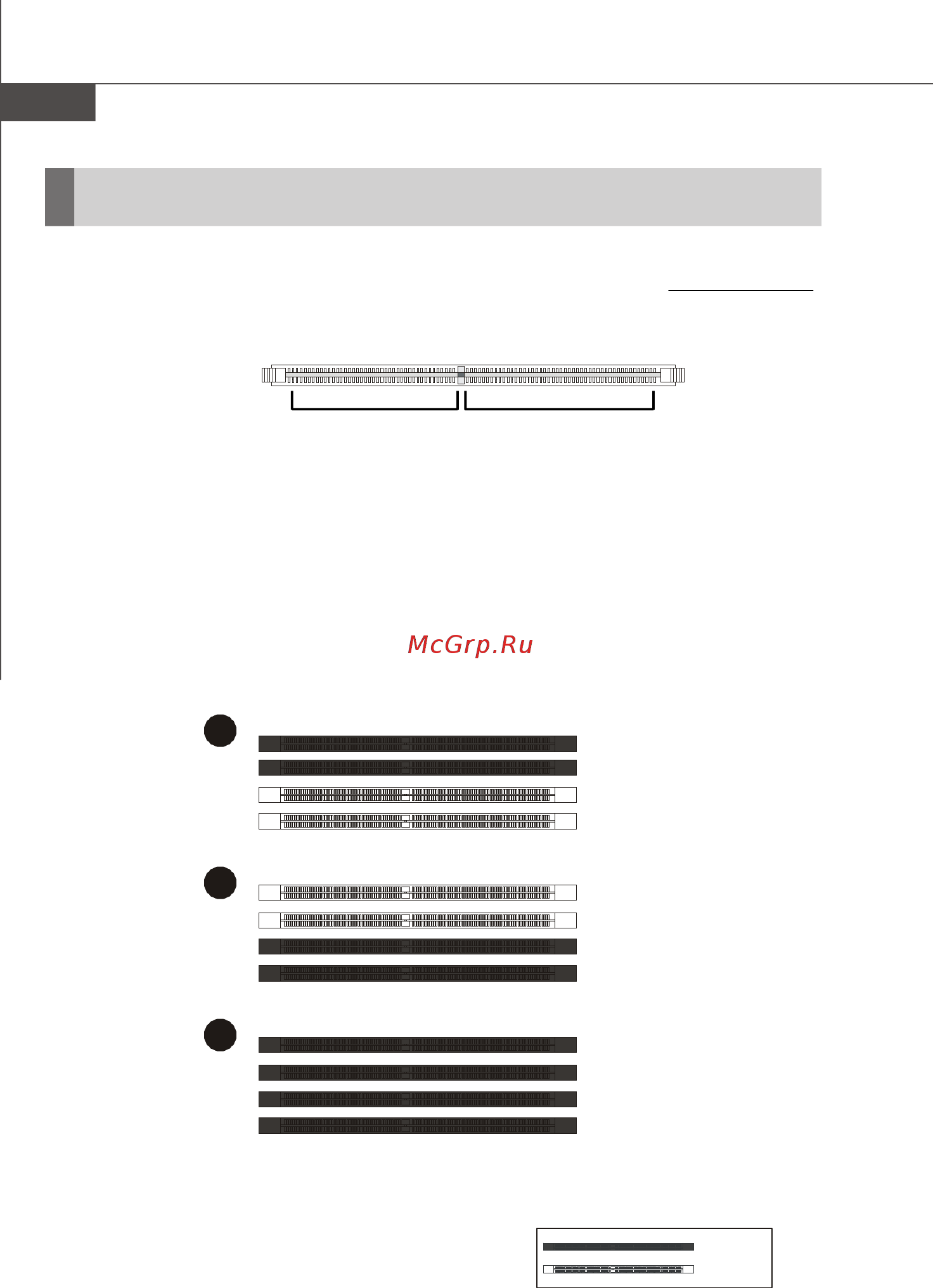

Populationsregeln für Dual-Channel-Speicher
Im Dual-Channel-Modus können Arbeitsspeichermodule Daten über zwei
Datenbusleitungen gleichzeitig senden und empfangen. Durch Aktivierung des Dual-
Channel-Modus wird die Leistung Ihres Systems verbessert. Bitte beachten Sie die
folgenden Abbildungen zur Veranschaulichung der Populationsregeln im Dual-Chan-
nel-Modus.
Diese DIMM-Steckplätze nehmen Arbeitsspeichermodule auf.
Die neusten Informationen über kompatible Bauteile finden Sie unter http://global.msi.
com.tw/index.php?func=testreport
72x2=144 Pole
DDR3
240-polig, 1.5V
Dual-Channel: Kanal A ist himmelblau; Kanal B ist rosa
48x2=96 Pole
Empty
Installed
installiert
leer
PDF created with pdfFactory trial version www.pdffactory.com
