De-21
Deutsch
Steckbrücke
Das Motherboard unterstützt der folgende Steckbrücke, um die Funktion des Comput-
ers einzustellen. Dieser Abschnitt beschreibt, wie man die Funktionen des
Motherboards durch den Gebrauch der Steckbrücke ändert.

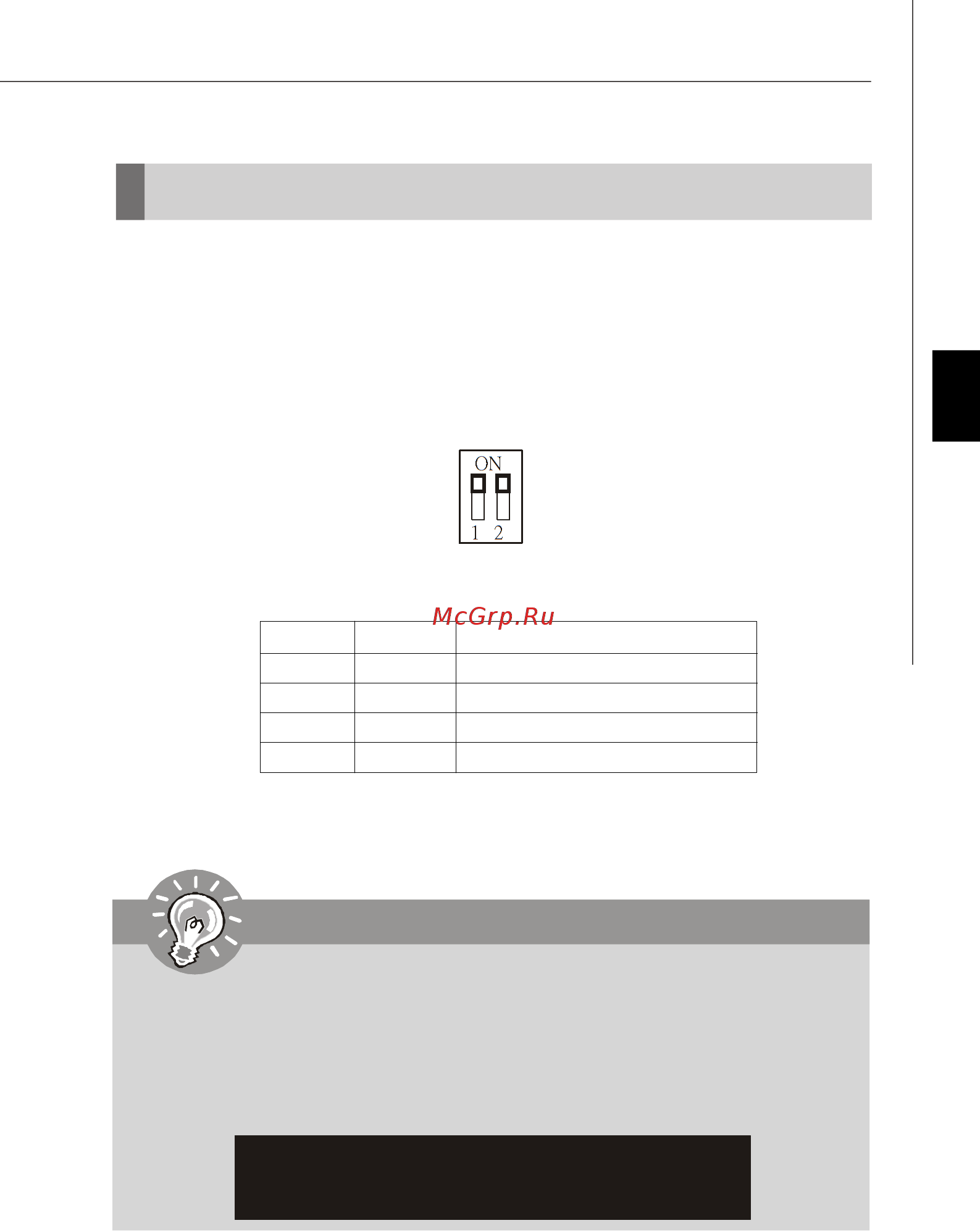

Übertaktung FSB Steckbrücke: OCSWITCH1
Übertaken der FSB, um die Prozessorfrequenz erhöhen durch das Andern die
Steckbrücke. Folgen Sie die Anleitungen zur Einstellung FSB.
DOC1 DOC2 CPU Frequency
1:ON 2:ON Default
1:ON 2:OFF Increase 10% speed of FSB
1:OFF 2:ON Increase 15% speed of FSB
1:OFF 2:OFF Increase 20% speed of FSB
Wichtig
1.Stellen bitte Sie sicher, dass Sie schalten die System aus bevor Sie die
Steckbrücke ändern.
2. Wenn die Hardwareübertaktung zu der Systemunbeständigkeit oder dem
Absturz während der Aufladung führt, die folgende Warnmeldung während
des POST anzeigen. Und dann, stellen Sie bitte den Schalter im
Standardeinstellung.
Warning!!! OC switch overclocking had failed,
Please shutdown and adjust oc switch to lower frequency.
Try again!
