Fr-25
Français
Technologie Hybrid CrossFireX
TM
(Pour 780G)
La technologie Hybrid CrossFireX
TM
apporte les capabilités de performance multi-
GPU en activant un processeur graphique intégré AMD 780 et un processeur graphique
discret qui fonctionnent simultanément avec la sortie combinée vers un simple écran
pour une fréquence de trame très rapide. Déclenchez la perfomance graphique.
Revendication du système
1. La technologie Hybrid CrossFireX
TM
n’est supportée qu’avec le système d’opération
Vista.
2. La carte graphique est basée sur un processeur graphique de ATI Radeon
TM
HD
2400 Séries
2
, ATI Radeon
TM
HD 3400 Séries ou ATI Mobility Radeon
TM
HD 3400
Séries.
3. La carte mère est basée sur un chipset intégré de AMD 780.
Technologie Enabling Hybrid CrossFireX
TM

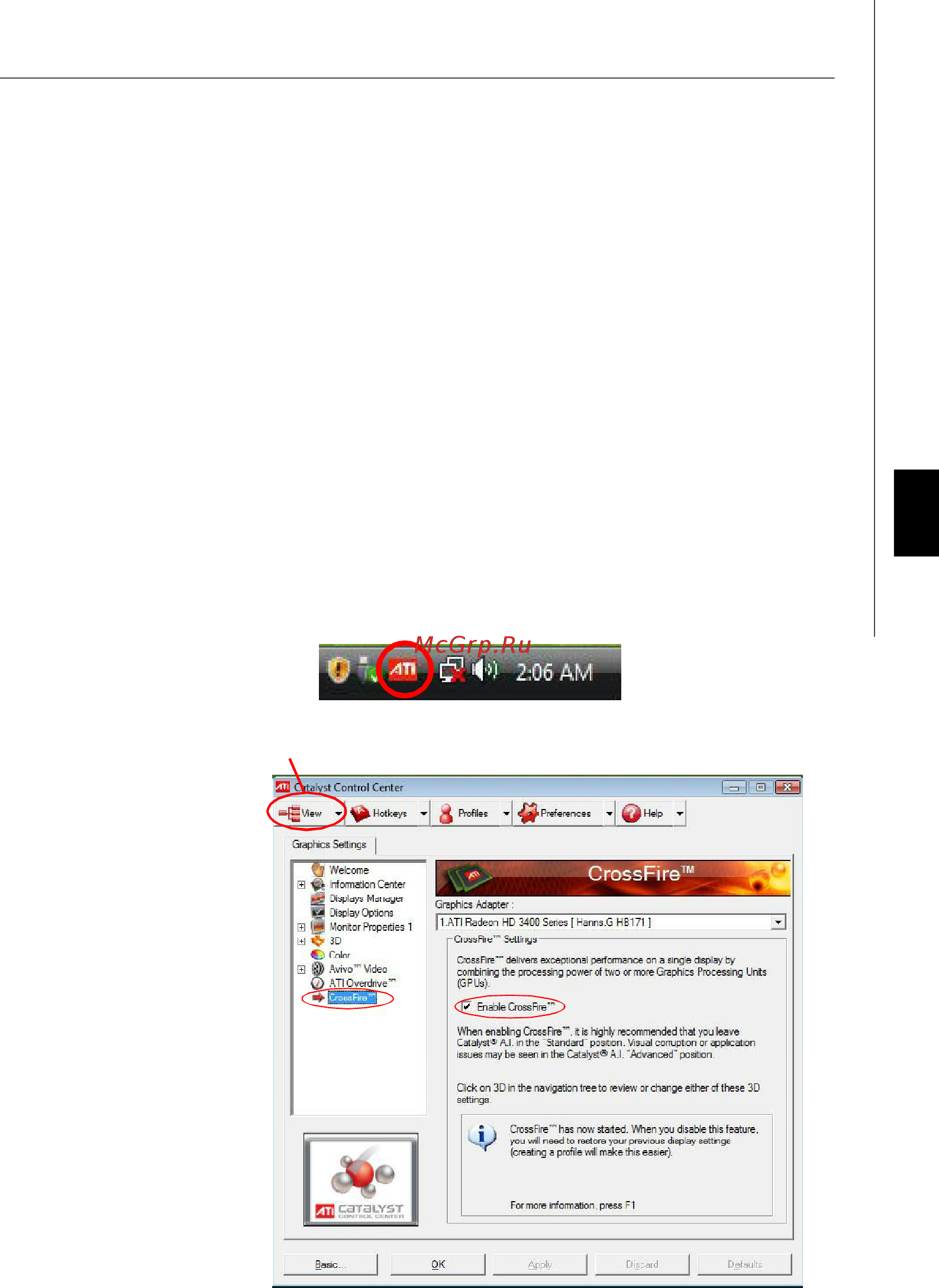

Eteignez le système et intallez la carte graphique ATI qui supporte la technologie
Hybrid CrossFireX. Et puis, allumez le système et installez le lecture de Hybrid
CrossFireX. Réinitialisez le système et attendez pour que l’icône ATI apparaîsse dans
le plateau du système. Cliquez cette icône et puis il apparaîtra les aspects suivants
dans le Catalyst
TM
Control Center :
1. Choisissez cet Advanced View dans
le menu de navigation View.
