Ru-14
MS-7576 Системная плата

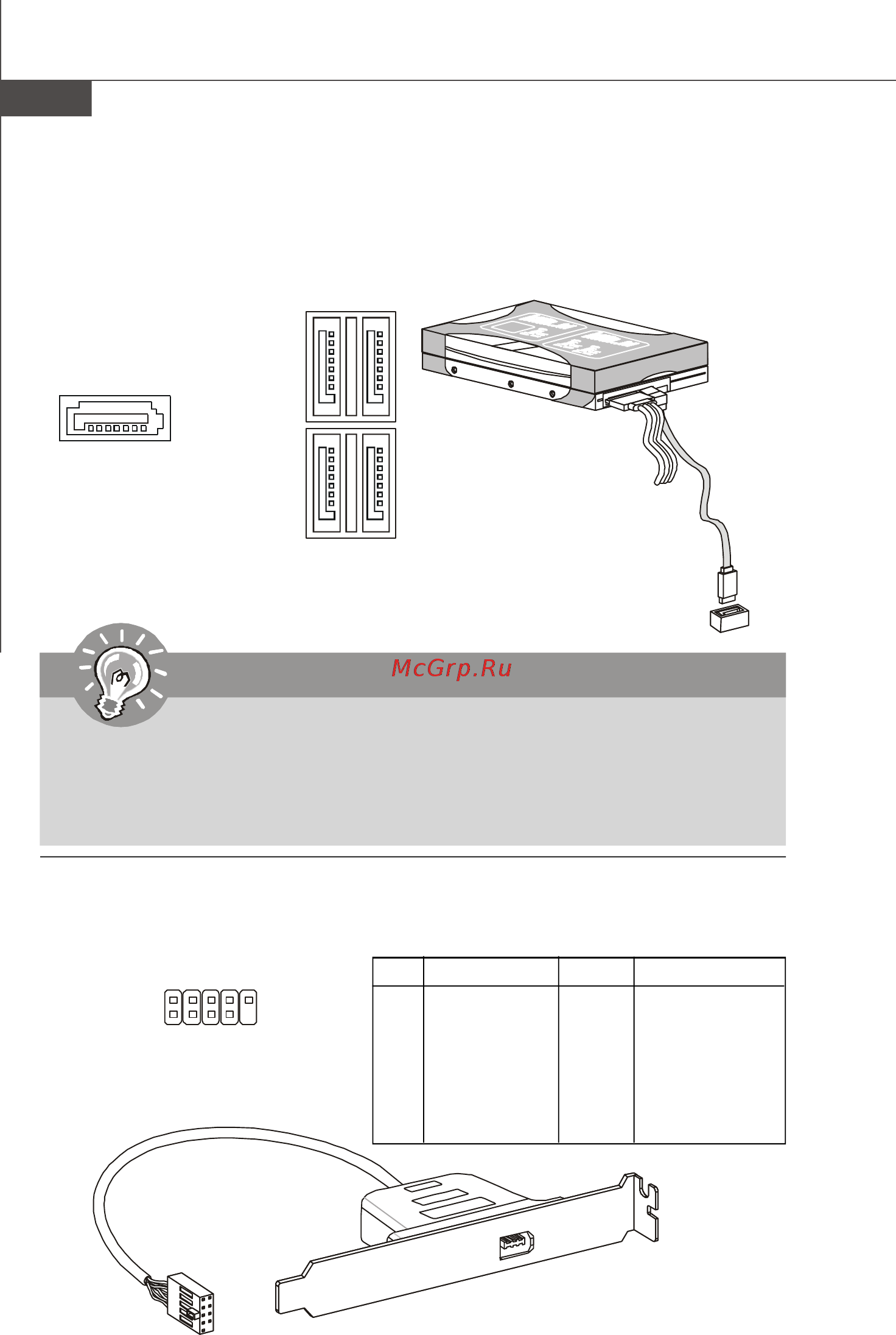

Разъем Serial ATA: SATA1~5
Данный разъем является высокоскоростным портом интерфейса Serial ATA.
Любой разъем Serial ATA может соединяться с одним устройством Serial ATA.
SATA4_5
SATA1
Внимание
1.SATA5 поддерживает только режимы RAID и AHCI (не поддерживает
режим IDE)
2. Избегайте, пожалуйста, резких изгибов кабеля Serial ATA. В
противном случае могут возникнуть потери данных при передаче.
SATA2_3
Разъем IEEE1394: J1394_1 (опционально)
Этот коннектор позволяет подключить порты IEEE1394 на выносной планке
IEEE1394.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
1
2
9
10
J1394_1
(опционально)
IEEE1394 Bracket (опционально)
