En-7
English

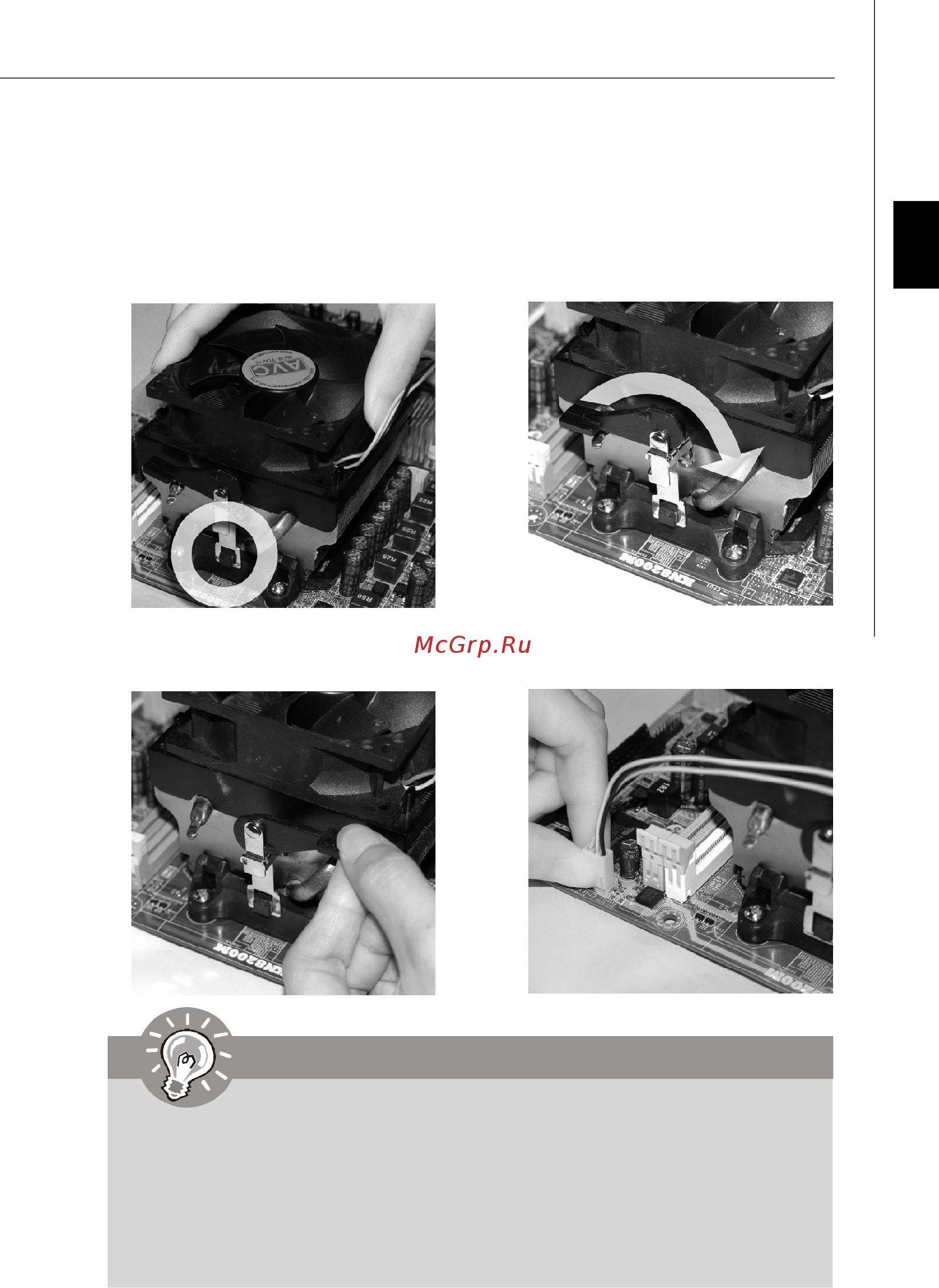

6. Then press down the other end of
the clip to fasten the cooling set on
the top of the retention mechanism.
Locate the Fix Lever and lift up it .
5.Position the cooling set onto the re-
tention mechanism.
Hook one end of the clip to hook first.
7.Fasten down the lever.
8.Attach the CPU Fan cable to the CPU
fan connector on the mainboard.
1.Mainboard photos shown in this section are for demonstration of the cooler
installation for Socket AM2+ CPUs only. The appearance of your mainboard
may vary depending on the model you purchase.
2.While disconnecting the Safety Hook from the fixed bolt, it is necessary to
keep an eye on your fingers, because once the Safety Hook is disconnected
from the fixed bolt, the fixed lever will spring back instantly.
Important
