MS-7576 Mainboard
De-22

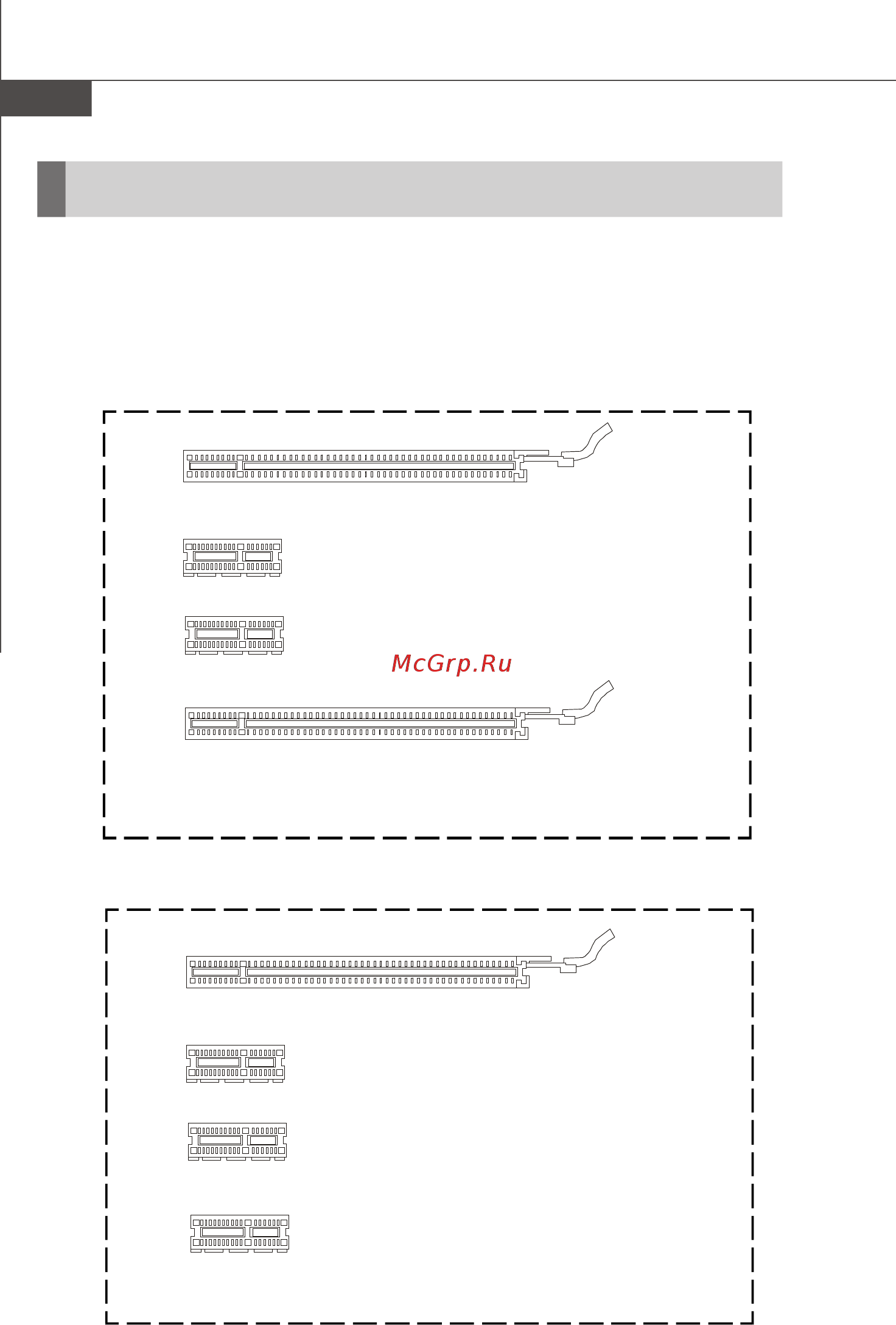

PCI (Peripheral Component Interconnect) Express-Steckplatz
Der PCI Express-Steckplatz unterstützt eine Erweiterungskarte mit der PCI Express-
Schnittstelle.
Der PCI Express x16-Steckplatz unterstützt eine Transferrate von bis zu 4.0 GB/s.
Der PCI Express x8-Steckplatz unterstützt eine Transferrate von bis zu 2.0 GB/s.
Der PCI Express x1-Steckplatz unterstützt eine Transferrate von bis zu 250 MB/s.
Steckplätze
PCI_E1 unterstützt eine Geschwindigkeit bis zu PCI Express x16.
Wenn zwei Grafikkarten aktiviert sind, wendet es an Geschwindigkeit.
PCI_E4 unterstützt eine Geschwindigkeit bis zu PCI Express x8.
PCI_E2 unterstützt eine Geschwindigkeit bis zu PCI Express x1.
PCI_E3 unterstützt eine Geschwindigkeit bis zu PCI Express x1.
PCI_E1 unterstützt eine Geschwindigkeit bis zu PCI Express x16.
PCI_E4 unterstützt eine Geschwindigkeit bis zu PCI Express x1.
PCI_E2 unterstützt eine Geschwindigkeit bis zu PCI Express x1.
PCI_E3 unterstützt eine Geschwindigkeit bis zu PCI Express x1.
Die Allokation des PCIE Steckplatz für dem790GX Chipsatz
Die Allokation des PCIE Steckplatz für dem 780G Chipsatz
