MS-7576 Mainboard
En-14

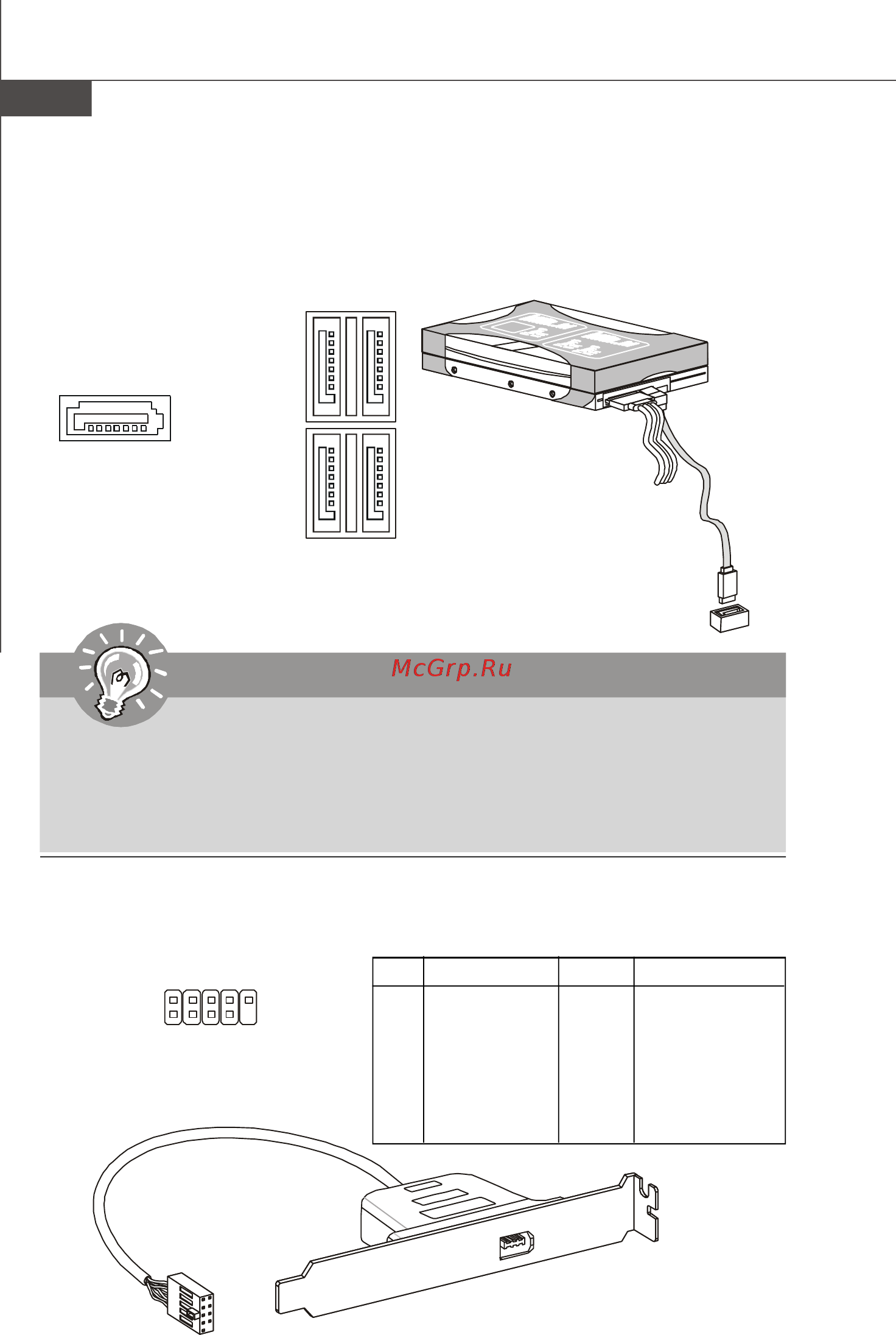

Serial ATA Connector: SATA1~5
This connector is a high-speed Serial ATA interface port. Each connector can con-
nect to one Serial ATA device.
SATA4_5
SATA1
Important
1.SATA5 only supports RAID and AHCI mode (does not support IDE mode)
2.Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
SATA2_3
IEEE1394 Connector: J1394_1 (Optional)
This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
IEEE1394 Bracket (Optional)
J1394_1
(optional)
1
2
9
10
