Important

-DDR3 memory modules are not interchangeable with DDR2 and the DDR3

standard is not backwards compatible. You should always install DDR3

memory modules in the DDR3 DIMM slots.

-In dual-channel mode, make sure that you install memory modules of the

same type and density in differentchannel DDR DIMMs.

-To enable successful system boot-up, always insert the memory modules

into the DIMM1 first.

Installing Memory Modules

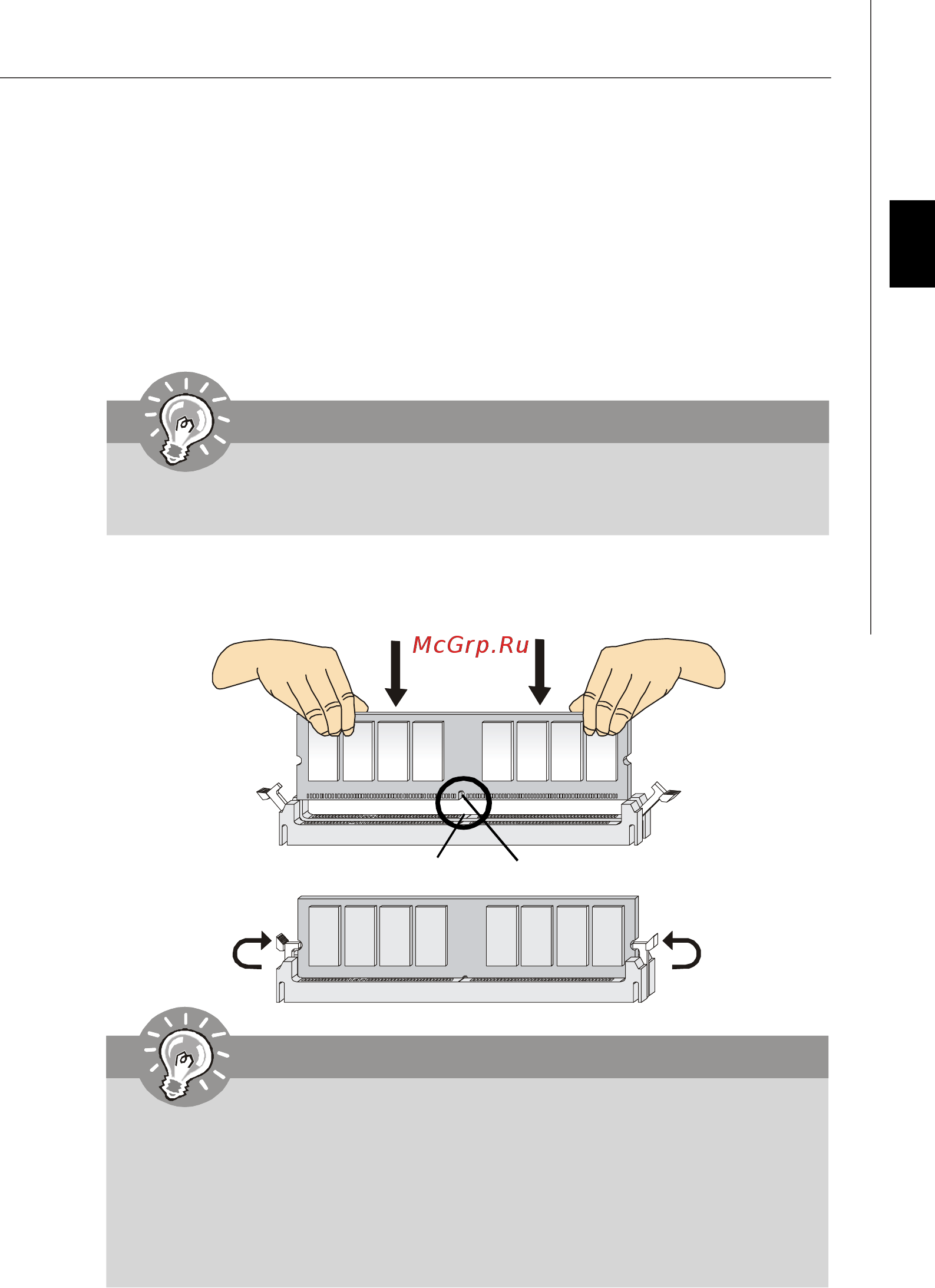

1. The memory module has only one notch on the center and will only fit in the right

orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the

golden finger on the memory module is deeply inserted in the DIMM slot. The plastic

clip at each side of the DIMM slot will automatically close when the memory module

is properly seated.

3. Manually check if the memory module has been locked in place by the DIMM slot

clips at the sides.

Important

You can barely see the golden finger if the memory module is properly inserted

in the DIMM slot.

Volt

Notch
