Ru-6
MS-7576 Системная плата
Установка процессора и вентилятора
Во избежание перегрева при работе обязательно установите вентилятор
процессора. Одновременно, чтобы увеличить теплорассеивание, убедитесь в
том, что нанесен слой теплопроводящей пасты на процессоре при установке
вентилятора.
Следуйте данным указаниям для правильной установки. Неправильная установка
приведет к повреждению процессора и системной платы.

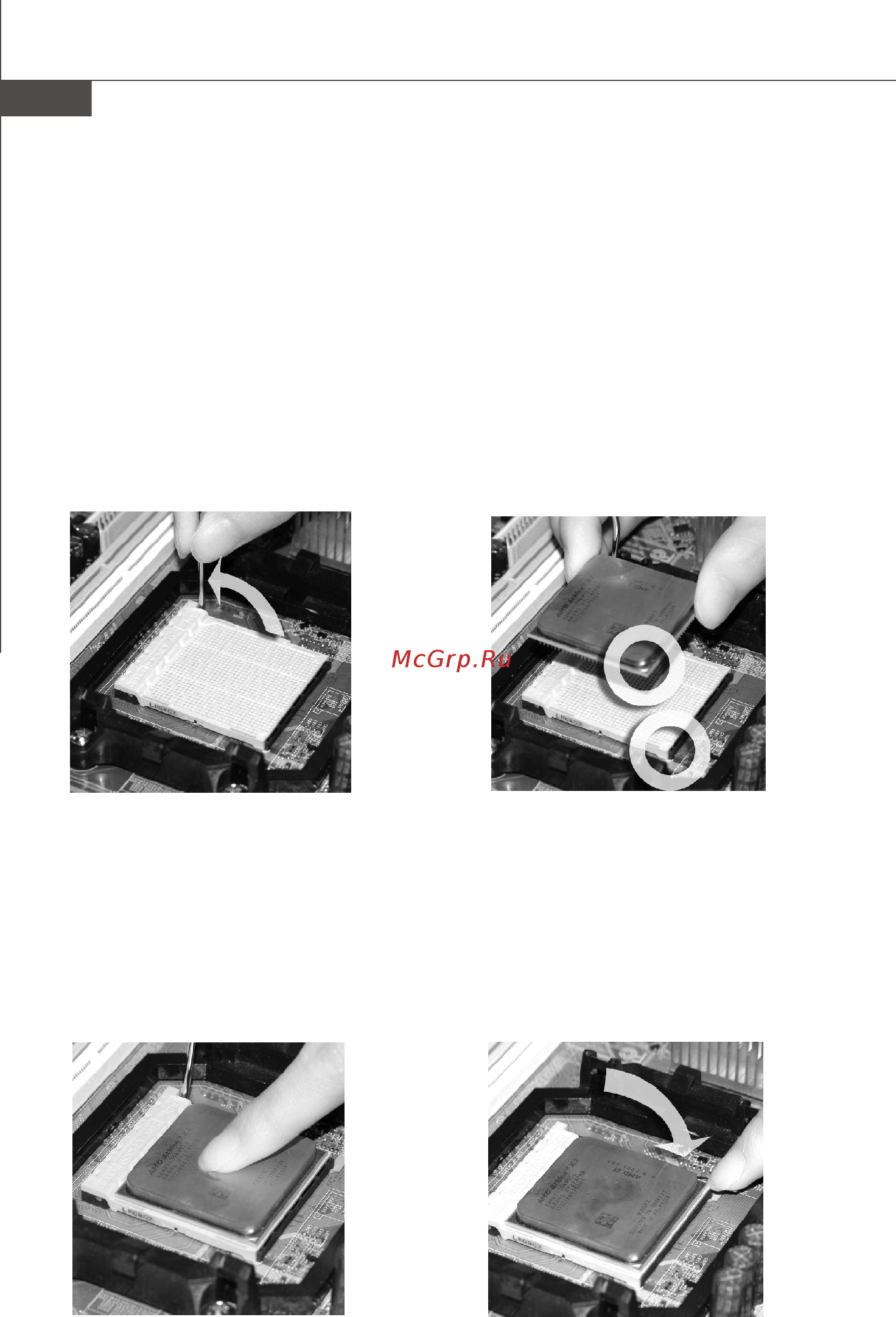

1. Поднимите в вертикальное
положение рычажок,
находящийся сбоку от разъема.
2. Обратите внимание на золотую
стрелку (gold arrow) на CPU. Она
должна быть расположена так,
как показано на рисунке. CPU
можно вставить только при его
правильной ориентации.
3. При правильной установке CPU
его контакты полностью войдут
в разъем, и их не будет видно.
Помните, что любое применение
силы при установке CPU может
вызвать серьёзные
повреждения системной платы.
4. Аккуратно прижмите CPU к
разъему и опустите рычажок.
Поскольку CPU при опускании
рычажка может переместиться,
осторожно прижмите CPU
пальцами в центре так, чтобы он
правильно и полностью
зафиксировался в разъеме.
