Ru-16
MS-7576 Системная плата

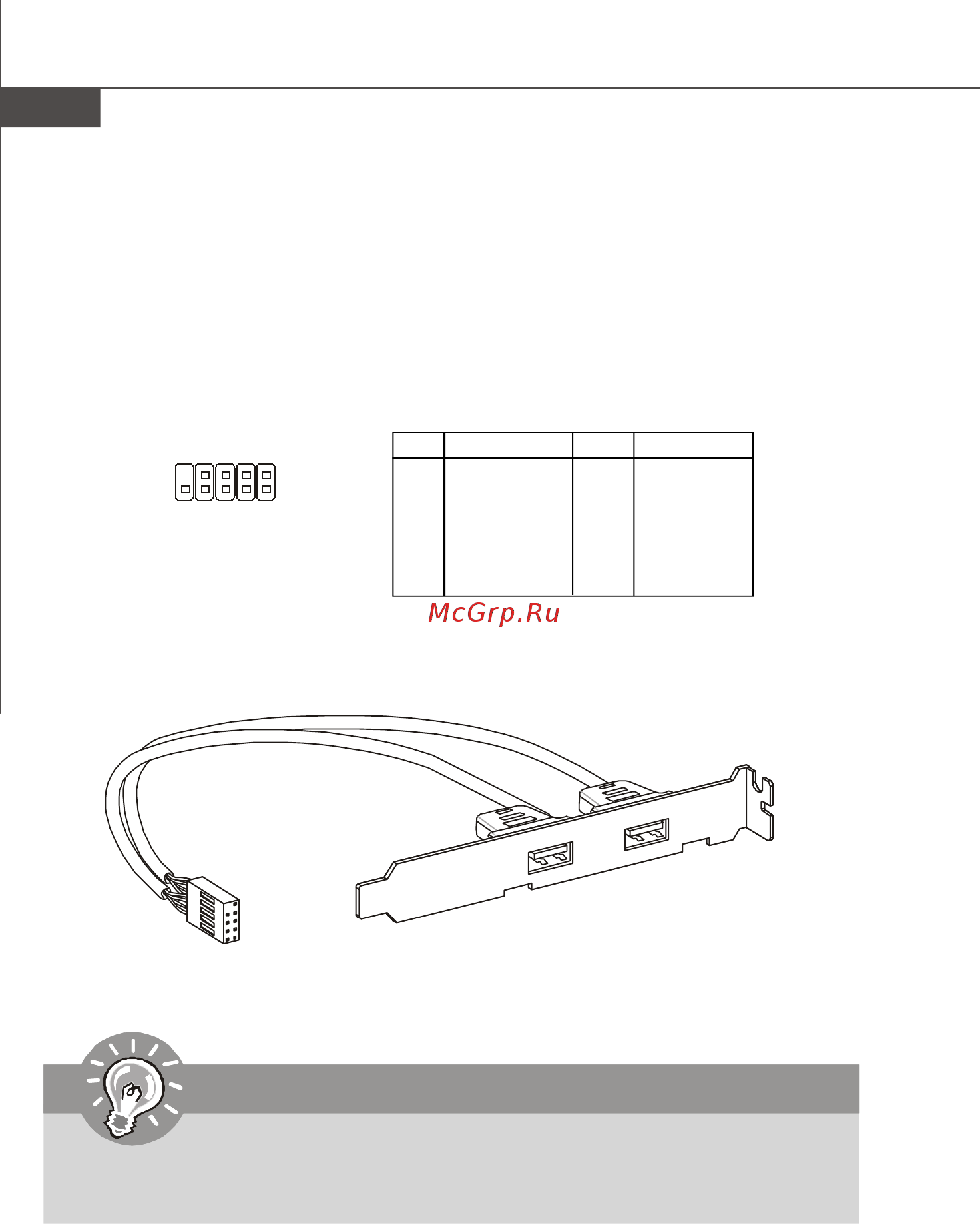

Разъем USB передней панели: JUSB1~3
Разъем, соответствует спецификации Intel
®
I/O Connectivity Design, идеально
подходит для подключения таких высокоскоростных периферийных устройств,
как USB HDD, цифровые камеры, MP3 плееры, принтеры, модемы и им
подобные.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
Pin Definition
Внимание
Помните, что во избежание повреждений, контакты VCC и GND должны
быть правильно подключены.
USB 2.0 Bracket
(опционально)
1
2
9
10
JUSB1~3
