Carte mère MS-7576
Fr-6
Installation du CPU et son ventilateur
Quand vous installez le CPU, veuillez vous assurer que l’unité centrale soit
équipée d’un ventilateur de refroidissement attaché sur le dessus pour
éviter la surchauffe. Méanmoins, n’oubliez pas d’appliquer une couche d’enduit
thermique sur le CPU avant d’installer le ventilateur pour une meilleure dissipation de
chaleur.
Suivez les instructions suivantes pour installer le CPU et son ventilateur correcement.
Une faute installation peut endommager votre CPU et votre carte mère.

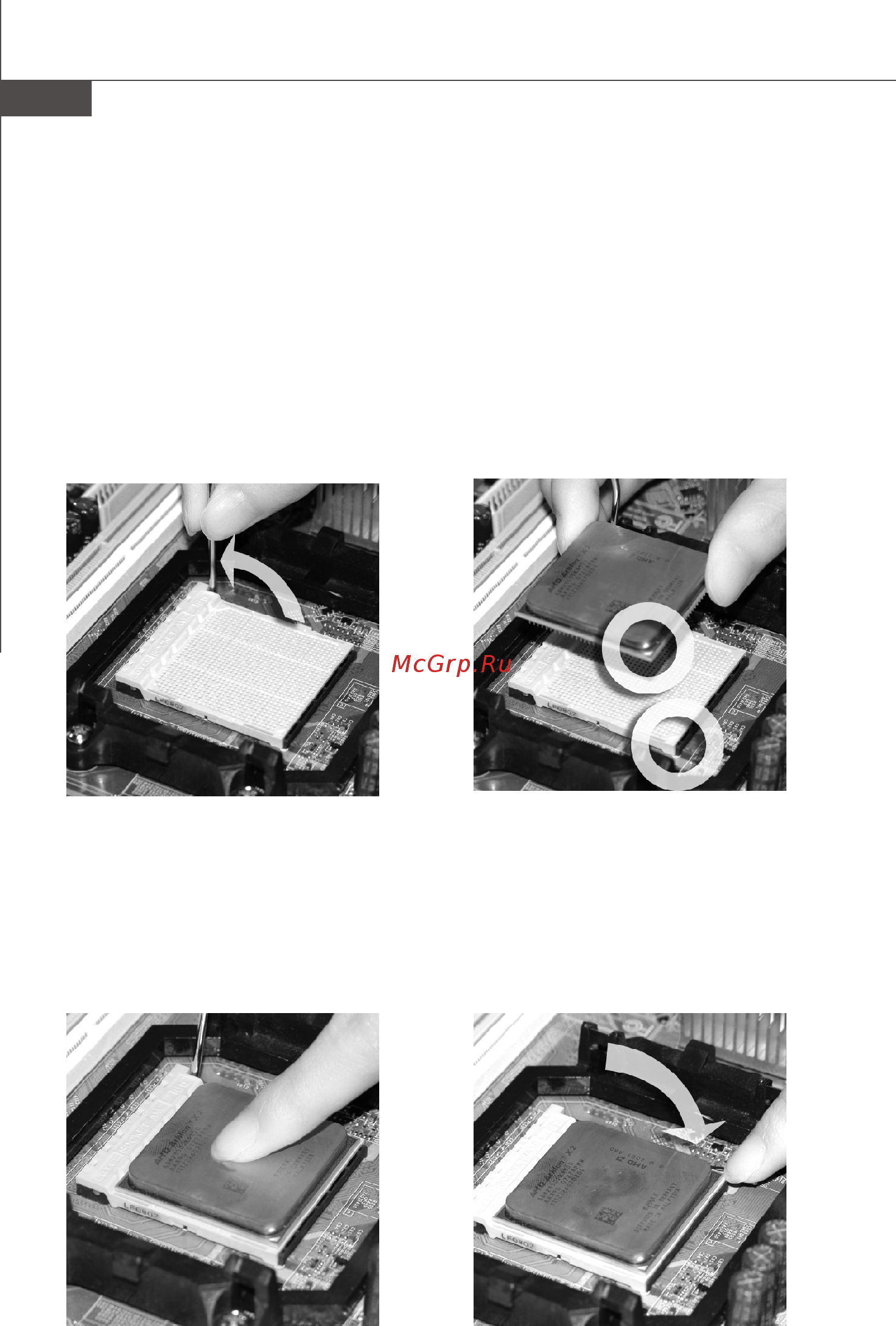

1.Enlevez le levier de côté de la douille
et assurez-vous de lever le levier
jusqu’à 90 degrés.
2.Trouvez la flèche d’or du CPU et
mettez-la comme montré dans
l’image. Le CPU ne s’installe que
dans la position correcte.
3.Si le CPU est correctement installé,
les pins sont intégrés complètement
dans la douille et invisibles. Veuillez
noter qu’une fausse installation peut
endommager votre carte mère.
4. Appuyez sur le CPU fermement dans
la douille et fermez le levier. Puisque
le CPU a une tendance de bouger
lors de la fermeture du levier, il faut
fermer le levier en appuyant sur le
CPU pour qu’il soit complètement et
correctement installé dans la douille.
