De-19
Deutsch

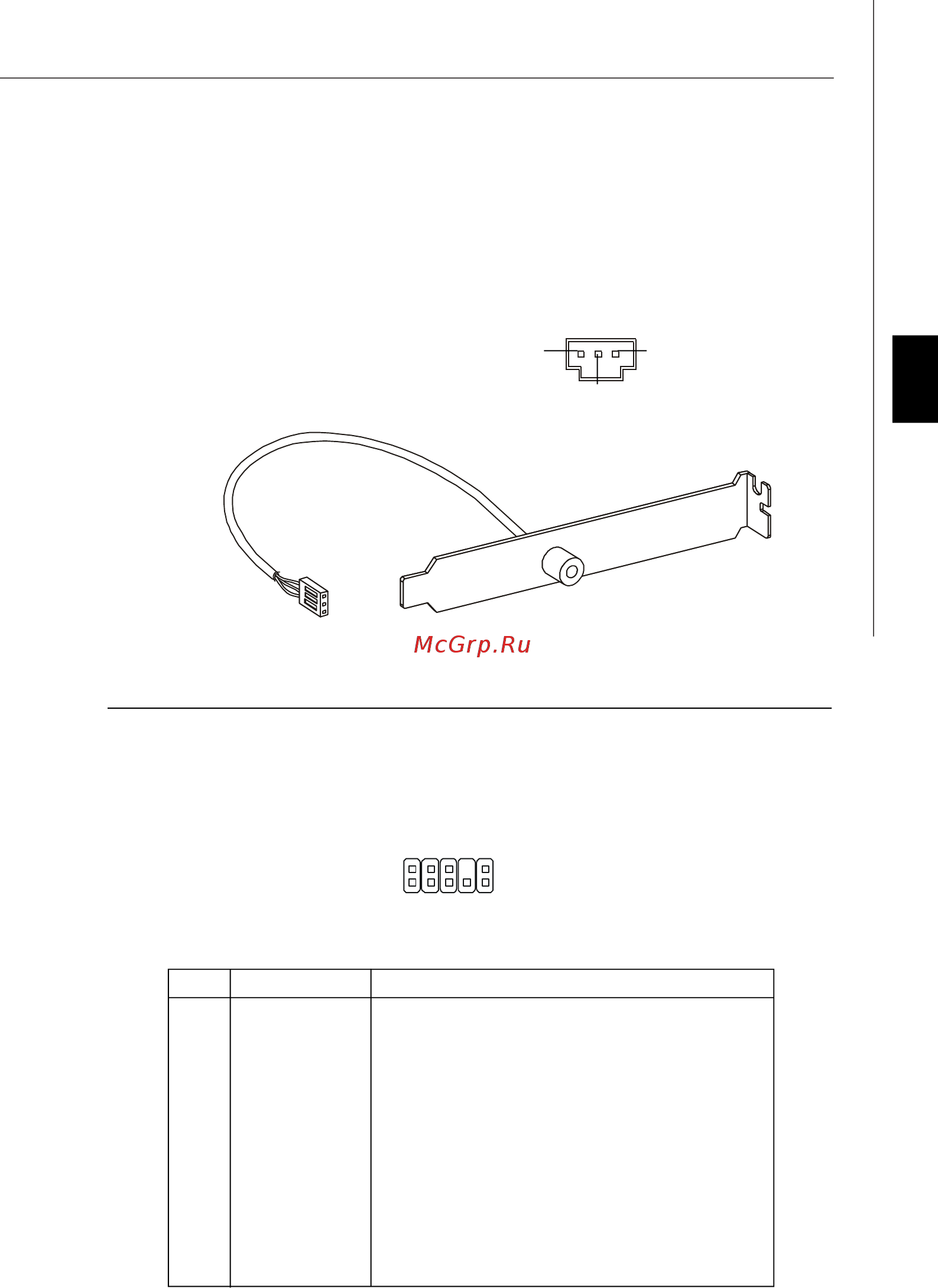

S/PDIF Slotblech (Optional)
S/PDIF-Ausgang: JSP1
Dieser Anschluss dient zum Anschliessen einer SPDIF (Sony & Philips Digital Inter-
connect Format) Schnittstelle zur digitalen Übertragung von Audiodaten.
Audioanschluss des Frontpanels: JAUD1
Dieser Anschluss ermöglicht den Anschluss von Audioein und -ausgängen eines
Frontpanels. Der Anschluss entspricht den Richtlinien des “ Intel
®
Front Panel I/O
Connectivity Design Guide”.
JAUD1
1
2
9
10
PIN SIGNAL DESCRIPTION
1 MIC_L Microphone - Left channel
2 GND Ground
3 MIC_R Microphone - Right channel
4 PRESENCE# Active low signal-signals BIOS that a High Definition Audio dongle
is connected to the analog header. PRESENCE# = 0 when a
High Definition Audio dongle is connected
5 LINE out_R Analog Port - Right channel
6 MIC_JD Jack detection return from front panel microphone JACK1
7 Front_JD Jack detection sense line from the High Definition Audio CODEC
jack detection resistor network
8 NC No control
9 LINE out_L Analog Port - Left channel
10 LINEout_JD Jack detection return from front panel JACK2
Polzuweisung für HD-Audio
JSP1
VCC
SPDIF
GND
PDF created with pdfFactory trial version www.pdffactory.com
