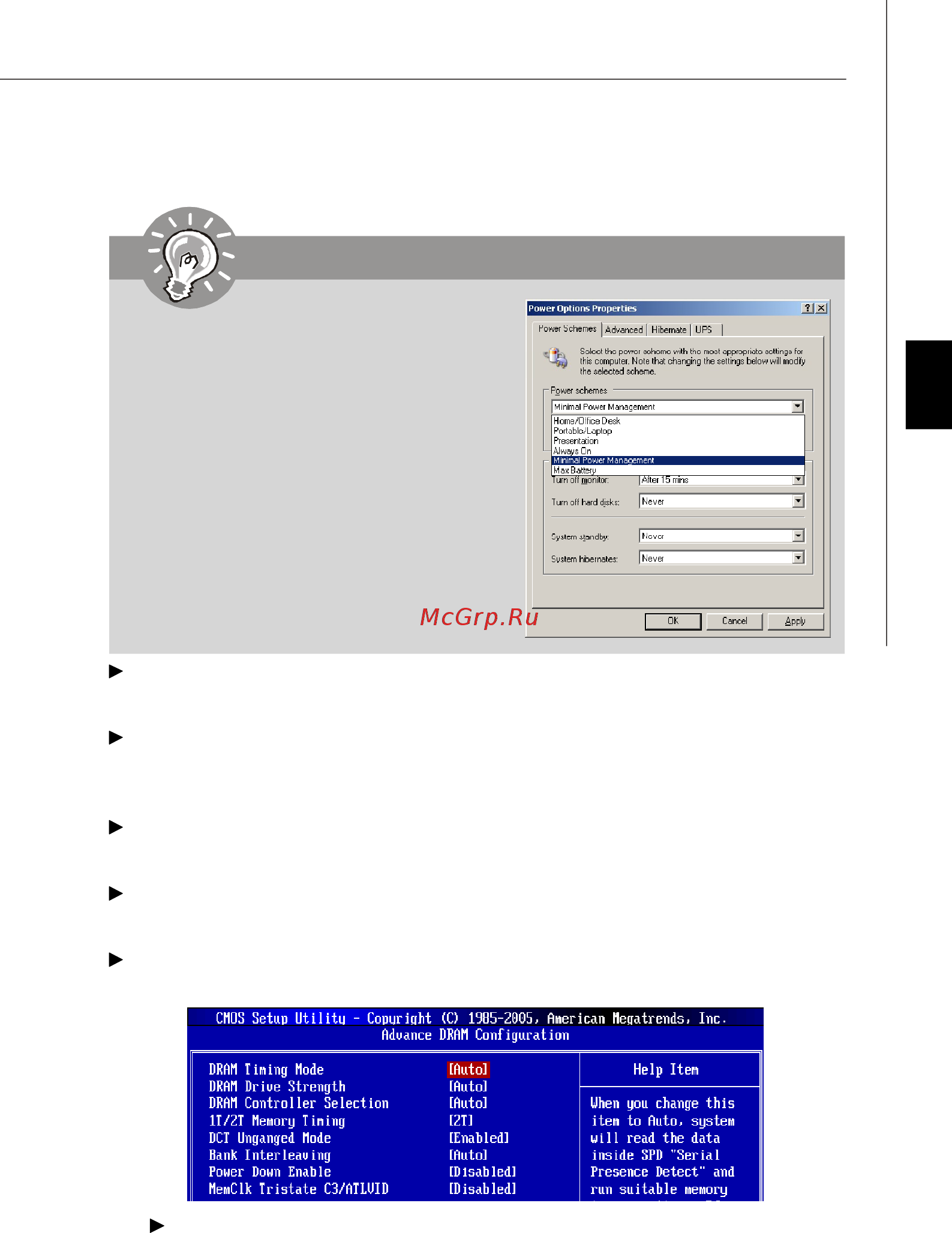

De-33
Deutsch
Adjust CPU FSB Frequency (MHz)
Hier können Sie die CPU FSB Frequenz angeben.
Adjust CPU Ratio
Hier können Sie die CPU -Taktmultiplikator (Ratio) angeben. Dies können Sie nur
benutzen, wenn der Prozessor die Funktion unterstützt.
Adjust CPU-NB Ratio
Hier können Sie die CPU-NB -Taktmultiplikator (Ratio) angeben.
Adjusted CPU Frequency (MHz)
Zeigt die verstellte Frequenz der CPU (FSB x Ratio). Nur Anzeige.
Advance DRAM Configuration
Drücken Sie die Eingabetaste <Enter>, um das folgende Untermenü aufzurufen.
DRAM Timing Mode
Dieses kann alles DRAM Timing automatisch auffangen. Wenn DRAM Timing auf
[DCT 0], [DCT 1] oder [Both] ([beide]) einstellt, fängt einiges erscheint und
auswählbar auf. DCT 0 steuert Kanal A und DCT1 steuert Kanal B.
Für eine einwandfreie Funktion von
Cool’n’Quiet muss folgende
Vorgehensweise unbedingt
sichergestellt werden:
1.BIOS Setup ausführen und wählen Cell
Menu aus. Unter Cell Menu setzen Sie
Cool’n’Quiet auf [Enabled].
2. Öffnen Sie Windows und wählen Sie
[Start]-> [Einstellungen]->
[Systemsteuerung]->[Energieoptionen].
Gehen Sie zu Eigenschaften von
Energieoptionen und wählen Sie
Minimaler Energieverbrauch unter
Energieschemas.
Wichtig
PDF created with pdfFactory trial version www.pdffactory.com
