Carte mère MS-7576
Fr-24
Choisissez le View
avancé du menu
de navigation de
view.
3.Quand le matériel et le logiciel sont tous correctement installés, réinitialisez le système.

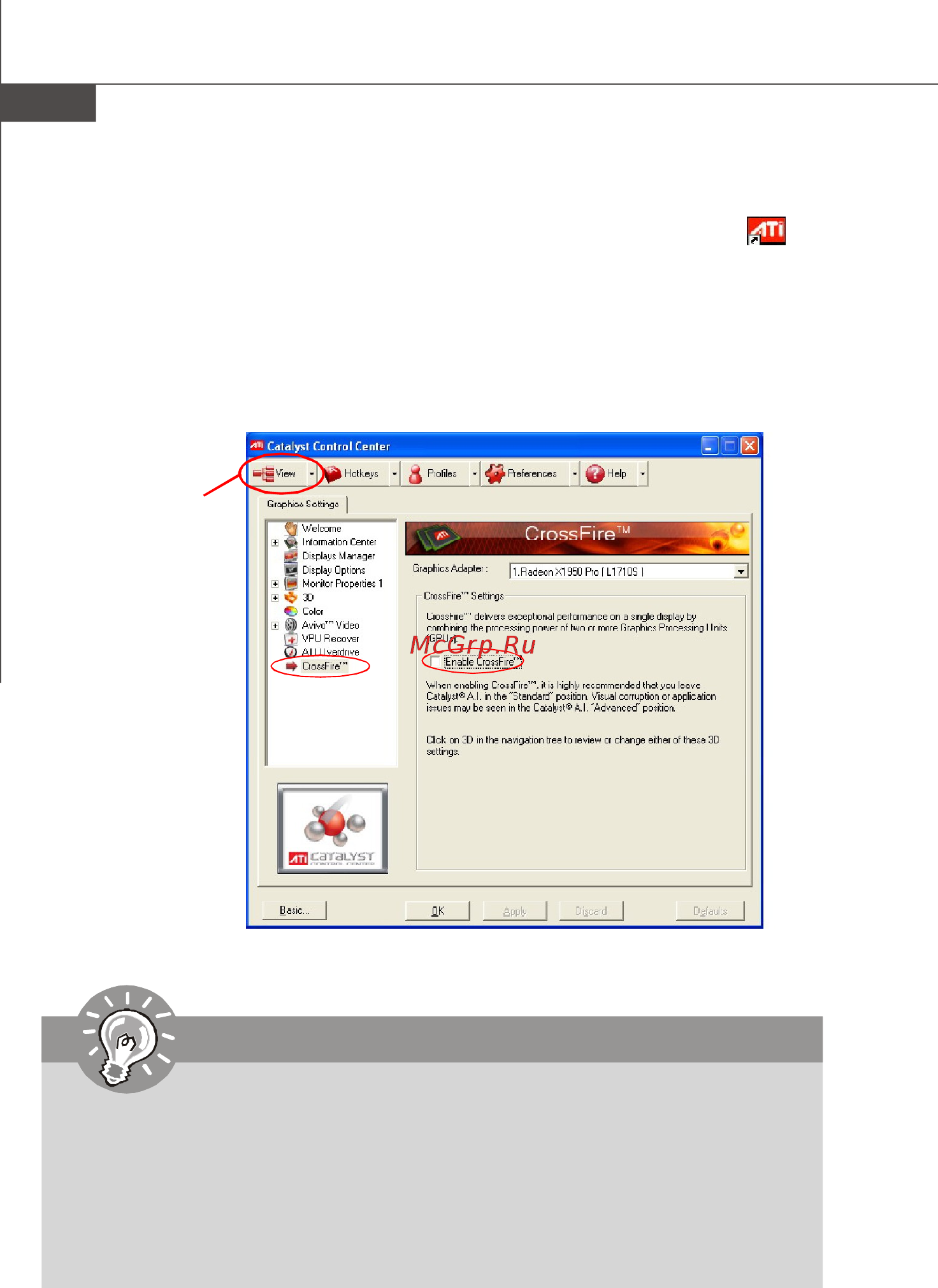

Après entrer dans le O.S., cliquez sur l’icône de “Catalyst™ Control Center” sur
le bureau. Il y a un réglage dans le Catalyst™ Control Center qui doit être activé
pour que le CrossFireX™ puisse s’opérer. L’aspect suivant apparaît dans le Cata-
lyst™ Control Center :
Important
Un système CrossFireX™ a quatre modes d’affichage possibles :
• SuperTiling
• Scissor Mode
• Alternate Frame Rendering
• Super Anti-aliasing.
Pour plus de détails, veuillez consulter le manuel de la carte graphique au
fabricant.
