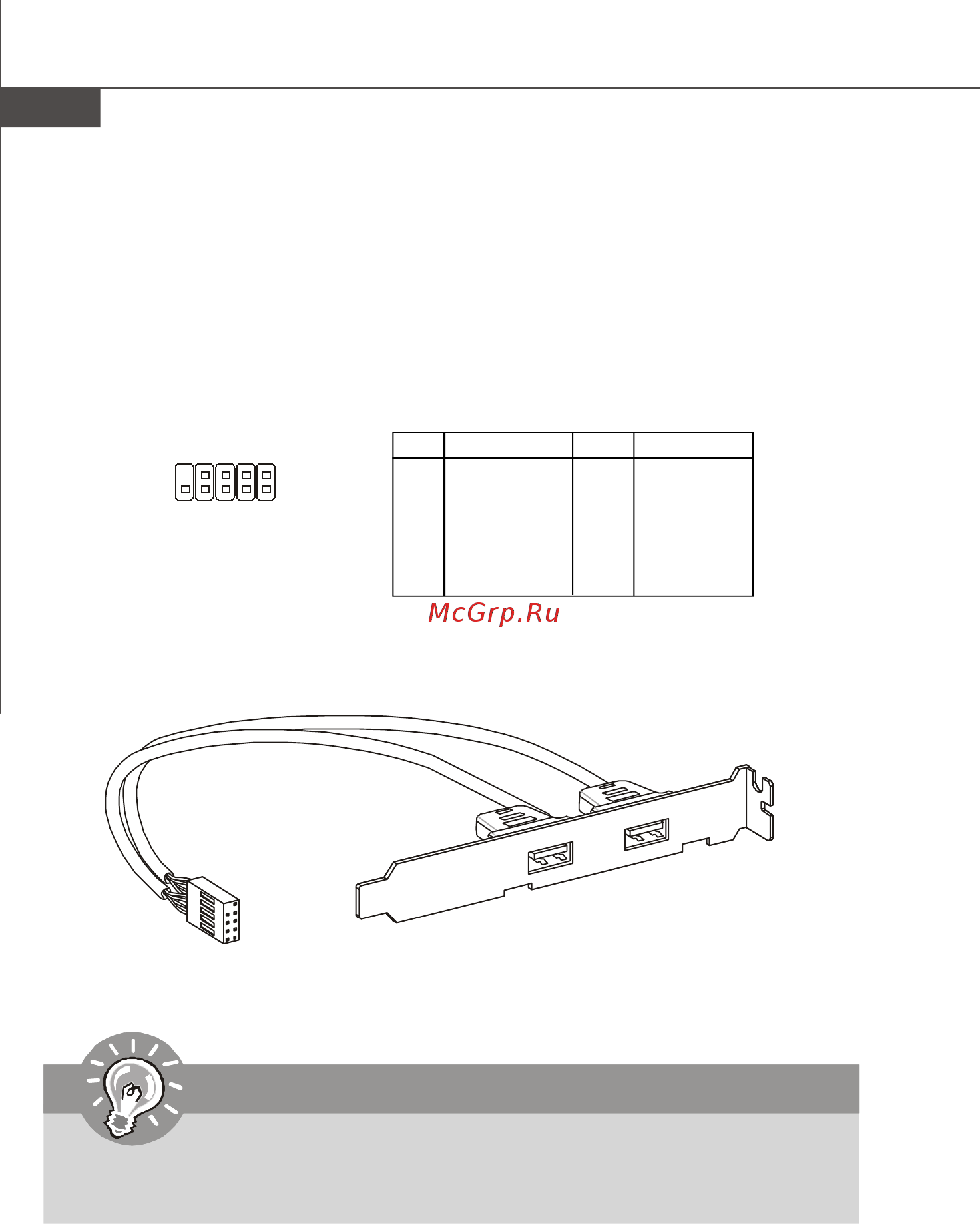

Carte mère MS-7576
Fr-16
Connecteur USB avant : JUSB1~3
Ce connecteur est conforme au guide de conception de la connectivité Entrée/sortie
du panneau avant Intel
®
, il est idéal pour relier les périphériques d’interface USB à
haut débit tels les disques durs externes, les appareils photo numériques,
les lecteurs MP3, les imprimantes, les modems et les appareils similaires.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
Définition de pins
Important
Notez que les pins de VCC (Connexion de voie virtuelle) et GND (terre)
doivent être branchées correctement afin d’éviter tout dommage possible.
Support USB 2.0
(optionnel)
1
2
9
10
JUSB1~3
