De-7
Deutsch

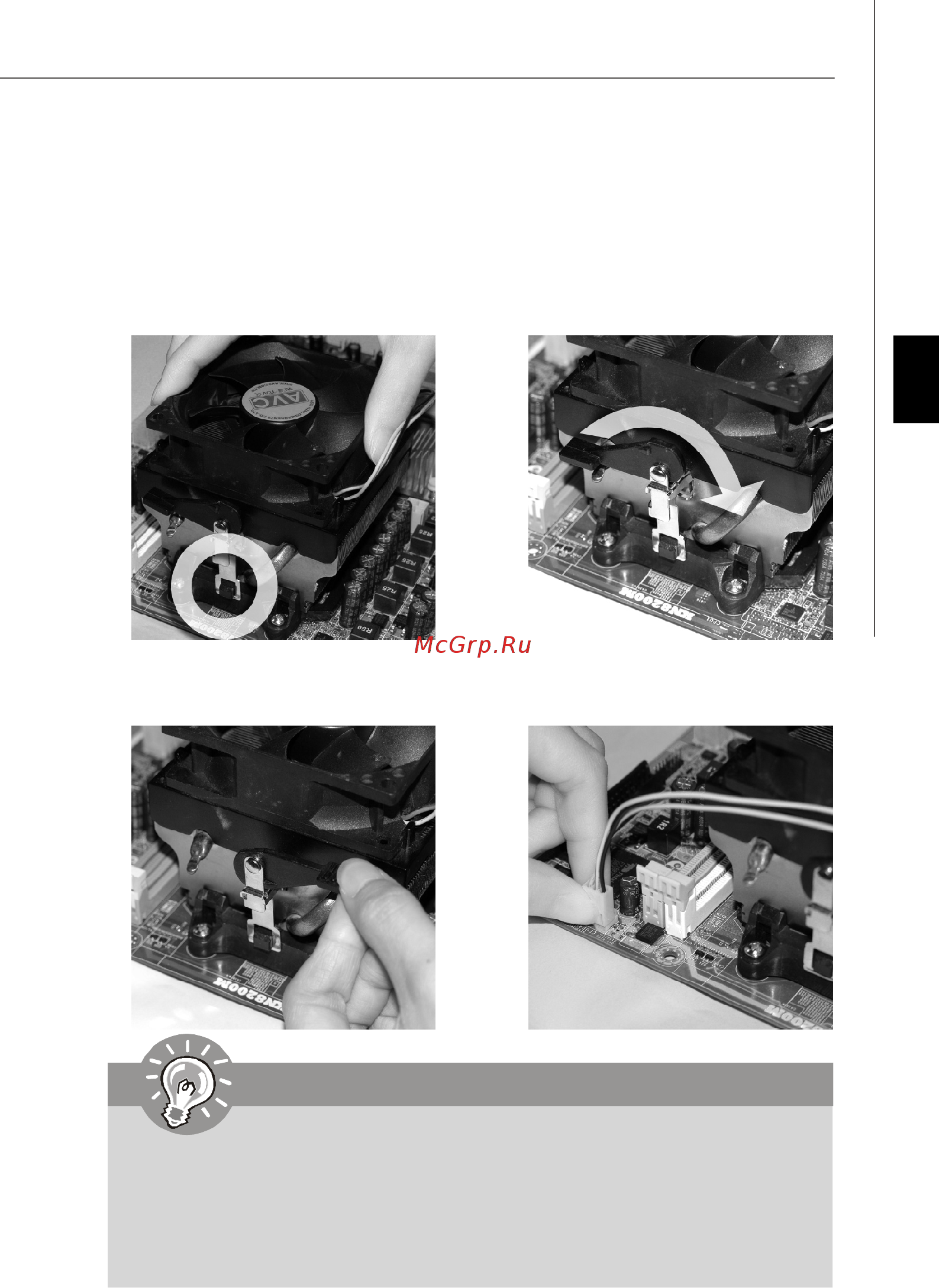

6. Dann drücken Sie das andere Ende
des Bügels herunter, um das
K ü hlerset auf dem
Rückhaltemechanismus zu
befestigen.Machen Sie den
Sicherungshebel ausfindig und
heben Sie es.
5.Setzen Sie das Kühlerset auf den
Rückhaltemechanismus.
Haken Sie zuerst ein Ende des
Haltebügels ein.
7.Drücken Sie den Sicherungshebel
herab.
8.Verbinden Sie das Stromkabel des
CPU Lüfters mit dem Anschluss auf
dem Mainboard.
1.Die Mainboard Fotos, die in diesem Abschnitt gezeigt werden, sind für
Demonstration der CPU/ Kühler Installation. Das Aussehen Ihres Mainboard
kann abhängig von dem Modell schwanken, das Sie kaufen.
2.Es besteht Verletzungsgefahr, wenn Sie den Sicherungs-haken vom
Sicherungsbolzen trennen. Sobald der Sicher-ungshaken gelöst wird,
schnellt der Sicherungshaken sofort zurück.
Wichtig
