102
Capturing an image
Saving the camera images in album
3 Click [OK].

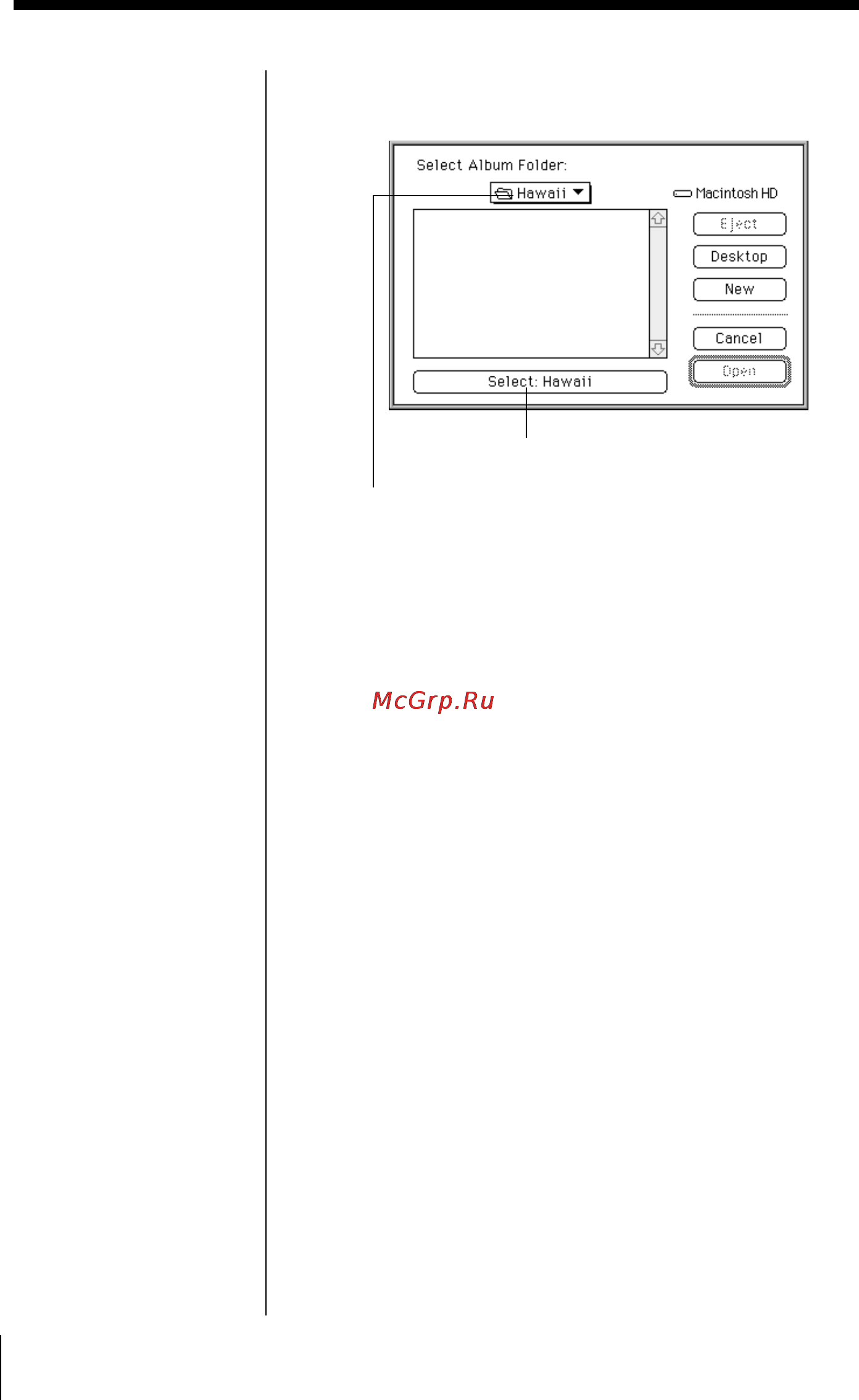

The following window appears.
Saving in a different
drive
Click [Desktop] to display
the available drives in the
list, from which you can
select the desired drive.
Creating a new album
folder
Click [New]. The dialog
to define a new album
folder name appears.
Type the new folder name
and click [Create].
The destination folder where the camera
images are to be saved.
When you click [New], a new folder is created under this
folder.
4 Select the destination album folder and click
[Select].
The selected camera images are saved in the
destination album folder with a file name
“IMAGE
***
” (
***
: serial number).
Stopping saving midway
Press the [] and [.] keys together.
