Sony Cyber-Shot DSC-F1 [6/128] Getting started

The items used in this product are supplied in the

Digital Still Camera DSC-F1 package together with the

other supplied accessories. Unpack the package and

pick up the following items:

Getting started

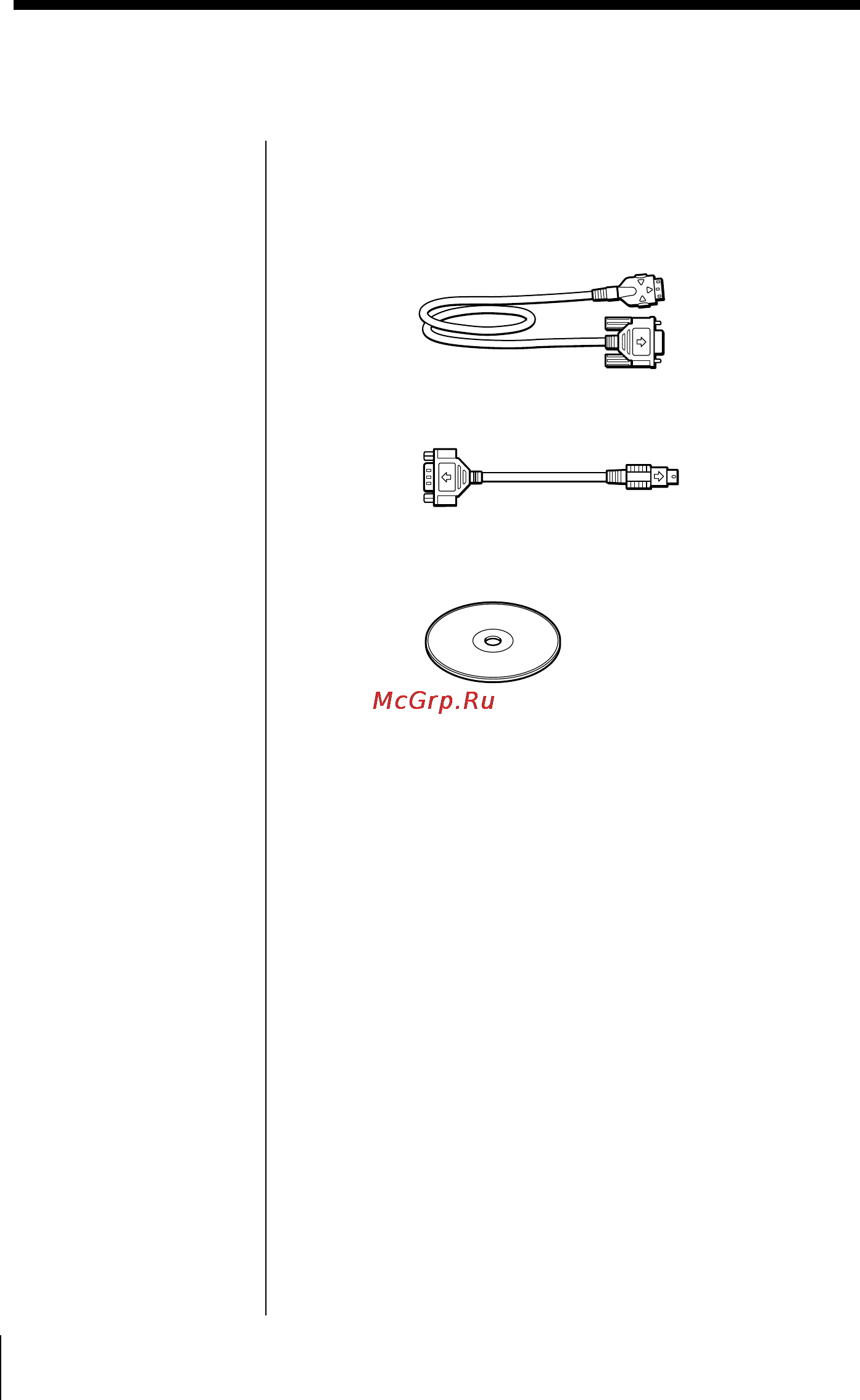

Connecting cable (1)

Cable adapter for Macintosh (1)

Hybrid CD-ROM for IBM PC/AT compatible

PC and Macintosh (1)

Operating instructions for PC Connecting Kit

(1)

Registration card (1)
