Sony Cyber-Shot DSC-F1 [110/128] Opening an album of the hard disk

110

Capturing an image

Opening an album of the hard disk

4 Select [Open Selected Image] in the File menu or

double-click the image.

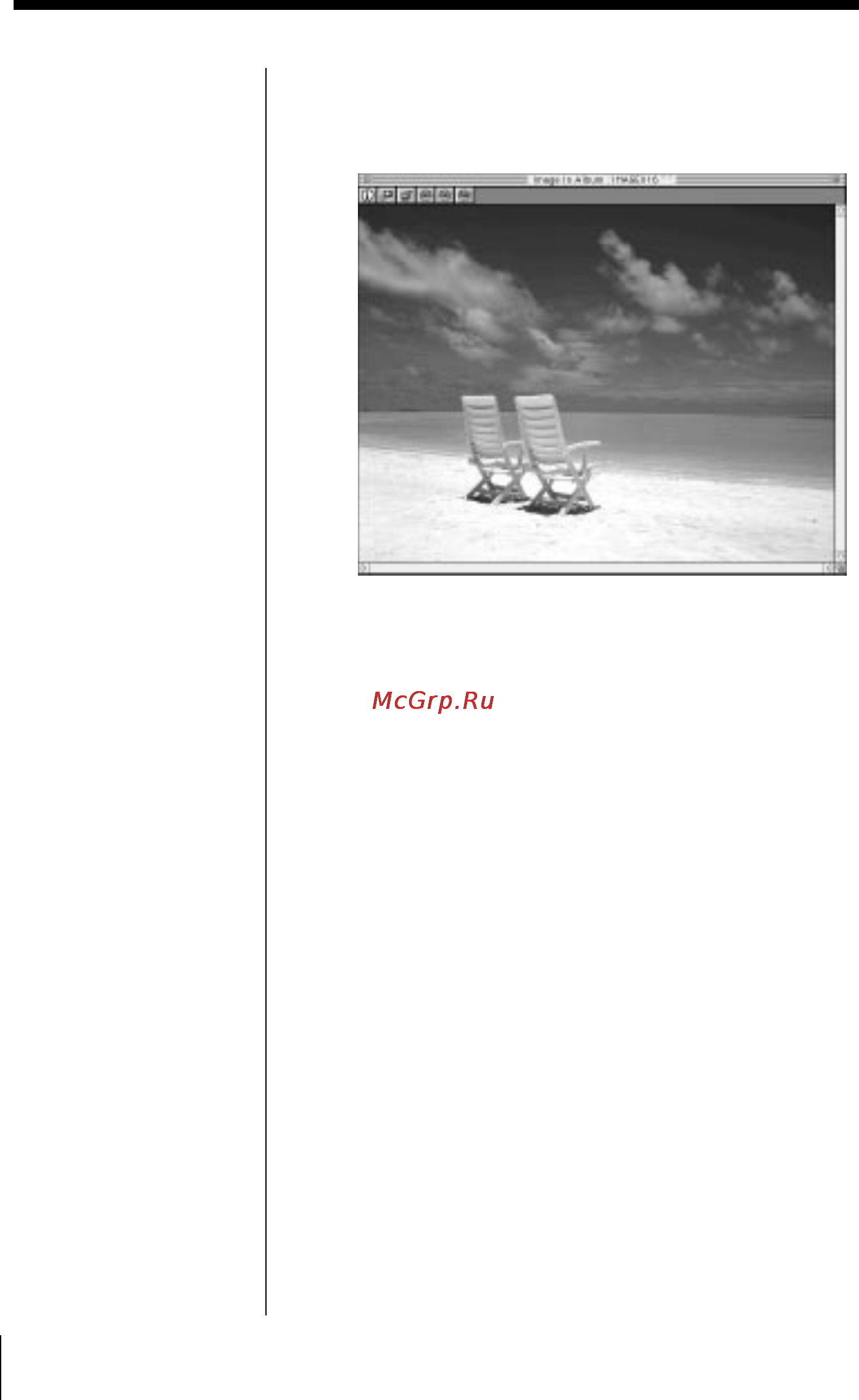

The selected images are displayed in full size.

Closing an image

Click [Close] in the File menu.
