84
Setting up
Notes
• Turn off the power on
your computer and
Digital Still Camera
before connection.
• Do not turn off the
power of the camera
nor disconnect the cable
during transmitting the
data, which may cause a
transmission failure.
• Use only the supplied
connecting cable. Other
brands of cables may
cause malfunctions.
• The connecting cable
supplied is for the Sony
Digital Still Camera
DSC-F1 only. It cannot
be used to connect other
cameras.
• Insert the connecting
cable carefully into the
port, making sure that
the port goes in straight
and is firmly seated.
When inserting the
cable into the Digital
I/O port of the Digital
Still Camera, match the
¢ mark of the cable
with that of the port.
• Keep metal objects
away from the
connector pins to avoid
short circuits.
• We suggest you use the
Digital Still Camera
with the AC power
adapter.
• Also refer to the
instructions manual of
your Macintosh.
Step 2: Connecting the Digital Still
Camera
Use the supplied connecting cable to the modem/
printer port via the cable adapter to the DIGITAL
I/O port on the Digital Still Camera DSC-F1. For a
Macintosh with the built-in modem, use the printer
port.
To resume data transmission
In case the data transmission is interrupted (and the
Digital Still Camera becomes disabled), resume the
transmission as follows :
1 Close all the windows of “Sony Digital Still
Camera Album Utility” being displayed on the
Macintosh monitor.
2 Turn the POWER/Function dial of the Digital Still
Camera to “OFF.”
3 Turn the POWER/Function dial to “PLAY.”
4 Transmit the data again.

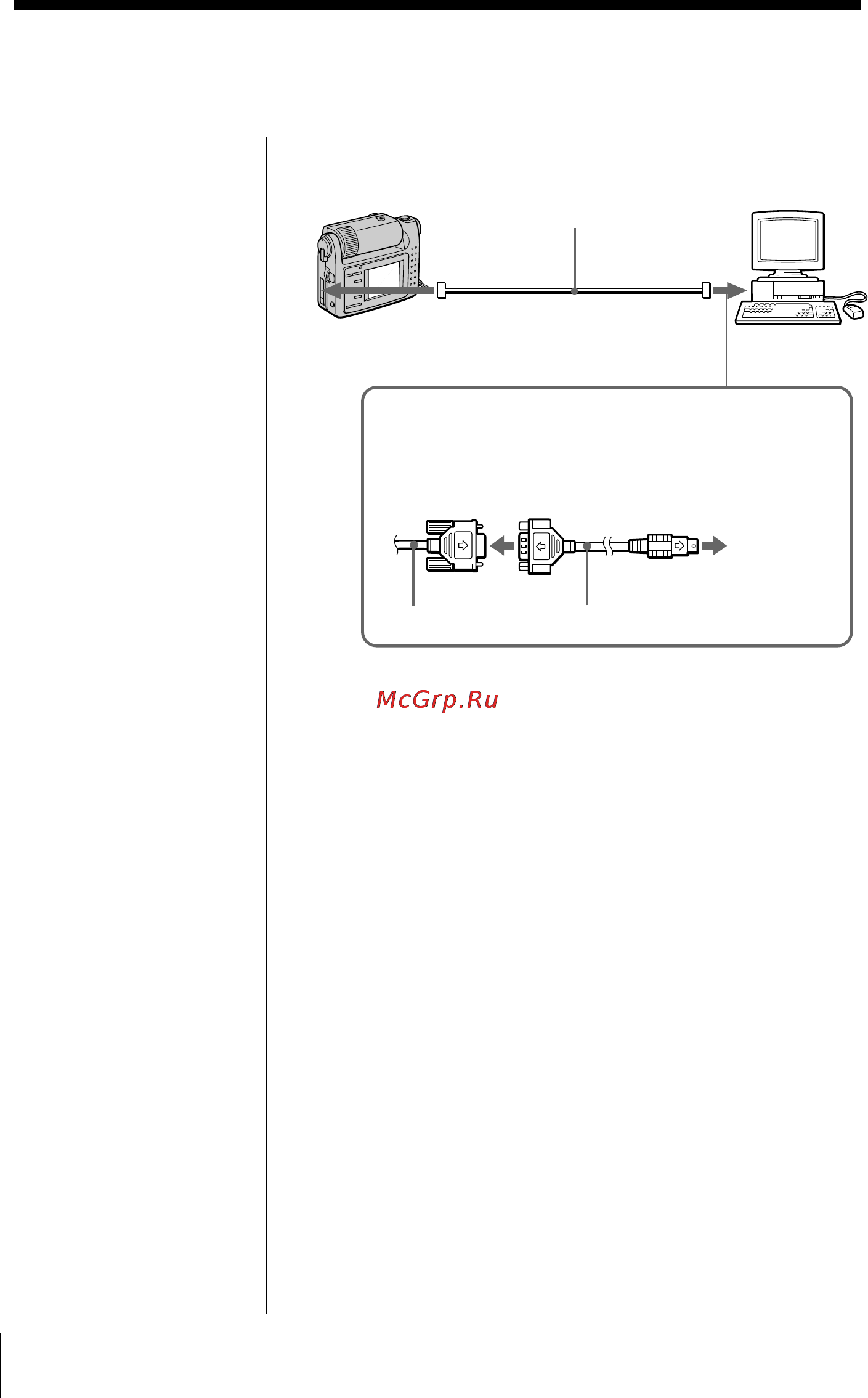

Your Macintosh
Connecting cable
(supplied)
to DIGITAL
I/O port
to the
modem or
printer port
Digital Still
Camera
DSC-F1
Connect the connecting cable to the cable
adapter (supplied) and then to the
modem or printer port.
Connecting cable Cable adapter
