93Capturing an image
Capturing an image
Customizing the menu
Assigning a special
operational purpose to a
menu is called
“Customizing.” In the
“Sony Digital Still
Camera Album Utility,”
you can customize the
two menu items–“Open
Camera's Image” and
“Save Camera's Image” –
by specializing the
images to be opened and
saved.

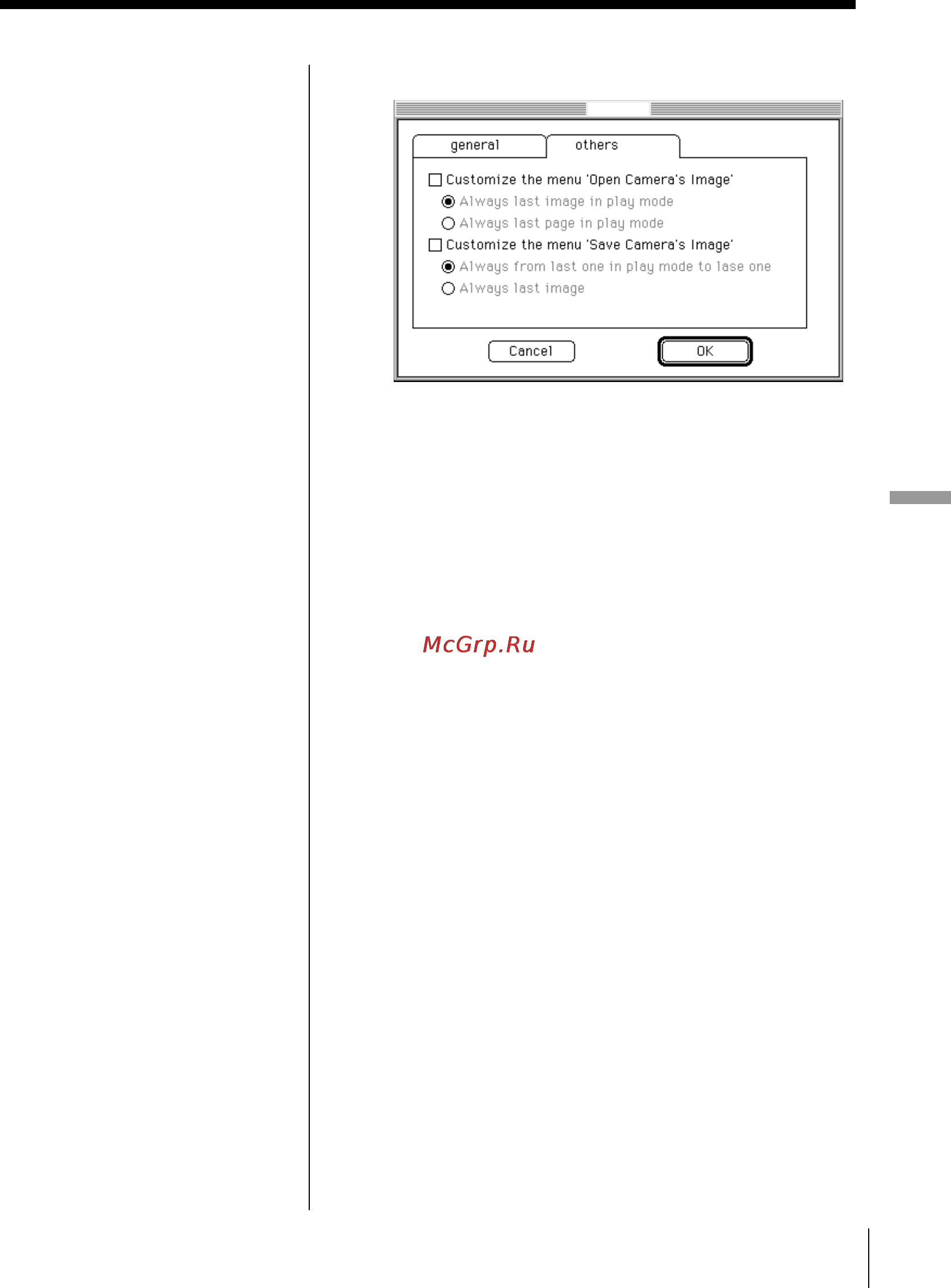

3 Click the [others] tab to set the following:
π Customise the menu 'Open Camera's Image'
When this option is checked, the dialog box
specifying the images to be opened with the
[Open Camera's Image] menu will not appear.
Select the images to be always opened among the
two image options.
π Customise the menu 'Save Camera's Image'
When this option is checked, the dialog box
specifying the images to be saved with the [Save
Camera's Image] menu will not appear. Select the
images to be always saved among the two image
options.
4 Click [OK] to close the preferences window.
Preferences
