Sony Cyber-Shot DSC-F1 [108/128] Saving the camera images as another file type

108

Capturing an image

Saving the camera images as another file type

Saving in JPEG file type

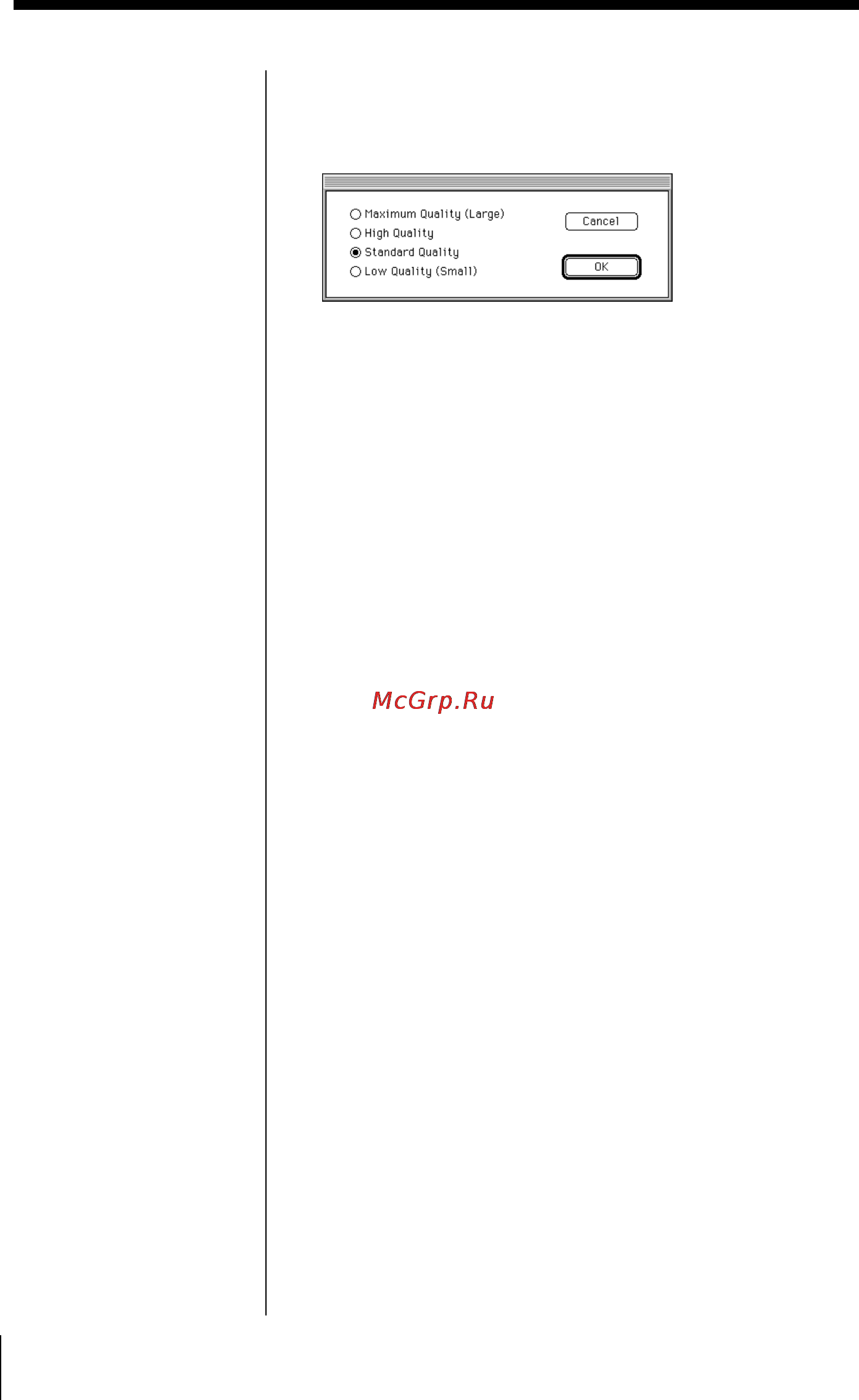

When you select [JPEG] file type, the window to

define the image quality (compression ratio) appears.

Usually, the higher image quality you select, the larger

file size with the lower compression ratio you get.

Select the image quality option and click [OK].
